Product Details:
|
| Product Name: | Fiberglass Texturized Yarn (fiberglass Bulked Yarn) | Weight: | 810g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Material: | 100% E Fiberglass |
| Good Features: | High Temperature Resistance,low Thermal Conductivity | Color: | White |
| Main Application: | Thermal Insulation And Heat Protection | Yarn Density: | 6x3.8 Ends/cm |
| Highlight: | E Glass Texturized Fiberglass Cloth,Plain Weave Texturized Fiberglass Fabric,M30 Texturized Fiberglass Cloth |
||
E-glass M30 Texturized Fiberglass Fabric With Plain Weave Structure
Fiberglass Description
Fiberglass is a lightweight, versatile, and cost-effective material used in an endless variety of industrial and commercial products. Since it is made from glass, it is naturally resistant to heat, fire, water, chemicals, pests, and bacteria. It is lighter and more flexible than other types of mesh products such as steel, but still retains high tensile strength, which means it can hold up under pressure without breaking. In fabric form, fiberglass has the added benefit of conforming to odd-shaped angles and curves, such as those found on a surfboard or a snowmobile. In these applications, the fiberglass fabric provides a framework to which a liquid resin is bonded, providing strength, form, and durability to the end product.
Technique Data Sheets
| Product Name | M30 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 810gsm | ||
| Yarn Density Treads/cm | Warp Density | 6 | |
| Weft Density | 3.8 | ||
| Yarn Type | Warp | ET9-816 T 860 | |
| Weft | ET9-1224 T 1250 | ||
| Color | Light Yellow | ||
Main Application
1. High performance in chemical
2. Lightweight and high strength
3. Plain weave, even thickness, and low fuzz
4. Fire resistance and heat resistance
5. Easily impregnated with resin and silicone rubber
6. E-glass Fabric has an excellent electricity insulation property
Features
Insulation board
Fire prevention cloth
Reinforce plastics and composites
Aircraft, automobiles
Boat, surfboard building
Bathtubs and enclosures, hot tubs building
Water tanks, swimming pools
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

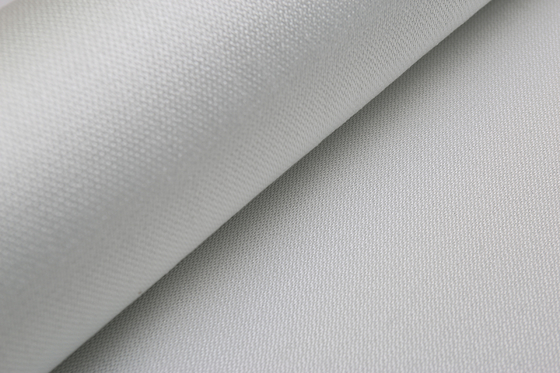

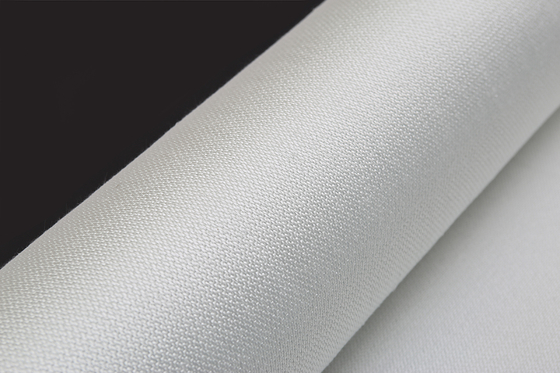

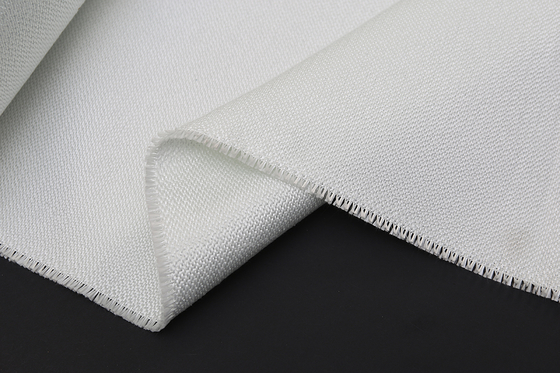

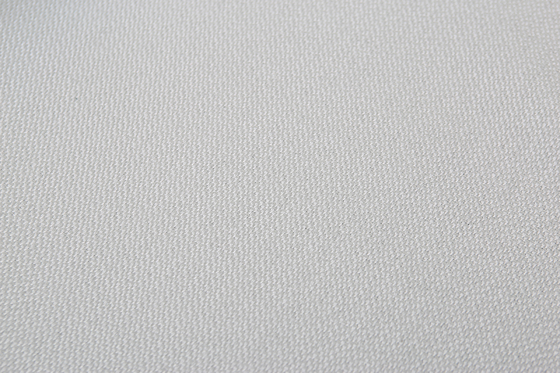

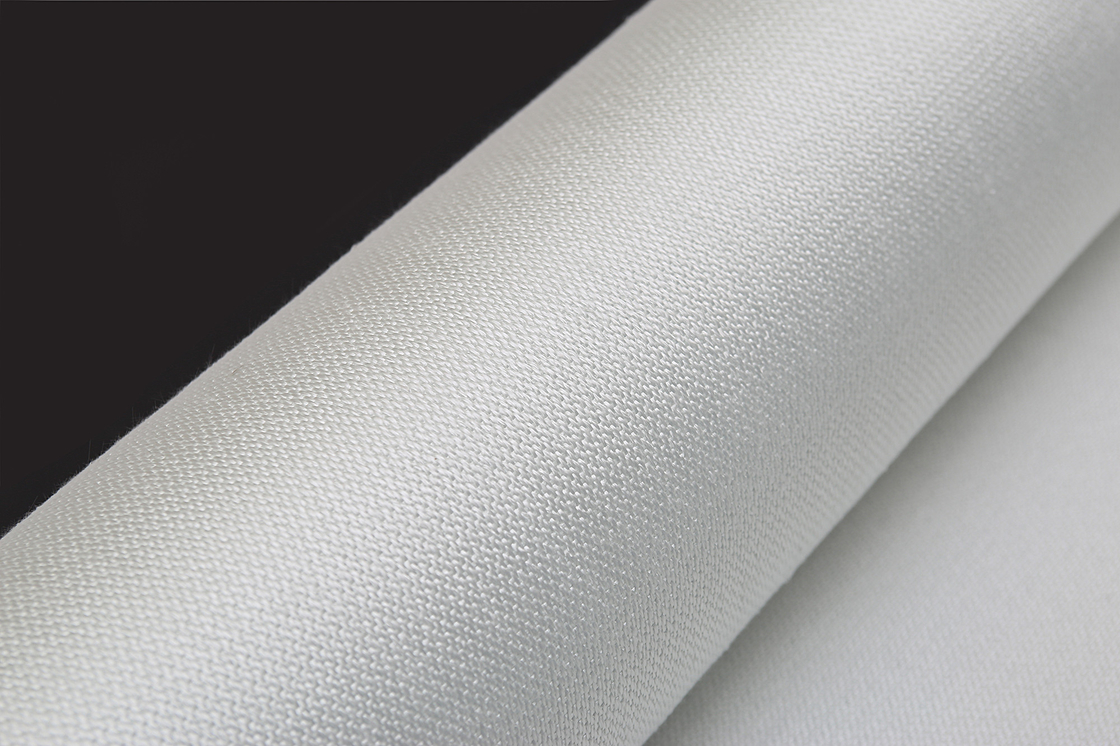

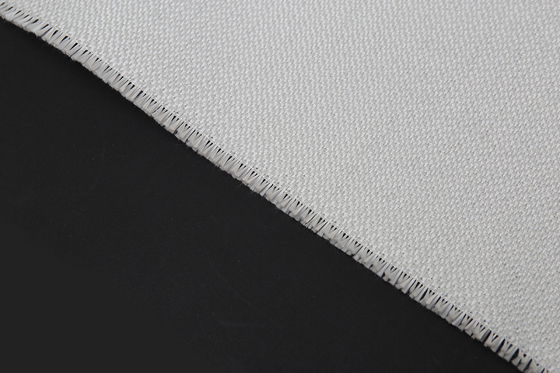

Detail Product Images
Packing
Why Choose Us?
Your inquiry will be replied to within 24 hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
