1.43 oz/sq Plain Weave Reinforcing Fiberglass Fabric For Electronic Industry

Large Image : 1.43 oz/sq Plain Weave Reinforcing Fiberglass Fabric For Electronic Industry

Product Details:

Place of Origin:	China
Brand Name:	Shenghe
Certification:	NA
Model Number:	Style 1080

Payment & Shipping Terms:

Minimum Order Quantity:	500 Meters
Price:	Negotiation
Packaging Details:	2500 Meters per Roll
Delivery Time:	10-15 Work Days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	10000 meters per day

Contact Now

1.43 oz/sq Plain Weave Reinforcing Fiberglass Fabric For Electronic Industry

Description

Product Name:	1080 Style Fiberglass Fabric For Electronic Industry	Type Of Yarns:	ECD 450 1/0, ECD 450 1/0
Yarn Density:	60*47/In	Breaking Strength:	120*90 Lb/in
Thickness:	0.06mm	Weight:	48 G/m2
Application:	Copper Clad Laminate, Printed Board	Yarn Type:	E-Glass
High Light:	Style 1080 Reinforcing Fiberglass Fabric , 0.06mm e glass cloth , 1.43 oz / sq Reinforcing Fiberglass Fabric

Style 1080 1.43 oz/sq yd Plain Weave Reinforcing Fiberglass Fabric For Electronic Industry

1. Description

with the weave style varying according to the required performance. Woven reinforcements are available in a wide range of weave patterns including plain, twill, and satin weaves. Style 1080 fiberglass cloth is a 1.43 oz/sq yd plain weave E-glass fabric referred to as the "medium weight" glass cloth in the model industry. Electronic grade fiberglass cloth is made of E-glass fiber on an air jet loom. It is widely used in the electronics industry such as copper-clad laminate, printed board.

2. Properties

Even fabric thickness.
Excellent wet out with resin.
Excellent electrical insulating property.
Very few appearance defects.
Excellent process performance.

3. 1080 Style Fiberglass Cloth Application

1.43 oz./sq. yd. Lightweight Industrial Cloth used in Osprey and other designs. Widely used by model builders, known as "Deck Cloth"

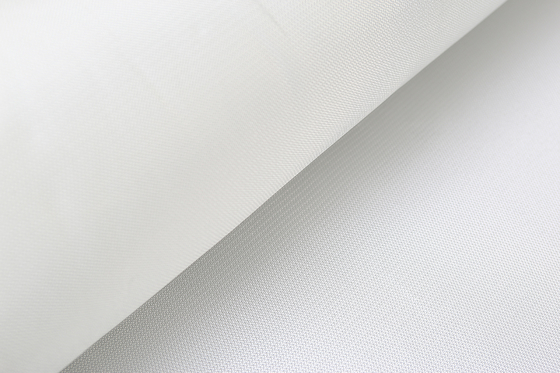

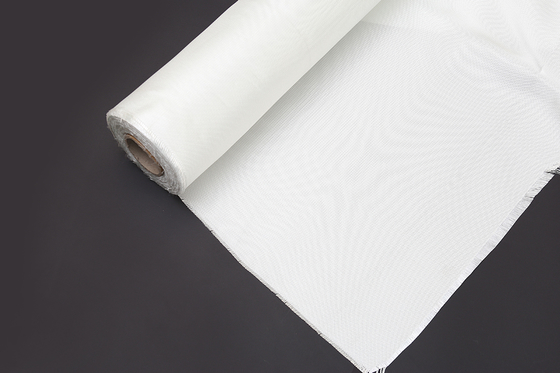

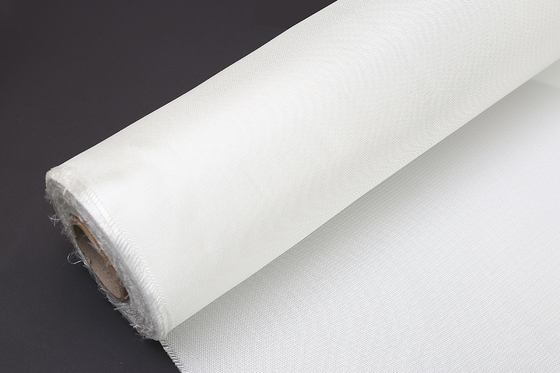

4. Detail Style 1080 Fiberglass Cloth Image

5. Data Sheet for 1080 Fiberglass Cloth

Specification-1080
NO.	Technical Data	SI Units	US System
1	Weave Style	Plain
2	Fabric Weight	48g/m2	1.41oz/yd2
3	Width (cm)	107 127 157
4	Length (m)	2500
5	Yarn Density
	Ends Warp	23.6/cm	60/in
	Picks Weft	18.5/cm	47/in
6	Yarn
	Warp	EC5 11	ECD 450 1/0
	Weft	EC5 11	ECD 450 1/0
7	Breaking Strength
	Warp	210N/cm	120lbf/in
	Weft	157N/cm	90lbf/in
8	Thickness	0.06mm	2.3mils

6. Much More Related Electronic Woven Reinforcement Fiberglass Cloth Data Sheets

NO.	Style	Width, cm	Weight,g/m2	Thickness, mm	Weaving type
1	104	107 127	18.7±3.0	0.028	Plain
2	106	107 127	24.8±3.0	0.036	Plain
3	1070	107 127	33.4±3.0	0.055	Plain
4	1080	107 127 157	46.8±3.0	0.062	Plain
5	1280	107 127 157	53.6±3.0	0.064	Plain
6	2112	107 127 157	71.5±4.0	0.081	Plain
7	2113	107 127 157	79.3±4.0	0.080	Plain
8	3313	107 127 157	81.4±4.0	0.084	Plain
9	1674	107 127 157 207 254	98.0±4.0	0.100	Plain
10	2116	107 127 157 207 254	106.8±4.0	0.094	Plain
11	1165	107 127 157 207 254	121.0±8.8	0.110	Plain
12	1522	107 127 157 207 254	123.4±8.8	0.150	Plain
13	154【1211】	107 127 157 207 254	123.8±8.8	0.140	Plain
14	985	107 127 157 207 254	139.0±8.8	0.130	Plain
15	985A	107 127 157 207 254	143.0±8.8	0.140	Plain
16	1652	107 127 157 207 254	140.0±8.8	0.114	Plain
17	1064	107 127 157 207 254	156.0±8.8	0.150	Plain
18	5430	107 127 157 207 254	180.0±8.8	0.153	Plain
19	7628L	107 127 157 207 254	201.0±12.0	0.178	1/3 Twill
20	7628T	107 127 157 207 254	205.4±16.6	0.180	Plain
21	1528	107 127 157 207 254	211.9±16.6	0.165	Plain
22	7638H	107 127 157 207 254	285.0±16.6	0.265	Plain
23	1142	107 127 157 207 254	290.4±16.6	0.279	Plain
24	7530	107 127 157 207 254	345.0±16.6	0.290	Plain
25	1523	107 127 157 207 254	392.0±16.6	0.340	Plain
26	162	107 127 157 207 254	400.0±20.0	0.381	Plain
27	1589	107 127 157 207 254	414.0±20.0	0.406	Plain
28	1564	107 127 157 207 254	420.4±20.0	0.380	Plain

7. Pallet Included

1.43 oz/sq Plain Weave Reinforcing Fiberglass Fabric For Electronic Industry 0
