Product Details:
|
| Product Name: | 7628 Fiberglass Cloth | Type Of Yarns: | E-glass |
|---|---|---|---|
| Yarn Density: | 17*12.4 Ends/cm | Weave: | Plain Weave |
| Thickness: | 0.2mm | Heat Resistance: | -70°C To +550°C |
| Keywords: | Insulation, Weatherproof, Waterproof, Anti-UV, Etc | Application: | Oil Tank Suspended Roof, High-temperature/heat Resistant, Fireproof |
| High Light: | Plain Weave E Fiberglass Cloth,7628 fiberglass cloth,0.2mm E Fiberglass Cloth |
||
Fiberglass Fabric For Tough And Highly Durable Floating Roof Tank Seals
1. Description
The surfboard fabrics supplied in China are carefully produced to meet the unique requirements of the surfboard/windsurfing industry. Special finishes offer soft drapeable fabrics and near-transparent laminates. These fiberglass fabrics are suitable for applications where surface finish and lamination clarity are a concern. Due to its low weight, it is suitable for most light-duty applications requiring clear wetting. There are many other fabrics on the market in different ounces, materials, and weaves. Widely used in surfboards, windsurfing, models, remote control planes, golf balls, snowboards, ski poles, snowboards, bicycle composites, canoes, etc.
2. Properties
Excellent clarity and softness for colors
Excellent wetting characteristics, good wetting outperformance.
Transparent
Epoxy compatible
Economical
Takes turns with ease
3. Fiberglass Cloth Application
Fiberglass composites for surfboards are widely used in the sporting goods and recreational markets due to their lightweight, high strength, flexible design, ease of maintenance, and durability. Some of the key applications are as follows: surfboards, boats, speed boats, snowboards, poles and snowboards, tennis and badminton rackets, golf clubs, recreational tools, etc.

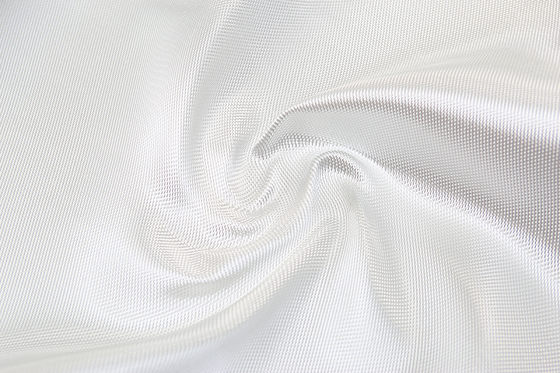

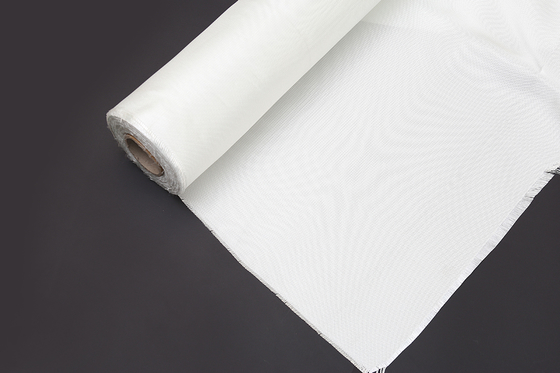

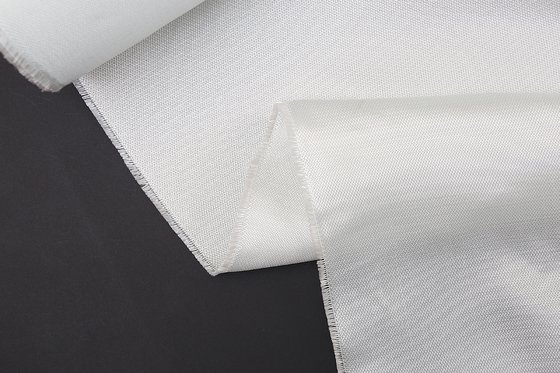

4. Detail Style 1522 Fiberglass Cloth Image
5. Data Sheet for 1522 Fiberglass Cloth
| Specification-1522 RWG(154,1211) | |||
| NO. | Technical Data | SI Units | US System |
| 1 | Weave Style | Plain | |
| 2 | Fabric Weight | 126g/m2 | 3.71oz/yd2 |
| 3 | Width (cm) | 107 127 157 207 254 | |
| 4 | Length (m) | 2500 | |
| 5 | Yarn Density | ||
| Ends Warp | 9.4/cm | 24/in | |
| Picks Weft | 8.7/cm | 22/in | |
| 6 | Yarn | ||
| Warp | EC9 33*2 | ECG 150 1/2 | |
| Weft | EC9 33*2 | ECG 150 1/2 | |
| 7 | Breaking Strength | ||
| Warp | 341N/cm | 195lbf/in | |
| Weft | 306N/cm | 175lbf/in | |
| 8 | Thickness | 0.12mm | 4mils |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:
Our machine brands are DORNIER, TOYOTA, and our production capacity is about 1.8 million square meters per month. Our fiberglass E-glass cloth offers an excellent balance between cost and performance. Welcome to develop new products with us. The following items are our main products.
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage and Packing
