Product Details:
|
| Product Name: | 7628 Fiberglass Cloth | Type Of Yarns: | E-glass |
|---|---|---|---|
| Yarn Density: | 17*12.4 Ends/cm | Weave: | Plain Weave |
| Thickness: | 0.2mm | Weight: | 6OZ |
| Keywords: | Flame Retardant | Application: | Thermal Insulation |
| High Light: | Surfboard Glass Fiber Cloth,0.2mm ultra thin fiberglass cloth,Style 1522 Glass Fiber Cloth |
||
Style 1522 4oz China Supply Fiber Cloth With Flame Resistance For Surfboard
1. Description
The surfboard fabrics supplied in China are carefully produced to meet the unique requirements of the surfboard/windsurfing industry. Special finishes offer soft drapeable fabrics and near-transparent laminates. These fiberglass fabrics are suitable for applications where surface finish and lamination clarity are a concern. Due to its low weight, it is suitable for most light-duty applications requiring clear wetting. There are many other fabrics on the market in different ounces, materials, and weaves. Widely used in surfboards, windsurfing, models, remote control planes, golf balls, snowboards, ski poles, snowboards, bicycle composites, canoes, etc.
2. Properties
Excellent clarity and softness for colors
Excellent wetting characteristics, good wetting outperformance.
Transparent
Epoxy compatible
Economical
Takes turns with ease
3. Fiberglass Cloth Application
In today’s fast-moving world of electronic advances and miniaturization, where glass fibers play a vital role, the hyperenhancement of such glass fabrics. Glass fibers play a key role in electronic market trends, as they are essential in reinforced fabrics for printed circuits.

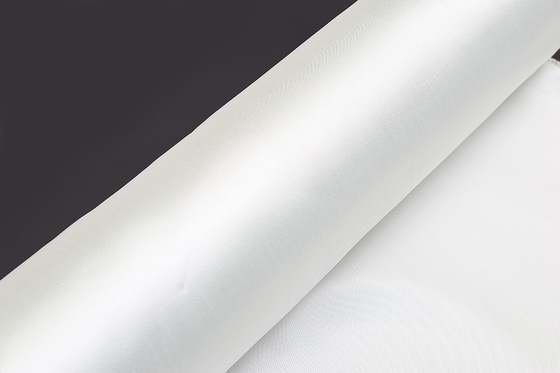

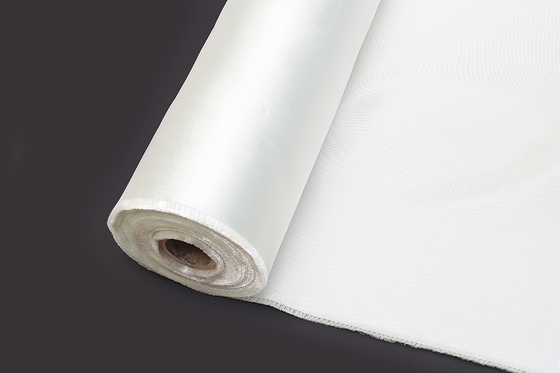

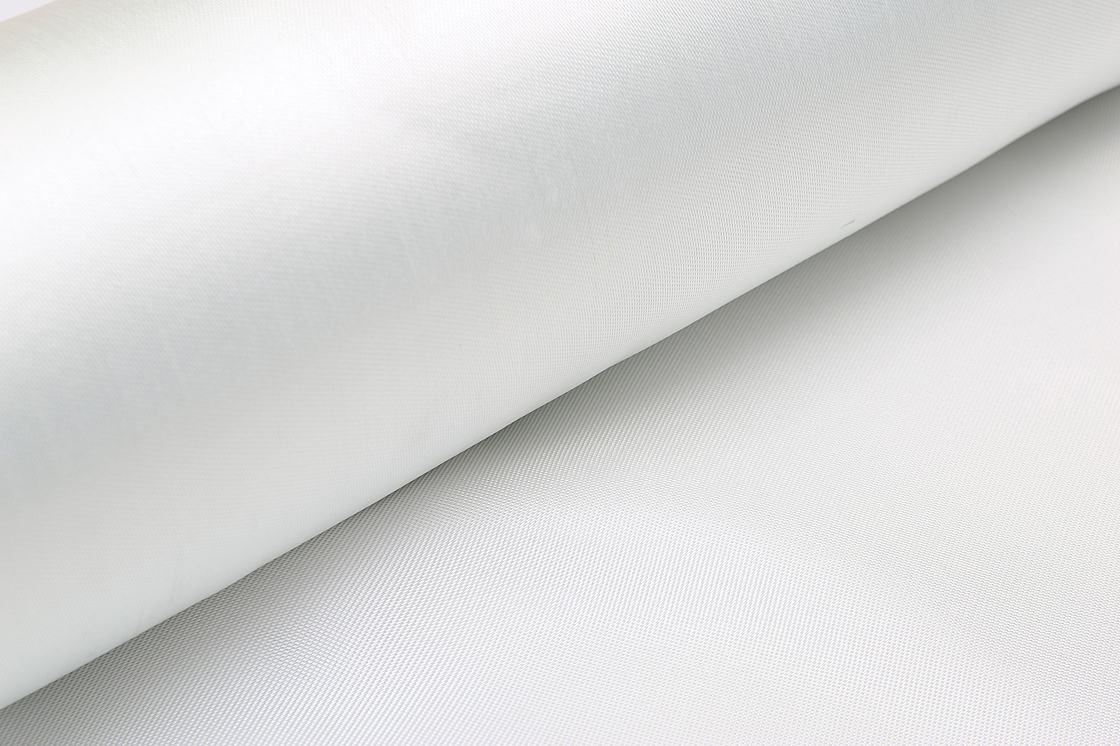

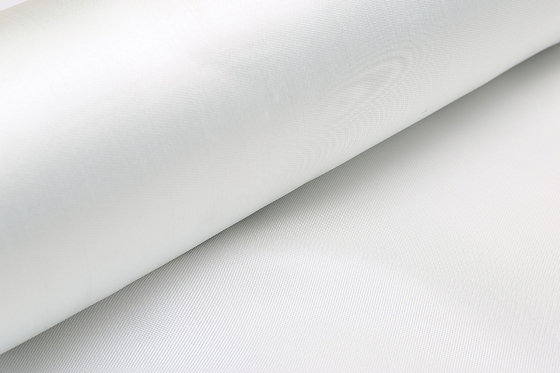

4. Detail Style 1522 Fiberglass Cloth Image
5. Data Sheet for 1522 Fiberglass Cloth
| Specification-1522 RWG(154,1211) | |||
| NO. | Technical Data | SI Units | US System |
| 1 | Weave Style | Plain | |
| 2 | Fabric Weight | 126g/m2 | 3.71oz/yd2 |
| 3 | Width (cm) | 107 127 157 207 254 | |
| 4 | Length (m) | 2500 | |
| 5 | Yarn Density | ||
| Ends Warp | 9.4/cm | 24/in | |
| Picks Weft | 8.7/cm | 22/in | |
| 6 | Yarn | ||
| Warp | EC9 33*2 | ECG 150 1/2 | |
| Weft | EC9 33*2 | ECG 150 1/2 | |
| 7 | Breaking Strength | ||
| Warp | 341N/cm | 195lbf/in | |
| Weft | 306N/cm | 175lbf/in | |
| 8 | Thickness | 0.12mm | 4mils |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:
Our machine brands are DORNIER, TOYOTA, and our production capacity is about 1.8 million square meters per month. Our fiberglass E-glass cloth offers an excellent balance between cost and performance. Welcome to develop new products with us. The following items are our main products.
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage and Packing
