Product Details:
|
| Product Name: | 200gram Fiberglass Woven Roving Glass Fabric | Type Of Yarns: | E-glass |
|---|---|---|---|
| Yarn Density: | 17*12.4 Ends/cm | Weave: | Plain Weave |
| Thickness: | 0.2mm | Weight: | 6OZ |
| Keywords: | Flame Retardant | Application: | Thermal Insulation |
| High Light: | 200 Gram E Fiberglass Cloth,Copper Clad Laminate fiberglass fabric,7628 E Fiberglass Cloth |
||
200 Gram E Glass 7628 Fiberglass Blended Fabric Mainly Used For Copper Clad Laminate
1. Description
With the rapid development of the electronics industry, especially the development of microprocessors and memories represented by computers. The change of LSI input and output signal frequency has generally increased to more than 100MHz. Higher technical requirements are put forward for the electrical properties of 7628 glass fiber cloth and polymer resin materials used in copper-clad laminates.
2. Properties
Fiberglass cloth is an engineering material, which has excellent merit such as anti-burns, anti-corrosion, stable-size, heat-isolation, minimum elongated shrinkage, high intensity, this new material product has already covered many domains such as electric appliances, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention, and environmental protection.
3. Fiberglass Cloth Application
7628 fiberglass cloth is an indispensable textile reinforcing material in the production of copper-clad laminate (CCL) substrate and prepreg. Copper-clad laminates are made of glass fiber cloth, epoxy resin, and electrolytic copper foil. They are used to support and connect electronic components of special electronic products and are widely used in military, aerospace, and household appliances.

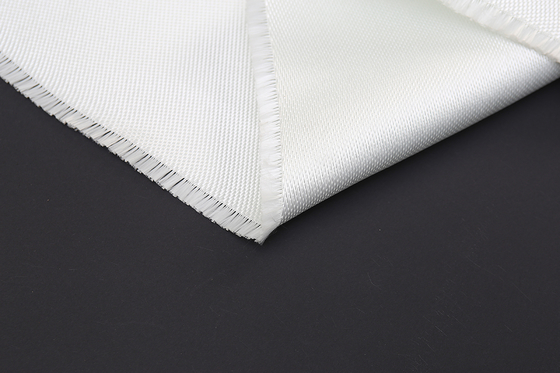

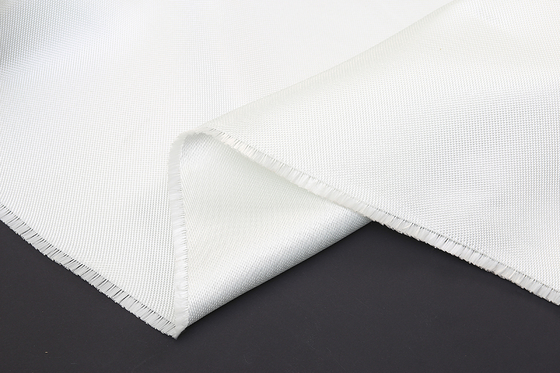

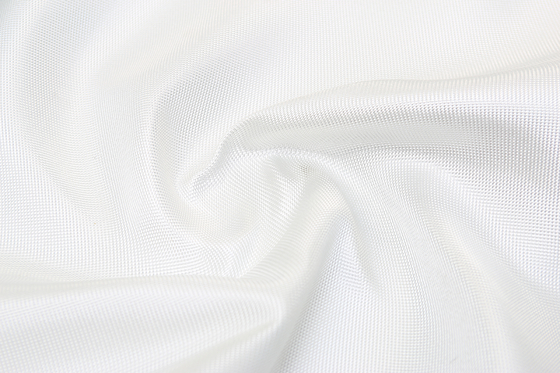

4. Detail Style 7628 Fiberglass Cloth Image
5. Data Sheet for 7628 Fiberglass Cloth
| Specification-7628 | |||
| NO. | Technical Data | Style 7628 | |
| 1 | Weave Pattern | Plain | |
| 2 | Fabric Weight, g/m2 | 210 | ±5 |
| 3 | Width ,mm | 1000-2000 | |
| 4 | Length,m | 2500 | Max. |
| 5 | Yarn Density | ||
| Ends Warp,1/in | 44.0 | ±1 | |
| Picks Weft,1/in | 33.0 | ±1 | |
| 6 | Yarn | ||
| Warp | G75 1/0 | ||
| Weft | G75 1/0 | ||
| 7 | Breaking strength | ||
| Warp, N/cm | 380 | Min. | |
| Weft, N/cm | 320 | Min. | |
| 8 | Thickness, mm | 0.165 | ±0.02 |
| 9 | LOI,% | 2.6 | <0.4% |
| 10 | Roll Splice | 0 | |
| 11 | Selvage, mm | 5 | Max. |
| 12 | Core ID and thickness | 3 in.ID, 4 in. OD | |
| 13 | Color | White | |
| 14 | Finish | Greige | |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:
Our machine brands are DORNIER, TOYOTA, and our production capacity is about 1.8 million square meters per month. Our fiberglass E-glass cloth offers an excellent balance between cost and performance. Welcome to develop new products with us. The following items are our main products.
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage and Packing
