Product Details:
|
| Features: | Good Acid And Alkaline Resistance | Product Name: | 4602 Filter Fiberglass Cloth |
|---|---|---|---|
| Feature: | Good Acid And Alkaline Resistance | Weight: | 435gsm |
| Thread Count: | 46*25.4 Ends/Inch | Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works |
| Thickness: | 0.43mm | Working Temperature: | 550 Degrees |
| Highlight: | Powder Fiberglass Filter Cloth,Non Alkali Filter Press Cloth,360gsm Fiberglass Filter Cloth |
||

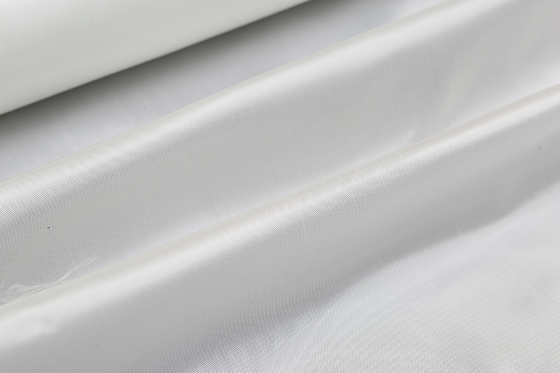

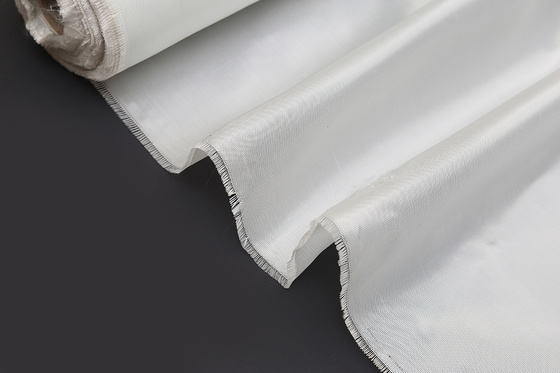

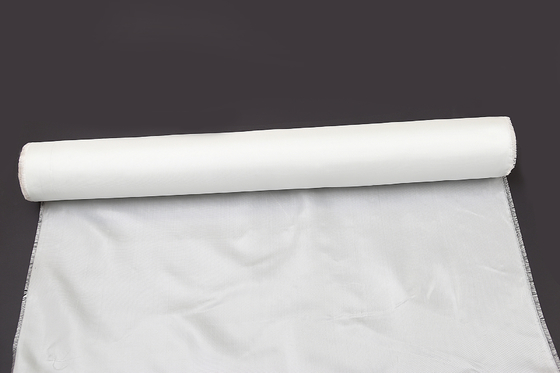

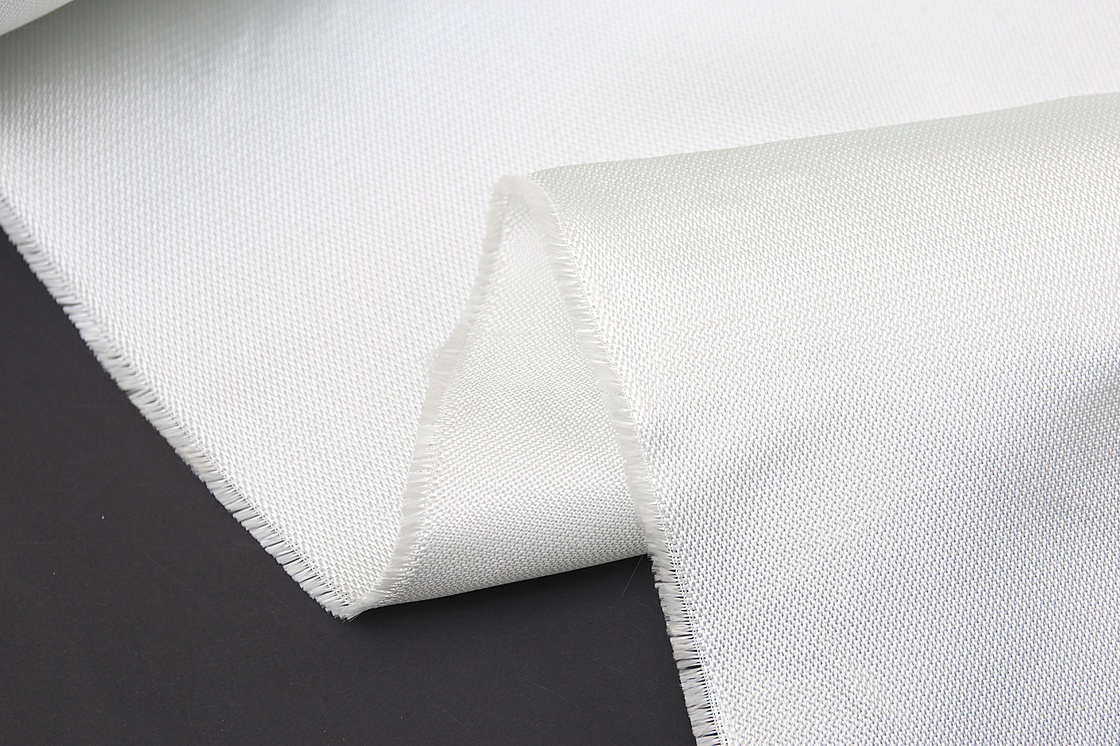

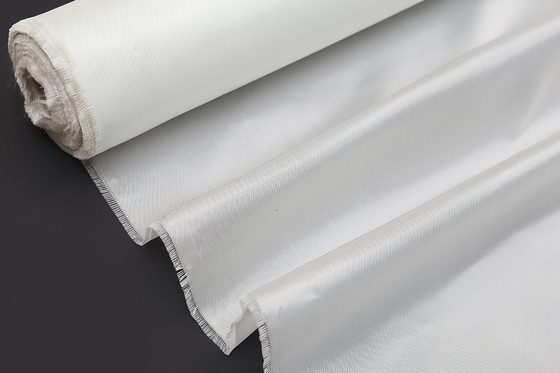

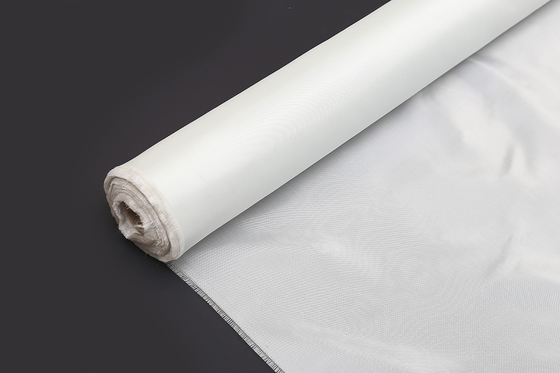

Dust / Air / Powder Filtration Filter Press Cloth 360gsm E Glass Non-Alkali Filter Clothes
Product Description:
Glass fiber filter media, including fiberglass needle, felt and woven fiberglass filter cloth, because of its high-temperature resistance, anti-condensation, dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry, and waste incineration industries.
Features:
No contamination of the molten aluminum
Cost-effective & easy installation
Reduce turbulence & improve distribution and flow
Remove oxides and inclusions.
Excellent stiffness and toughness, good impact resistance
Well organized grid to ensure fine filtration
Application:
Chemical plant Cement plant
Steel iron plant Melting plant
Carbon black plant Electricity Industry
The Technique for Style 4602 Fiberglass Filter Fabric Cloth
| Style 4602 | ||
| Item Model | 4602 Filter Fiberglass Cloth | |
| Description | Woven Fiberglass Cloth | |
| Weight | 435±15gsm | |
| Width | 440±10mm | |
| Thickness | 0.43mm | |
| Yarn Type | Warp | DE75-1/2 150TEX |
| Weft | TEX200 | |
| Thread Count | Warp | 46±2 ends/In |
| Weft | 25.4±2 picks/In | |
| Break Strength | Warp | 2000 N/2.5cm |
| Weft | 1400 N/2.5cm | |
| Length | 410m | |
| LOI | < 0.4% | |
| Working Temperature | ≤550℃ | |
How to choose glass fiber filter material cloth?
| Fabric thickness (mm) | 0.3 | 0.4 | 0.5 | 0.7 |
| Fabric Weight | 320 | 390 | 435 | 730 |
| Filtration Airspeed (m/min) | ≤0.4 | ≤0.45 | ≤0.5 | ≤0.7 |
Specifications:
Weight: 350gsm-750gsm
Finishing treatment: Make to order depending on the special condition of the dust collector
Work temp: 260-280ºC
Excellent acids, caustics, solvent, hydrocarbons, and abrasion resistance;
Well Hydrolysis resistance, excellent strength, oxidative resistance
Emission concentration : <50mg/m3
Service life: 1-2years
Why choose us?
First of all, We choose the raw fiberglass yarn from China's top 4 fiberglass manufacturers – China Jushi Co., Ltd. Chongqing Fiberglass, Taishan Fiberglass, and Taiwan glass company.
Secondly, We have enough high-speed looms to meet the output and product quality.
Finally, We specialize in the production of various fiberglass-based fabric products and provide Silicone, and PTFE coating treatment to customers in the United States and Europe
