Product Details:
|
| Product Name: | Reinforced Steel Wire Fiberglass Cloth | Width: | 1000 To 2000mm |
|---|---|---|---|
| Yarn Tyoe: | E-glass Fiberglass Fabric With 316 Stainless Steel | Weave Structure: | 8 H Satinless |
| Application: | Welding Blanket, Fire Curtain | Alkali Content: | Alkali Free |
| Standing Temperature: | -70-550Degree | Good Features: | Fireproof |
| High Light: | Glass Fiber Reinforced Fiberglass Fabric,Fireproof Steel Wire Fiberglass Cloth,Alkali Free Reinforced Fiberglass Fabric |
||

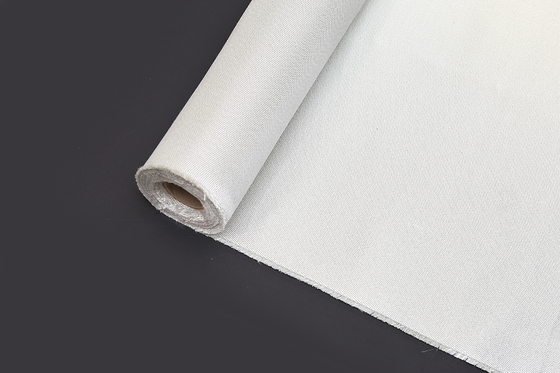

Glass Fiber Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
Product Description
Fiberglass fabric inserted with stainless steel wire for added tensile strength. Applications for this fabric include use as hot side insulating fabric, flanges and valve covers, welding curtains, and stress relief blankets. The material is chemical resistant and provides good heat and flame protection in service applications up to 1,000°F.
Application
All types of thermal insulation and heat protection
Welding blankets and fire curtains
Expansion joints
Basic cloth for coatings and laminations
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.55±0.05 mm |
| Cloth Weight | 650g/m2 |
| Warp Yarn | G75/2 + Stainless Wire |
| Weft Yarn | G75/2 + Stainless Wire |
| Warp and Weft Density | 39*38/in |
| Warp Tensile Strength [25*200mm] | 2237N/2.5cm |
| Weft Tensile Strength [25*200mm] | 2316N/2.5cm |
| Temperature Resistance | 550oC |
Product Features
Fiberglass fabric is weaved of fiberglass yarn by a high-speed weaving machine. It possesses the excellent character of fire-proof, heat insulation, high strength, corrosion resistance, high intensity, etc. It is widely used in the fire protection and thermal insulation industry.

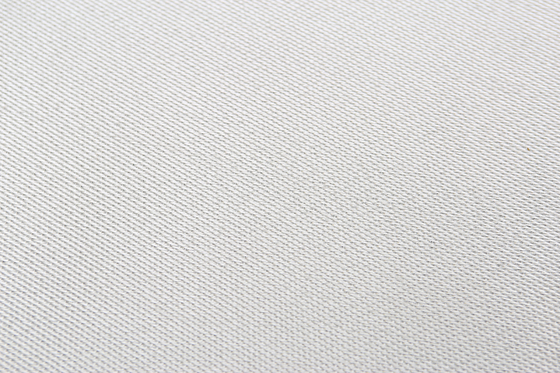

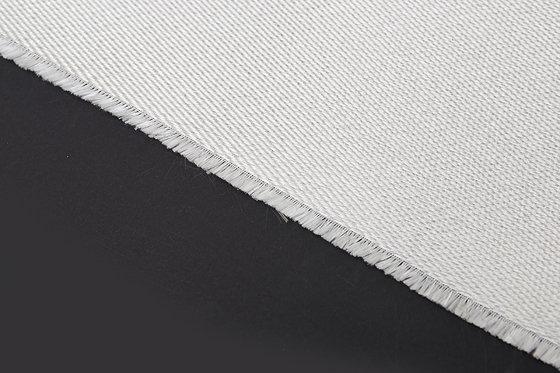

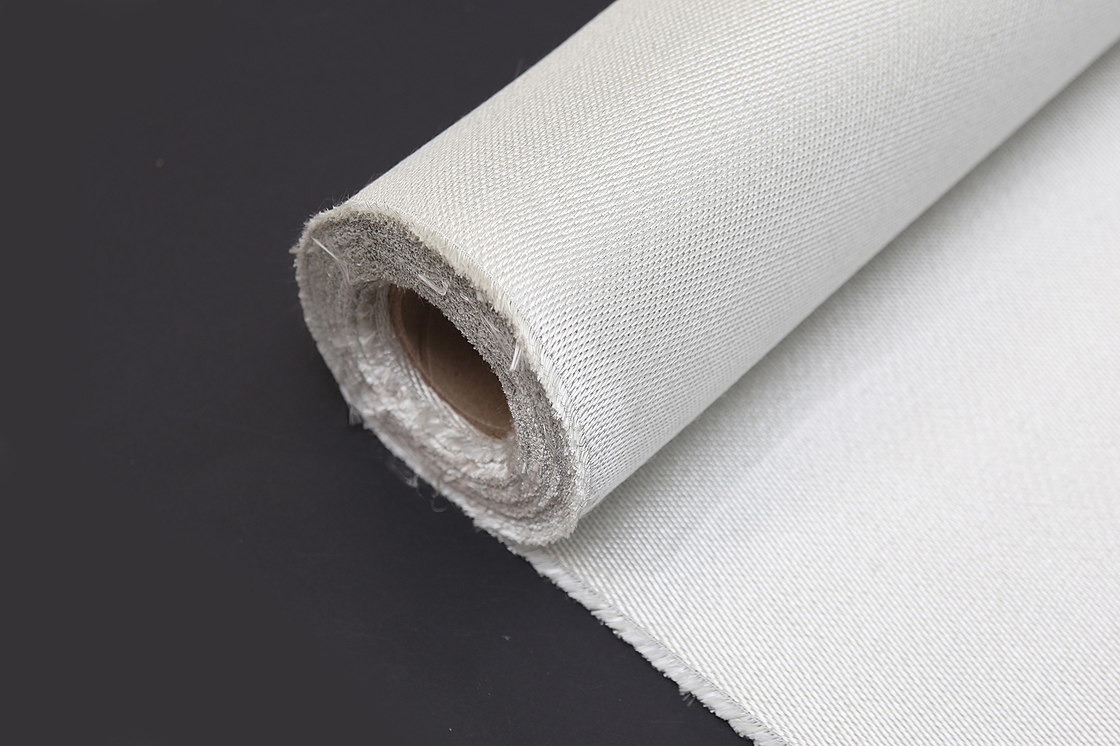

More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
| Type | Material | Weight | Thickness | Temperature Resistance |
| 500 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 500gsm | 0.5mm | 550℃ |
| 650 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 650gsm | 0.65mm | 550℃ |
| 1000 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 1000gsm | 1.0mm | 550℃ |
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
