Product Details:
|
| Product Name: | Reinforced Steel Wire Fiberglass Cloth | Width: | 1000 To 2000mm |
|---|---|---|---|
| Yarn Tyoe: | E-glass Fiberglass Fabric With 316 Stainless Steel | Weave Structure: | 8 H Satinless |
| Application: | Welding Blanket, Fire Curtain | Alkali Content: | Alkali Free |
| Standing Temperature: | -70-550Degree | Good Features: | Fireproof |
| High Light: | Alkali Free Industrial Fiberglass Fabric,650gsm E Glass Fiberglass Fabric,Industrial Fiberglass Fabric Reinforced |
||
Industry Used Fiberglass Fabric Reinforced With Stainless Steel Insert
Product Description
Heat Resistant Filament Fiberglass Fabric Wire Reinforcement Made of Asbestos-Free, Textured S.S. Fiberglass Yarn. The reinforcement of the S.S wire significantly increases the tensile strength. It doesn't burn and can withstand constant heat exposure. 1022°F/550°C; resistant to most oils and alkalis, and unaffected by most bleaches and solvents. It is the best substitute for products made from asbestos. To meet unique requirements, it can be used in a variety of insulation and thermal safety and surface-treated base fabrics.
Product Features
Fiberglass fabric or cloth is common in electronics and it is widely used to reinforce fabrics. In addition, it is present in many wiring boards because it is an electrically insulating material. It provides heat resistance and dimensional stability.
Application
Heat Shields
Welding Blanket
Stress Relieving
Removable Insulation Covers
Fire Curtains
Fire Blankets
Non Metallic Expansion Joints
Flue Ducts and Covers For Fibrous Insulation
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.55±0.05 mm |
| Cloth Weight | 650g/m2 |
| Warp Yarn | G75/2 + Stainless Wire |
| Weft Yarn | G75/2 + Stainless Wire |
| Warp and Weft Density | 39*38/in |
| Warp Tensile Strength [25*200mm] | 2237N/2.5cm |
| Weft Tensile Strength [25*200mm] | 2316N/2.5cm |
| Temperature Resistance | 550oC |

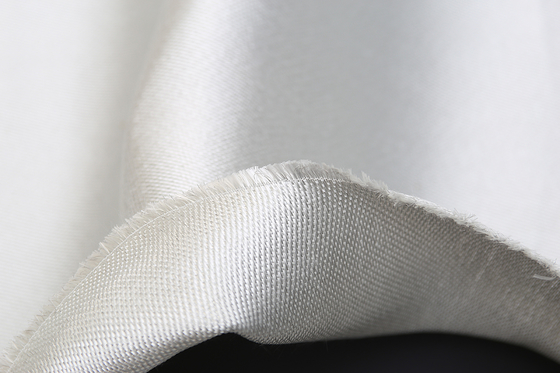

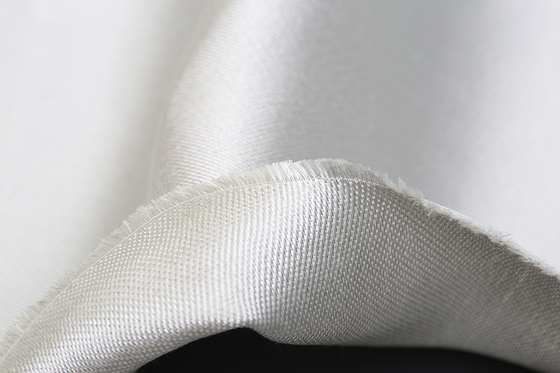

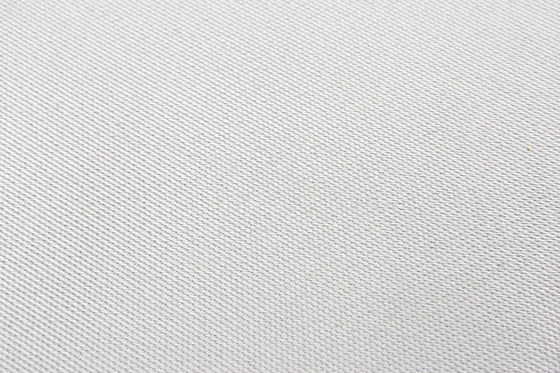

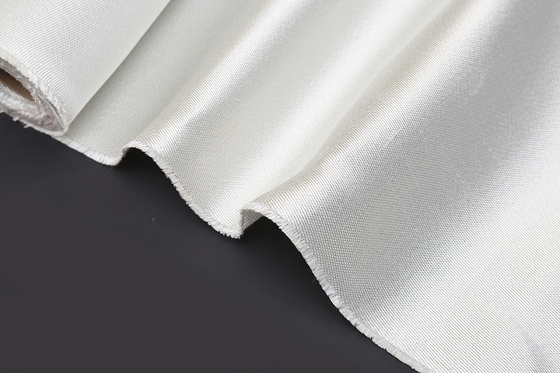

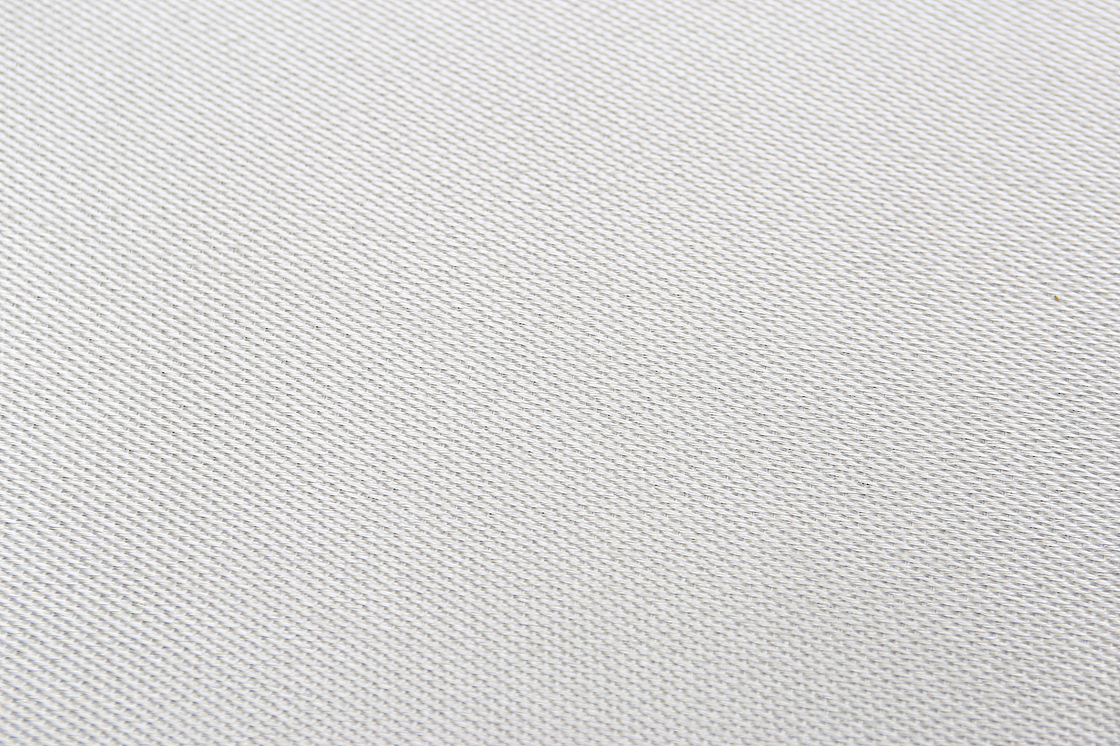

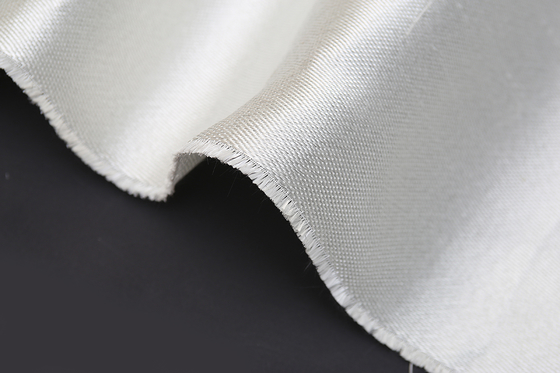

More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
| Type | Material | Weight | Thickness | Temperature Resistance |
| 500 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 500gsm | 0.5mm | 550℃ |
| 650 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 650gsm | 0.65mm | 550℃ |
| 1000 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 1000gsm | 1.0mm | 550℃ |
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
