Product Details:
|
| Product Name: | Stainless Steel Wire Reinforced Silicone Fiberglass Fabric | Width: | 1000 To 2000mm |
|---|---|---|---|
| Yarn Tyoe: | E-glass Fiberglass Fabric With 316 Stainless Steel | Weave Structure: | 8 H Satinless |
| Application: | Fire Doors & Fire Curtains, Welding/fire Blankets | Satinless Type: | 316 Stainless Steel Wire |
| Good Features: | Water,chemical,and Oil Resistant,fire Resistant Insulation | ||
| High Light: | Reinforced Fiberglass Fabric,SS Wire Fiberglass Reinforced Fabric,650C Woven Glass Cloth |
||
Fiberglass Reinforced Fabric Woven Glass Cloth Fiberglass Clothing China Factory Suppliers
Product Description
Fiberglass Cloth with ss Cord Inserts - A woven plain weave fiberglass fabric with stainless steel (t304) cords inserted for added tensile strength. The stainless steel wire we use is stronger and more durable. We have multiple strands of stainless steel, each strand of textured fiberglass yarn. Weaving can be unidirectional (stainless steel inserted in warp only) or bidirectional (stainless steel inserted in warp and weft). Shenghe Inlaid Fiberglass Fabric is woven from high-quality fiberglass yarn and stainless steel wire with excellent tensile strength, puncture resistance, and heat resistance. The role of stainless steel wire is to dissipate heat on the surface of the fabric and improve heat resistance.
Product Features
Temp resistance up to 650C
Content: warp: 100% fiberglass yarns
Fill: stainless steel wire (t304) plied with fiberglass yarns
Application
removable insulation pads and jackets
welding blankets and equipment protection
fire and heat barriers
fire retardant curtains, welding curtains
fabric expansion joints
lagging, gaskets, and seals
refineries, power plants, and offshore drilling platforms
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.55±0.05 mm |
| Cloth Weight | 650g/m2 |
| Warp Yarn | G75/2 + Stainless Wire |
| Weft Yarn | G75/2 + Stainless Wire |
| Warp and Weft Density | 39*38/in |
| Warp Tensile Strength [25*200mm] | 2237N/2.5cm |
| Weft Tensile Strength [25*200mm] | 2316N/2.5cm |
| Temperature Resistance | 550oC |

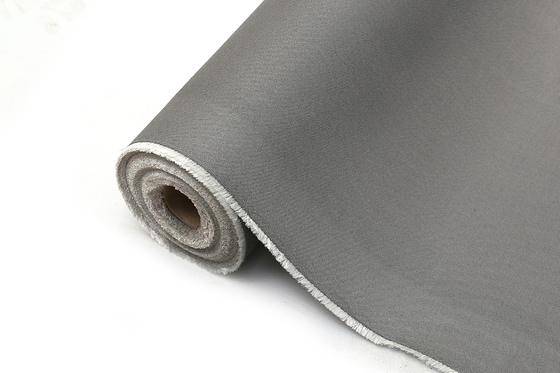

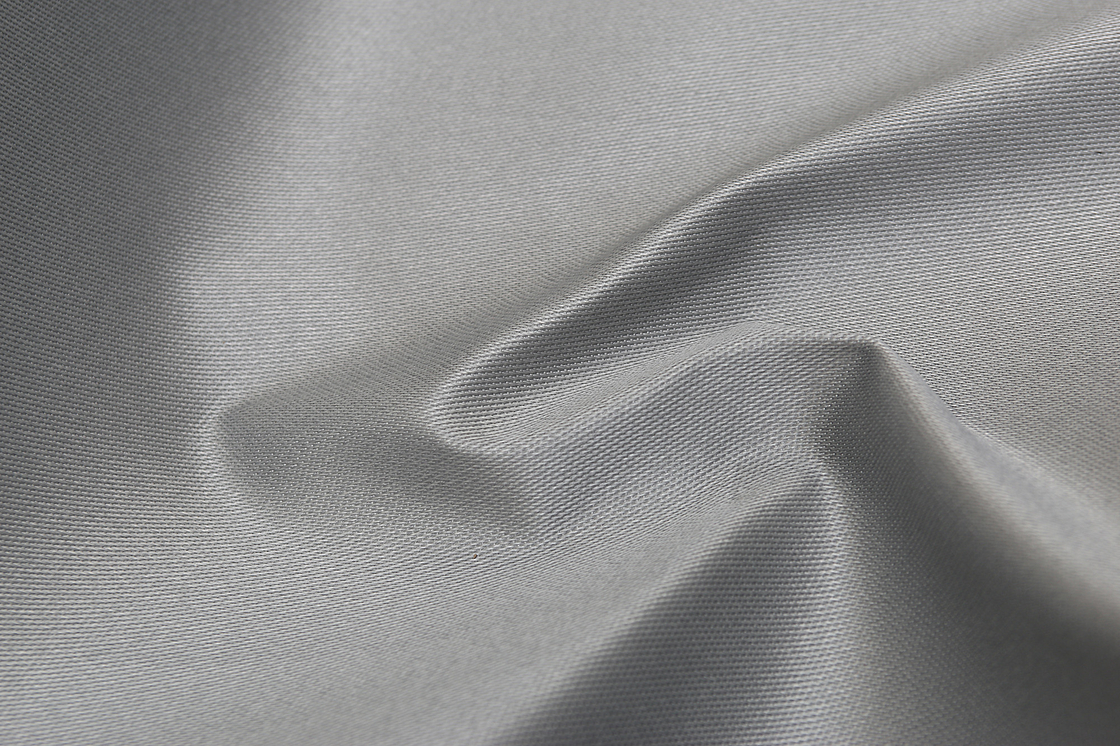

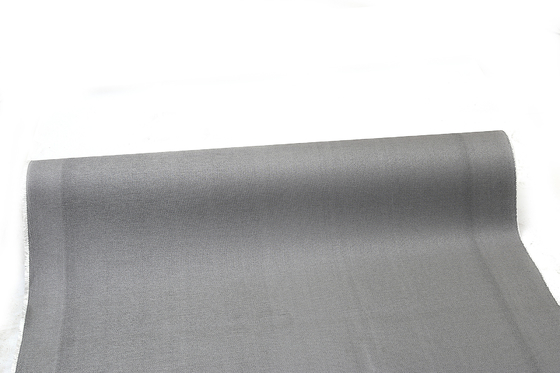

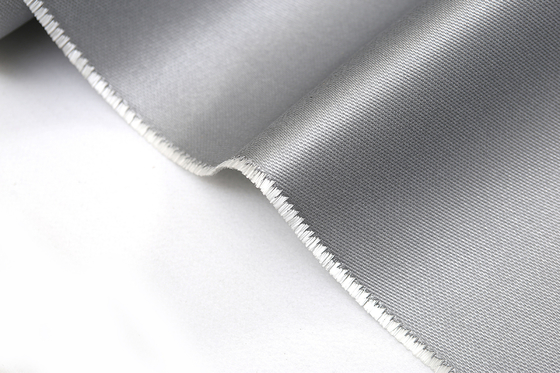

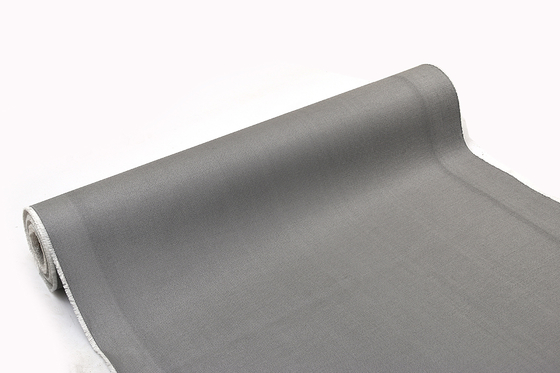

More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
| Type | Material | Weight | Thickness | Temperature Resistance |
| 500 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 500gsm | 0.5mm | 550℃ |
| 650 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 650gsm | 0.65mm | 550℃ |
| 1000 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 1000gsm | 1.0mm | 550℃ |
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
