Product Details:
|
| Product Name: | Stainless Steel Wire Reinforced Silicone Fiberglass Fabric | Width: | 1000 To 2000mm |
|---|---|---|---|
| Yarn Tyoe: | E-glass Fiberglass Fabric With 316 Stainless Steel | Weave Structure: | 8 H Satinless |
| Application: | Fire Doors & Fire Curtains, Welding/fire Blankets | Good Features: | Water,chemical,and Oil Resistant,fire Resistant Insulation |
| Standing Temperature: | From -100℃ To 800℃ | Technology Reinforced: | Stainless Steel Wire |
| High Light: | Steel Wire Fireproof Fiberglass Cloth,Fireproof Fiberglass Fabric 2000mm,8 H Satinless Fireproof Fiberglass Cloth |
||
Fireproof Fiberglass Fabric Cloth Steel Wire Reinforcement Increases The Strength
Product Description
Steel wire reinforcement increases the strength and durability of the fiberglass fabrics for improved performance in high vibration or abrasive high-temperature environments. These strong flame retardant fabrics are commonly used in fire retardant curtains, equipment and pipe insulation, and other high temp insulation systems.
Product Features
Fiberglass fabrics are widely used for thermal insulation, acoustic insulation, and for protection from heat and fire. These woven high temperature fabrics support operating temperatures up to 1000°F / 540°C and peak temperatures up to 1300°F / 700°C.
Application
High-temperature welding blanket
Removable insulation mattress, jacket & pad
Fire doors/smoke curtain
Dust filter bag
Flexible expansion joints & compensators
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Final Product weight | 690 g/sq.m |
| Nominal Thickness | 0.7 mm |
| Nominal Width | 1000mm 1520mm |
| Treatment | PU Double Side |
| Color of coating | Silver Grey |
| Fire resistance | Excellence |
| Temperature resistance | Basic fabric 550 ℃, PU coating 180 ℃. |
| Weave | 8H Satin |
| Fiberglass | E-glass Stainless Steel Wire Reinforced Fiberglass |

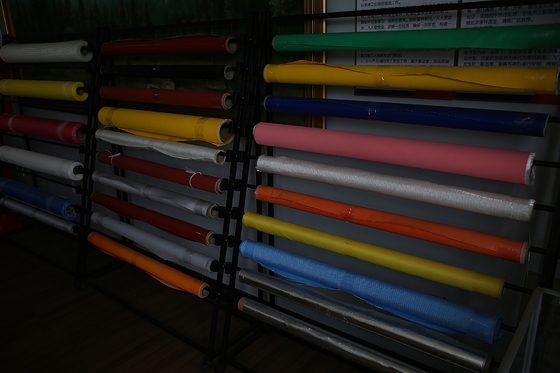

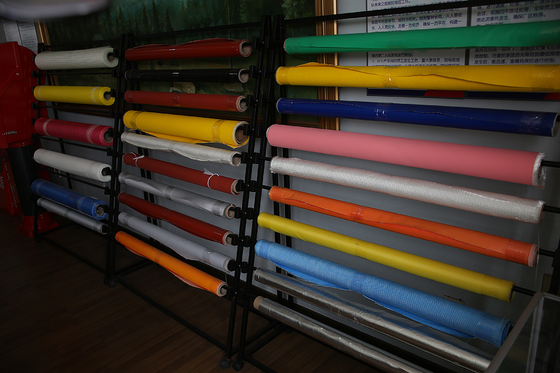

More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
| Type | Material | Weight | Thickness | Temperature Resistance |
| 500 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 500gsm | 0.5mm | 550℃ |
| 650 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 650gsm | 0.65mm | 550℃ |
| 1000 gsm Steel Wire Fiberglass Cloth | fiberglass yarn+316 Stainless Steel | 1000gsm | 1.0mm | 550℃ |
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High-quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
