PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts

PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts
PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts

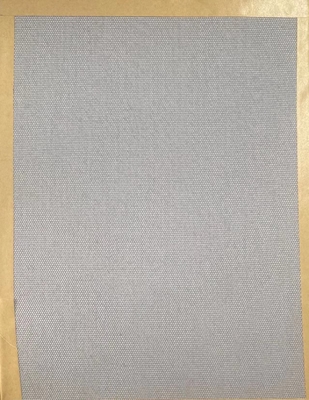

Large Image :  PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts

Product Details:
Place of Origin: China
Brand Name: Shenghe
Certification: ISO 9001
Model Number: PW05 SS
Payment & Shipping Terms:
Minimum Order Quantity: 50 Meters
Price: Negotiation
Packaging Details: Woven Bag
Delivery Time: This silicone fabric is cut to order and is not returnable. The high temperature material typically ships out in 1-5 business days.
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 meters per day

PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts

Description
Product Name: Reinforced Steel Wire Fiberglass Cloth Width: 1000 To 2000mm
Yarn Type: E-glass Fiberglass Fabric With 314 Stainless Steel Weave Structure: Plain Weave
Application: Welding Blanket, Fire Curtain Satinless Type: 314 Stainless Steel Wire
Standing Temperature: -70-600Degree Good Features: Fireproof

PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts



Product Description

Fiberglass Cloth with SS Wire Insert - A woven thermal glass medium weight plain weave fabric with stainless steel (T304) wire inserted for added tensile strength. Applications for this fabric include use as hot side insulating fabric, flanges and valve covers, welding curtains and strain relief blankets. The material is chemical resistant and provides good thermal and fire protection in service applications up to 1,000°F.



Product Features

Nominal Width: 100/120cm

Nominal Weight: 520gsm

Nominal Thickness: 0.5mm

Base Cloth Temperature Resistance 600oC

Content: Warp: 100% Fiberglass Yarns

Fill: Stainless Steel Wire (314) Plied With Fiberglass Yarns

Weave can be one-directional (stainless is only inserted in warp yarn) or two-directional (stainless is inserted in both warp yarn and weft yarn)

Count Warp: 16

Fill: 9

Material should be tested for its suitability in any application. Users should also familiarize themselves with the SDS before handling.



Application

Heat Shields

Welding Blanket

Stress Relieving

Removable Insulation Covers

Fire Curtains

Fire Blankets

Non Metallic Expansion Joints

Flue Ducts and Covers For Fibrous Insulation



Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth

Items Technical Requirement
Width 100cm
Cloth Thickness 0.55±0.05 mm
Cloth Weight 520g/m2
Warp Yarn 150 Tex + Stainless Wire
Weft Yarn 150 Tex + Stainless Wire
Warp and Weft Density 16*9 Ends/cm
Warp Tensile Strength [25*200mm] 3400N/5cm
Weft Tensile Strength [25*200mm] 3000N/5cm
Temperature Resistance 600oC



Much More Related Stainless Steel FIberglass Cloth

Product Type Thickness mm Weight g/m2 Weave
PW05 SS 0.5 455 Plain
666 SS 0.6 630 8H Satin
666 SS 0.6 630 8H Satin
M860W SS 0.8 820 Dougle Weft Yarn
M860 SS 0.75 820 8H Satin
M860C SS 0.8 820 Close To Satin
M30 SS 1.2 1050 Plain
Other thicknesses can be customized upon request



More Detail Images

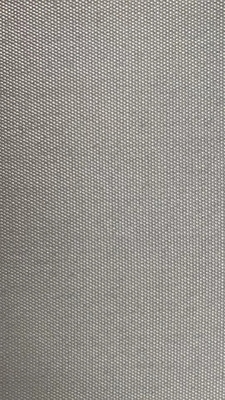

PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts 0

PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts 1



More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth





Packing

PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts 2

PW05 SS 0.5mm Thickness Plain Weave Fiberglass Cloth With 314 SS Wire Inserts 3



Why Choose Us?

With a complete industrial chain, we can totally control the product quality and delivery time.

High quality products

ISO9001 2015 Certification

100% Testing before shipment, All products must pass the factory test

Different Sized of materials can be provided according to customer needs





RFQ

1. How to get free samples?

A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.



2. Are your products certified?

A: Yes, we have a third party fire inspection report



3. How to package your product?

A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.



4. Are you a manufacturer?

A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
