Product Details:
|
| Product Name: | Reinforced Steel Wire Fiberglass Cloth | Width: | 1000 To 2000mm |
|---|---|---|---|
| Yarn Type: | E-glass Fiberglass Fabric With 314 Stainless Steel | Weave Structure: | Plain Weave |
| Application: | Welding Blanket, Fire Curtain | Satinless Type: | 314 Stainless Steel Wire |
| Standing Temperature: | -70-600Degree | Good Features: | Fireproof |
PW05 SS 0.5mm Woven Fiberglass Cloth With 314 SS Wire Inserts With PU Coating 0.5mm For Fire Blanket Smoke Curtains
Product Description
This is a kind of 0.5mm thickness thin S.S wire reinforced fiberglass fabric with a formulated polyurethane aluminum polymer which provides a heat reflecting surface as well as other properties for the manufacturer of smoke curtain, heat shield and other types of fire control systems.
Why we used 316/V4A stainless instead of 304 wire?
Type 304 stainless steel is the most common stainless steel formulation used in industrial and consumer applications. Alloyed with chromium and nickel, 304 is resistant to many corrosion attacks.
316 stainless steel is similar in chemical composition to 304 but also contains molybdenum. This addition makes it more resistant to corrosion.
In other words, 316 steel wire has higher tensile strength than 304, can provide higher temperature resistance, and can improve service life in harsh environments
Product Features
Nominal Width: 100/120cm
Nominal Weight: 520gsm
Nominal Thickness: 0.5mm
Base Cloth Temperature Resistance 600oC
Content: Warp: 100% Fiberglass Yarns
Fill: Stainless Steel Wire (314) Plied With Fiberglass Yarns
Weave can be one-directional (stainless is only inserted in warp yarn) or two-directional (stainless is inserted in both warp yarn and weft yarn)
Count Warp: 16
Fill: 9
Material should be tested for its suitability in any application. Users should also familiarize themselves with the SDS before handling.
Application
Fire and smoke curtains
Reusable heat insulation covers
Waterproof
800 degress heat resistance
Fire retardant
High Strength
Durable
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.55±0.05 mm |
| Cloth Weight | 520g/m2 |
| Treatment | PU 1 Side |
| Color for Coating | Silver Grey |
| Warp Yarn | 150 Tex + Stainless Wire |
| Weft Yarn | 150 Tex + Stainless Wire |
| Warp and Weft Density | 16*9 Ends/cm |
| Warp Tensile Strength [25*200mm] | 3400N/5cm |
| Weft Tensile Strength [25*200mm] | 3000N/5cm |
| Temperature Resistance | 600oC |
Much More Related Stainless Steel FIberglass Cloth
| Product Type | Thickness mm | Weight g/m2 | Weave |
| PW05 SS | 0.5 | 455 | Plain |
| 666 SS | 0.6 | 630 | 8H Satin |
| 666 SS | 0.6 | 630 | 8H Satin |
| M860W SS | 0.8 | 820 | Dougle Weft Yarn |
| M860 SS | 0.75 | 820 | 8H Satin |
| M860C SS | 0.8 | 820 | Close To Satin |
| M30 SS | 1.2 | 1050 | Plain |
| Other thicknesses can be customized upon request | |||

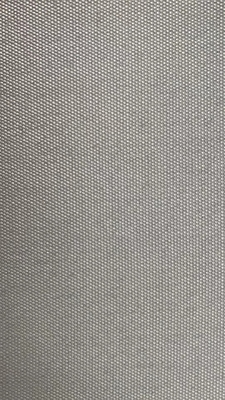

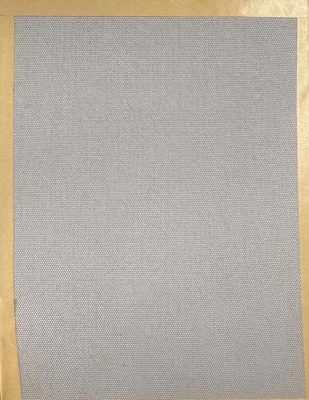

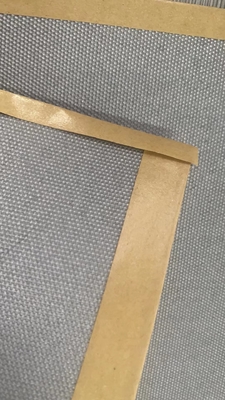

More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. Are you a factory or trading company?
A: We are a factory.
2. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
3. Are your products certified?
A: Yes, we have a third party fire inspection report
4. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
5. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
6. Q:Do you have other production?
A:Certainly,we still have E-glass fiberglass fabric, industry fiberglass cloth, High silica cloth, silicone, polyurethane, graphite, vercimiute, EPDM, fluoro,aluminium coated fiberglass cloth. We are looking forward to your enquiry.
