Product Details:
|
| Product Name: | Reinforced Steel Wire Fiberglass Cloth | Width: | 1000 To 2000mm |
|---|---|---|---|
| Yarn Type: | E-glass Fiberglass Fabric With 316 Stainless Steel | Weave Structure: | Plain Weave |
| Application: | Welding Blanket, Fire Curtain | Satinless Type: | 316 Stainless Steel Wire |
| Standing Temperature: | -70-600Degree | Good Features: | Fireproof |

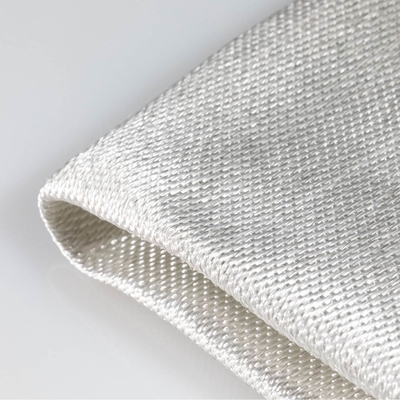

0.65mm 650 Stainless Steel Wire Reinforced Fiberglass Fiber Glass Cloth for Fireproof Curtain
Product Description
This fire-resistant fiberglass fabric is made of fiberglass fabric and polyurethane coating. It has many excellent characteristics such as excellent fire resistance. excellent wear resistance, cold resistance, water resistance, anti-ultraviolet, and mechanical properties. It can be used continuously at 180ºC. Jiangnan can supply other colors according to customers' requirements.
Product Features
Good rebound resilience
Toughness, softness
Superior resistance to wear, cold, oil, water, aging, and weather
Application
welding & fire protection
thermal insulation jackets,mattress
expansion joint belt
a protective scrim of insulation wool
composite reinforcement
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.6±0.05 mm |
| Cloth Weight | 520g/m2 |
| Warp Yarn | 150 Tex + Stainless Wire |
| Weft Yarn | 150 Tex + Stainless Wire |
| Warp and Weft Density | 39*38 Ends/In |
| Warp Tensile Strength [25*200mm] | 2200N/2.5cm |
| Weft Tensile Strength [25*200mm] | 2100N/2.5cm |
| Temperature Resistance | 600oC |
Much More Related Stainless Steel FIberglass Cloth
| Product Type | Thickness mm | Weight g/m2 | Weave |
| PW05 SS | 0.5 | 455 | Plain |
| 666 SS | 0.6 | 630 | 8H Satin |
| 666 C SS | 0.6 | 630 | 8H Satin |
| M860W SS | 0.8 | 820 | Dougle Weft Yarn |
| M860 SS | 0.75 | 820 | 8H Satin |
| M860C SS | 0.8 | 820 | Close To Satin |
| M30 SS | 1.2 | 1050 | Plain |
| Other thicknesses can be customized upon request | |||
More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire Fiberglass Cloth
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
