Product Details:
|
| Product Name: | Wire Reinforced Silicone Fiberglass Fabric For Fire Curtain | Width: | 1000 To 2000mm |
|---|---|---|---|
| Yarn Type: | E-glass Fiberglass Fabric With 316 Stainless Steel | Weave Structure: | Satin Weave |
| Feature: | High Temperature Resistant, Anti-abrasion | Satinless Type: | 316 Stainless Steel Wire |
| Standing Temperature: | 750℃ | Application: | Fire Curtains, Welding Blanket, Smoke Screen |

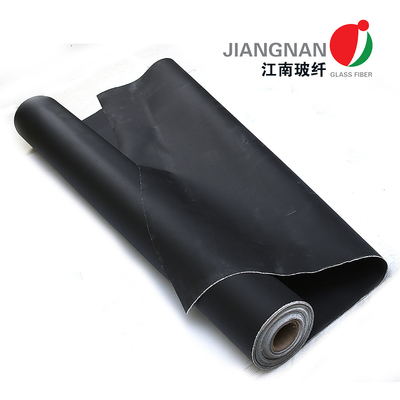

666 C SS Woven Fiberglass Fabric Reinforced With SS Wire With 2-Sides Black Silicone Coating
Product Description
Glass fiber cloth can be used as a fireproof material in industry. Fiberglass can withstand high temperatures. We use fiberglass yarn to produce fiberglass cloth. In order to increase the strength of the cloth. We mix fiberglass yarn with stainless steel wire. It is a unique glass fiber cloth, which can be used in various occasions such as shipbuilding industry, thermal power plant, indoor fire protection, etc. It can be easily cut into different shapes, and it is very convenient to use on the construction site.
| Total weight | 200 g/m2 to 2000 g/m2 |
| Thickness | 0.2 mm to 3mm |
| Color | grey, white or golden |
| Fire resistance | high temperature resistant |
| Working temperature | 650C |
| Coating | PU, vermiculite, silicone, or silica coated, etc. |
| Standard widths | from 100cm to 200cm or customized |
Product Features
|
Type
|
Stainless Steel Wire Reinforced Silicone Fiberglass Fabric For Fire Curtain
|
|
Thickness
|
0.65 mm (0.025 Inch)
|
|
Fabric Weight
|
700 g/sqm
|
|
Temperature
|
750℃
|
|
Feature
|
Flame Resistant
|
|
Anti Abrasion
|
|
|
High Temperature Resistant
|
|
|
Weatherproof
|
Application
High temperature resistant up to 750oC.
Good performence in spark & flame resistant.
Excellent anti abrasion property.
High puncture resistance, good tear strength resistance.
Halogen free, asbestos free, non-itchy.
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.6±0.05 mm |
| Cloth Weight | 520g/m2 |
| Warp Yarn | 150 Tex + Stainless Wire |
| Weft Yarn | 150 Tex + Stainless Wire |
| Warp and Weft Density | 39*38 Ends/In |
| Warp Tensile Strength [25*200mm] | 2200N/2.5cm |
| Weft Tensile Strength [25*200mm] | 2100N/2.5cm |
| Temperature Resistance | 600oC |
Much More Related Stainless Steel FIberglass Cloth
| Product Type | Thickness mm | Weight g/m2 | Weave |
| PW05 SS | 0.5 | 455 | Plain |
| 666 SS | 0.6 | 630 | 8H Satin |
| 666 C SS | 0.6 | 630 | 8H Satin |
| M860W SS | 0.8 | 820 | Dougle Weft Yarn |
| M860 SS | 0.75 | 820 | 8H Satin |
| M860C SS | 0.8 | 820 | Close To Satin |
| M30 SS | 1.2 | 1050 | Plain |
| Other thicknesses can be customized upon request | |||

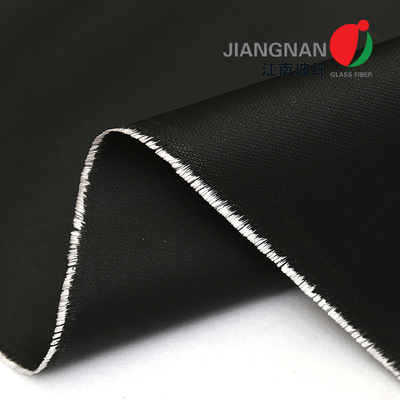

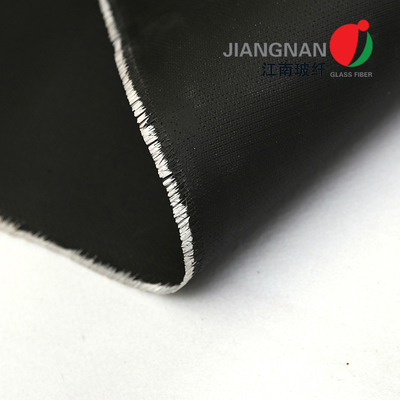

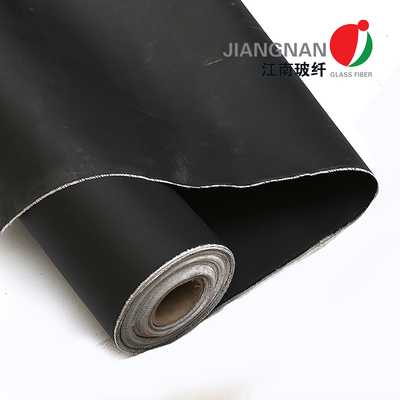

More Detail Images
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
