Product Details:
|
| Product Name: | Wire Reinforced Fiberglass Fabric For Fire Curtain | Width: | 1000 To 2000mm |
|---|---|---|---|
| Yarn Type: | E-glass Fiberglass Fabric With 316 Stainless Steel | Weave Structure: | Satin Weave |
| Feature: | High Temperature Resistant, Anti-abrasion | Satinless Type: | 316 Stainless Steel Wire |
| Standing Temperature: | 750℃ | Application: | Fire Curtains, Welding Blanket, Smoke Screen |

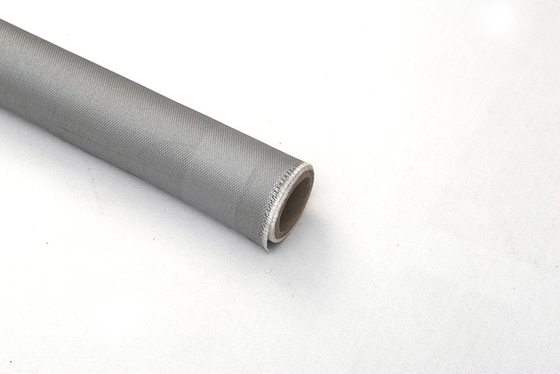

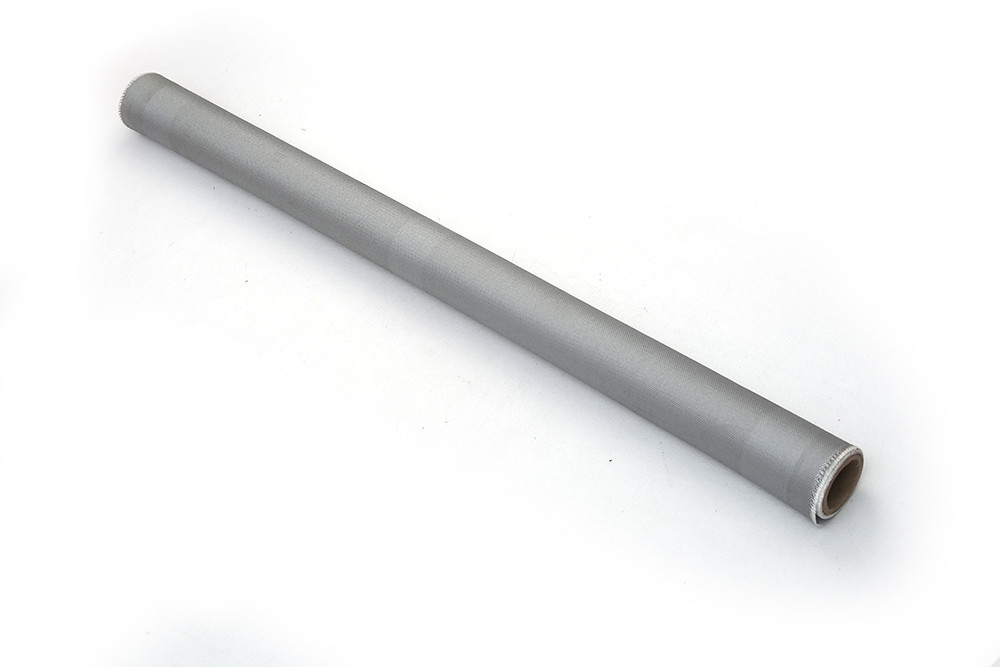

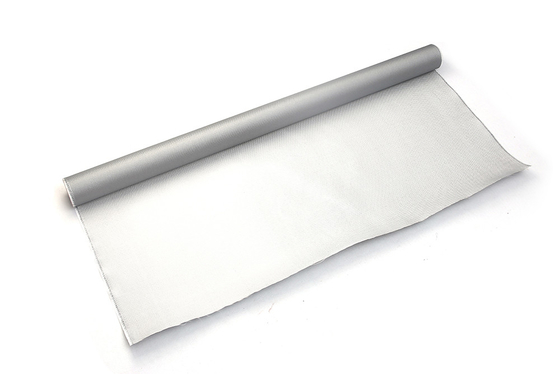

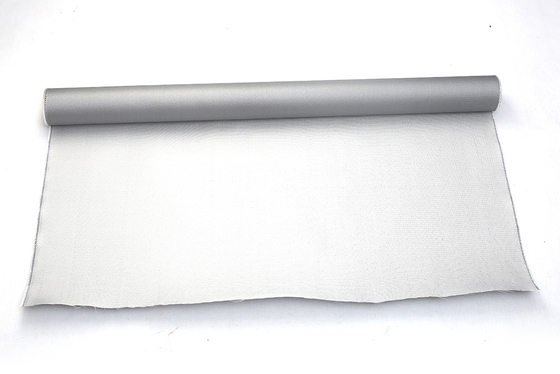

Grey Polyurethane PU Coated Fiberglass Cloth 0.9mm For Welding Blanket
Product Description
This fabric is made from woven fiber glass cloth and then coated with white polyurethane coating on both sides. Total weight of this PU coated glass fabric is 900g/m2. Basic cloth is 8HS fiberglass fabric. It is 600g/m2 and 0.6mm thick. When coated with 150g/m2 PU coating each side, totally weight per unit can be 900gsm, and thickness will be 0.9mm.
Usually common coated fiberglass fabric like silicone/PVC coated fabric can be used below 260℃. While PU coating can work under instantaneous temperature up to 1100 degree Celsius. So it is very suitable for welding protection, good for fire blanket/curtain. Whats's more, PU coated fiberglass fabric also have good properties like chemical resistance, high strength, non itchy, colorful coating.
The eight harness satin is similar to the four harness satin. One weft yarn floats over seven warp yarns and under one. This is a flexible weave and common application of this weave type is for forming over curved surfaces.
M850 fiberglass fabric is a heavy duty basic cloth and is usually used for fire blanket. When coatded with PU coating(PU coating can resist 1100℃ for a short time), this coated M850 fabric is very suitable for welding blanket. Especially for welding splash protection.
50g/m2 PU coating on each side
Pu coating withstand 1100℃ instantaneously
Coated fiberglass fabric resist most acids
Chemical/Oil resistant
Washable, durable
Heat resistant
| Total weight | 200 g/m2 to 2000 g/m2 |
| Thickness | 0.2 mm to 3mm |
| Color | grey, white or golden |
| Fire resistance | high temperature resistant |
| Working temperature | 650C |
| Coating | PU, vermiculite, silicone, or silica coated, etc. |
| Standard widths | from 100cm to 200cm or customized |
Product Features
|
M860 2-Sides PU Coating |
|
|
Items |
Technical Requirement |
|
Width |
121cm |
|
Cloth Thickness |
0.8±0.05 mm |
|
Cloth Weight |
820±20 gsm |
| Polyurethane Coating Weight | 50±10 gsm |
|
Warp Yarn |
68Tex 1*2+Stainless Wire |
|
Weft Yarn |
136Tex 1*2+Stainless Wire |
|
Warp and Weft Density |
16*15 /cm |
|
Weave |
8H Satin |
Slimline and able to be concealed in walls and ceilings
Bespoke sizes, made to measure to fit
Application
Welding blanket
Fire curtain / doors
Expansion joints
Disposal of dust
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.6±0.05 mm |
| Cloth Weight | 520g/m2 |
| Warp Yarn | 150 Tex + Stainless Wire |
| Weft Yarn | 150 Tex + Stainless Wire |
| Warp and Weft Density | 39*38 Ends/In |
| Warp Tensile Strength [25*200mm] | 2200N/2.5cm |
| Weft Tensile Strength [25*200mm] | 2100N/2.5cm |
| Temperature Resistance | 600oC |
Much More Related Stainless Steel FIberglass Cloth
| Product Type | Thickness mm | Weight g/m2 | Weave |
| PW05 SS | 0.5 | 455 | Plain |
| 666 SS | 0.6 | 630 | 8H Satin |
| 666 C SS | 0.6 | 630 | 8H Satin |
| M860W SS | 0.8 | 820 | Dougle Weft Yarn |
| M860 SS | 0.75 | 820 | 8H Satin |
| M860C SS | 0.8 | 820 | Close To Satin |
| M30 SS | 1.2 | 1050 | Plain |
| Other thicknesses can be customized upon request | |||
More Detail Images
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
