Product Details:
|
| Product Name: | 28x38cm Large Fireproof Document Bags | Inner Layer: | Aluminium Foil Fiberglass Fabric |
|---|---|---|---|
| Outside Layer: | Silicone Coated Fiberglass Fabric | Temperature Resistance: | Cloth: 550℃, Glue For Alu. Foil: 300℃ |
| Application: | Fireproof Bag, Fireproof Document Bag, Fire Gear Bag | Feature: | High Temperature Resistance, Fireproof, Water Resistant |
| Size: | 11x15" (28x38cm, For Common Document Size) | Keywords: | Fireproof Bag, Fire Resistant Pouch |
| High Light: | 28x38cm Fireproof File Bag,Silicone Coated Fireproof Document Bags,Customized Fireproof File Bag |
||
28x38cm Large Fireproof Document Bags Valuables Waterproof Pouch Customized
1. Description

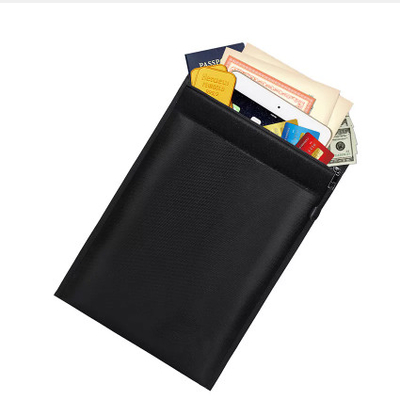

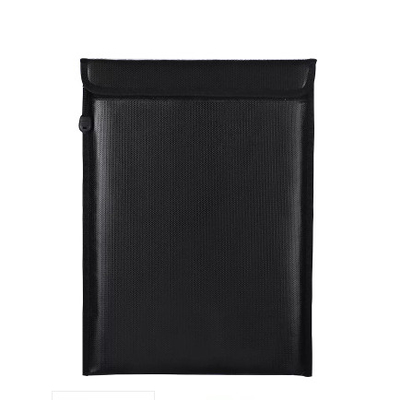

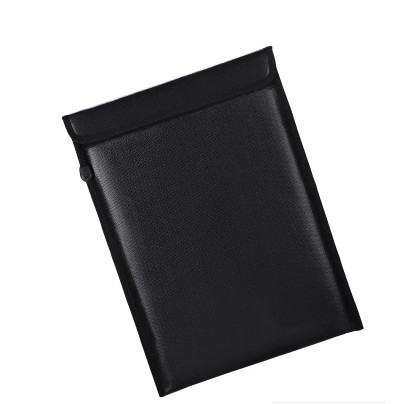

This is a fireproof safe bag, designed to protect important documents, money cash, passports, and other credentials from fire damage. It's 28x38cm and it's large enough for a common size document(A4 paper).
| Materials |
Aluminum Foil Fiberglass Fabric Silicone Coated Fiberglass Fabrics 60g/m2 White Fire Retardant Non-Woven Fabrics |
| Open With | Fire Retardant Hook And Loop |
| size | 17x27cm, 10.6"x 6.7", Customized |
| Color | Silver, Black, Blue, or Customized |
| Work Temperature | Fiberglass Cloth: 550℃(1022℉) Adhesive For Foil: 300℃(572℉) Coating: inside silicone coating below 260℃(500℉) |
| Application | Money Cash/Document Fireproof Bag, Fire Resistant Pouch |
2. Introduce This Product
Inside materials can be decided by customers. There is a lot of different fabrics that can be used as the inner lining of this fireproof bag. Please check as follows:
White Woven Fiberglass Fabric
Black Fire Retardant Fabric
Aluminium Coated Fiberglass Fabric
Silicone Coated Fiberglass Fabric
Pu Coated Fiberglass Fabric
3. Technical Details
| Item No. | AL-3732 | ||
|---|---|---|---|
| Description | Aluminium Coated Glass Fiber | ||
| Weave | Satin | ||
| Yarn Tex | Warp | EC9 33 2X2 | ECG 150 2/2 |
| Weft | EC9 33 2X2 | ECG 150 2/2 | |
| Weight | 430 gsm | 12.7 OZ/YD2 | |
| Thickness | 0.43 mm | 0.017 inch | |
| Thread Count | Warp | 18 per cm | 45 per inch |
| Weft | 13 per cm | 33 per inch | |
| Coating | Aluminum Foil | ||
| Coating Thickness | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil | |
|
Tensile Strength |
Warp | 6000 N/5cm | 666 lbs/inch |
| Weft | 4500 N/5cm | 500 lbs/inch | |
| Width | 101.6cm | 40 inch | |
| 121.9cm | 48 inch | ||
| 152.4cm | 60 inch | ||
| Service Temperature |
Fiberglass is 550℃ While mucilage is 300℃ |
||
| Item Model | Silicone Coating Cloth | |
| Description | Fireproof cloth | |
| Weave Structure | Twill Weave | |
| Cloth Weight | 430gsm | |
| Silicone Coating Weight | 80g/m2 | |
| Thickness | 0.5mm | |
| Yarn Type | Warp | EC9 68 1*2 |
| Weft | EC9 68 1*2 | |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 12±1 picks/cm | |
| Break Strength | Warp | 700N/cm |
| Weft | 600N/cm | |
| Weave Structure | Twill Weave | |
| Aluminum Foil Thickness | 9μm | |
| Weight | 430 gsm | |
| Thickness | 0.4mm | |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 12±1 picks/cm | |
| Break Strength | Warp | 700 N/cm |
| Weft | 600 N/cm | |
| Color | Silver | |
| Working Temperature | ≤300℃ | |
4. Properties
17x27cm, 10.6"x 6.7"
Fiberglass fabric laminated with aluminum foil on one side
The mirror-like surface reflects 95% of the radiant heat to which it is exposed
Base fiberglass fabric can withstand continuous temperatures of 1022 F (550 C)
The white material inside is a non-woven flame retardant fabric.
5. Application:
Lightweight fire and water-resistant bags are the best document safe you can get at home or in the office. It has been independently rated to last longer in high-temperature fires and will keep its contents dry longer when submerged in water. That means it has the greatest potential of any document safe we've seen to keep your stuff - including irreplaceable documents, photos, and essentials like passports and birth certificates
