Product Details:
|
| Product Name: | Fiberglass Fabric Fireproof Document Bag | Inner Layer: | Aluminium Foil Fiberglass Fabric |
|---|---|---|---|
| Outside Layer: | Silicone Coated Fiberglass Fabric | Temperature Resistance: | Cloth: 550℃, Glue For Alu. Foil: 300℃ |
| Application: | Fireproof Bag, Fireproof Document Bag, Fire Gear Bag | Feature: | High Temperature Resistance, Fireproof, Water Resistant |
| Size: | 11x15" (28x38cm, For Common Document Size) | Keywords: | Fireproof Bag, Fire Resistant Pouch |
| High Light: | Fiberglass Fabric Fireproof Document Bag,fireproof document holder,Fireproof Document Bag Portable |
||

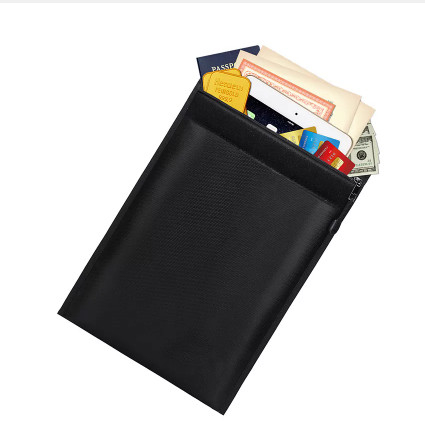

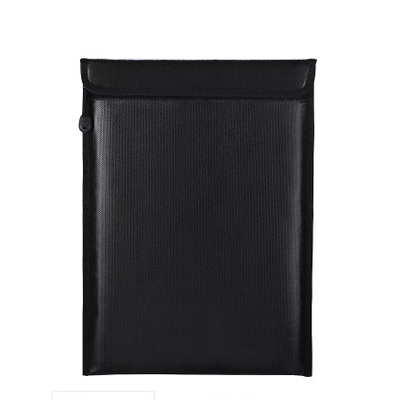

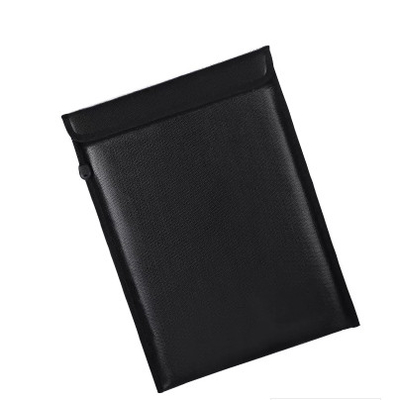

Silver + Grey Inside Fiberglass Fabric Fireproof Document Bag Portable
1. Description
It is a 29x38cm, 11x15 inch aluminum foil fireproof bag. Suitable for A4 paper. If you need other sizes, please contact me for custom products.
Fire Retardant Materials Inner and outside Lining:
White Non-Woven Fabric
Silicone Coated Fiberglass Fabric(with different thicknesses)
PU Coated 100% carbon fiber fabric(also used as bag inner lining by some luxury brands)
Other coated fiberglass fabric. (coated fiberglass fabric is not itchy)
2. Introduce This Product
Inside materials can be decided by customers. There is a lot of different fabrics that can be used as the inner lining of this fireproof bag. Please check as follows:
White Woven Fiberglass Fabric
Black Fire Retardant Fabric
Aluminium Coated Fiberglass Fabric
Silicone Coated Fiberglass Fabric
Pu Coated Fiberglass Fabric
3. Technical Details
| Item No. | AL-3732 | ||
|---|---|---|---|
| Description | Aluminium Coated Glass Fiber | ||
| Weave | Satin | ||
| Yarn Tex | Warp | EC9 33 2X2 | ECG 150 2/2 |
| Weft | EC9 33 2X2 | ECG 150 2/2 | |
| Weight | 430 gsm | 12.7 OZ/YD2 | |
| Thickness | 0.43 mm | 0.017 inch | |
| Thread Count | Warp | 18 per cm | 45 per inch |
| Weft | 13 per cm | 33 per inch | |
| Coating | Aluminum Foil | ||
| Coating Thickness | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil | |
|
Tensile Strength |
Warp | 6000 N/5cm | 666 lbs/inch |
| Weft | 4500 N/5cm | 500 lbs/inch | |
| Width | 101.6cm | 40 inch | |
| 121.9cm | 48 inch | ||
| 152.4cm | 60 inch | ||
| Service Temperature |
Fiberglass is 550℃ While mucilage is 300℃ |
||
| Item Model | Silicone Coating Cloth | |
| Description | Fireproof cloth | |
| Weave Structure | Twill Weave | |
| Cloth Weight | 430gsm | |
| Silicone Coating Weight | 80g/m2 | |
| Thickness | 0.5mm | |
| Yarn Type | Warp | EC9 68 1*2 |
| Weft | EC9 68 1*2 | |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 12±1 picks/cm | |
| Break Strength | Warp | 700N/cm |
| Weft | 600N/cm | |
| Weave Structure | Twill Weave | |
| Aluminum Foil Thickness | 9μm | |
| Weight | 430 gsm | |
| Thickness | 0.4mm | |
| Thread Count | Warp | 18±1 ends/cm |
| Weft | 12±1 picks/cm | |
| Break Strength | Warp | 700 N/cm |
| Weft | 600 N/cm | |
| Color | Silver | |
| Working Temperature | ≤300℃ | |
4. Properties
17x27cm, 10.6"x 6.7"
Fiberglass fabric laminated with aluminum foil on one side
The mirror-like surface reflects 95% of the radiant heat to which it is exposed
Base fiberglass fabric can withstand continuous temperatures of 1022 F (550 C)
The white material inside is a non-woven flame retardant fabric.
5. Application:
Lightweight fire and water-resistant bags are the best document safe you can get at home or in the office. It has been independently rated to last longer in high-temperature fires and will keep its contents dry longer when submerged in water. That means it has the greatest potential of any document safe we've seen to keep your stuff - including irreplaceable documents, photos, and essentials like passports and birth certificates
