Product Details:
|
| Features: | Good Acid And Alkaline Resistance | Product Name: | Fiberglass Filter Fiberglass Cloth |
|---|---|---|---|
| Feature: | Good Acid And Alkaline Resistance | Weight: | 750gsm |
| Material: | Fiberglass Cloth | Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works |
| Thickness: | 0.75mm | Working Temperature: | 550 Degrees |
| High Light: | 60um Glass Fiber Filters,0.75mm glass fibre fabric,15um Glass Fiber Filters |
||

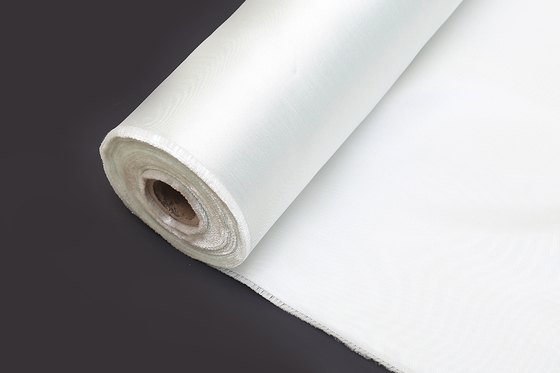

15-60μm With High Porosity Glass Fiber Filters Used for Air Condition Systems
Product Description:
Thanks to our extensive domain expertise, we are manufacturing a range of high-quality dust filter cloths. These filter cloths are used to collect dust and filtration of various chemicals in related industries. Due to smooth materials, reliability, and durability, our fabric collections are in wide demand worldwide. Quality tests are performed on a variety of parameters, which are available in a variety of standard and custom designs.
Features:
High-temperature resistance, glass fiber filter material has a good heat resistance and can be used at high temperatures of 260-280 ℃. This not only saves the cost of flue gas cooling of the dust collector but also reduces the risk of condensation.
Fiberglass fabric does not shrink when the operating temperature is below 280°C, and it has better dimensional stability than organic synthetic fibers.
Application:
Glass Fiber Filters - These are glass mat filters composed of 15–60 μm glass fibers with high porosity. These are the most commonly used filters in residential furnaces and air conditioning systems. They are low cost. Their purpose is to protect the system from debris that can damage air system components such as fans, motors, cooling coils, and heat exchangers.
The Technique for Style 7577 Fiberglass Filter Fabric Cloth
| Style 7577 | ||
| Item Model | 7577 Filter Fiberglass Cloth | |
| Description | Woven Fiberglass Cloth | |
| Weight | 730±15gsm | |
| Width | 1650±10mm | |
| Thickness | 0.72mm | |
| Yarn Type | Warp | DE75-1/2 150TEX |
| Weft | ET6-285R 153 TEX | |
| Thread Count | Warp | 48±2 ends/In |
| Weft | 38±2 picks/In | |
| Break Strength | Warp | 2200 N/2.5cm |
| Weft | 2200 N/2.5cm | |
| Length | 610m | |
| LOI | < 0.4% | |
| Working Temperature | ≤550℃ | |
How to choose glass fiber filter material cloth?
| Fabric thickness (mm) | 0.3 | 0.4 | 0.5 | 0.7 |
| Fabric Weight | 320 | 390 | 435 | 730 |
| Filtration Airspeed (m/min) | ≤0.4 | ≤0.45 | ≤0.5 | ≤0.7 |
Specifications:
Weight: 350gsm-750gsm
Finishing treatment: Make to order depending on the special condition of the dust collector
Work temp: 260-280ºC
Excellent acids, caustics, solvent, hydrocarbons, and abrasion resistance;
Well Hydrolysis resistance, excellent strength, oxidative resistance
Emission concentration : <50mg/m3
Service life: 1-2years
Why choose us?
First of all, We choose the raw fiberglass yarn from China's top 4 fiberglass manufacturers – China Jushi Co., Ltd. Chongqing Fiberglass, Taishan Fiberglass, and Taiwan glass company.
Secondly, We have enough high-speed looms to meet the output and product quality.
Finally, We specialize in the production of various fiberglass-based fabric products and provide Silicone, and PTFE coating treatment to customers in the United States and Europe
