Product Details:
|
| Features: | Good Acid And Alkaline Resistance | Product Name: | Fiberglass Filter Fiberglass Cloth |
|---|---|---|---|
| Feature: | Good Acid And Alkaline Resistance | Weight: | 750gsm |
| Material: | Fiberglass Cloth | Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works |
| Thickness: | 0.75mm | Working Temperature: | 550 Degrees |
| High Light: | Fiberglass Industrial Filter Cloth,Acid resistance fiber glass fabric,Industrial Filter Cloth 10 Micron |
||

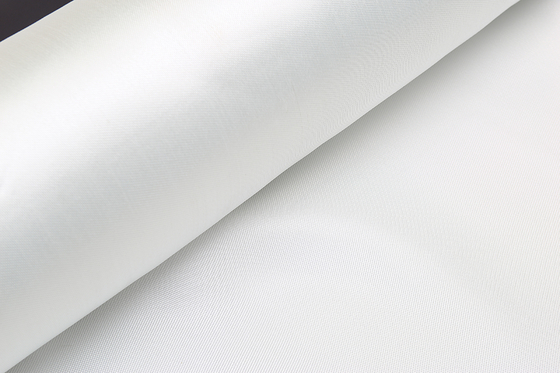

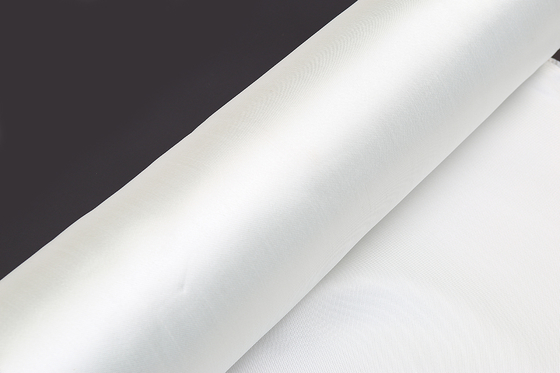

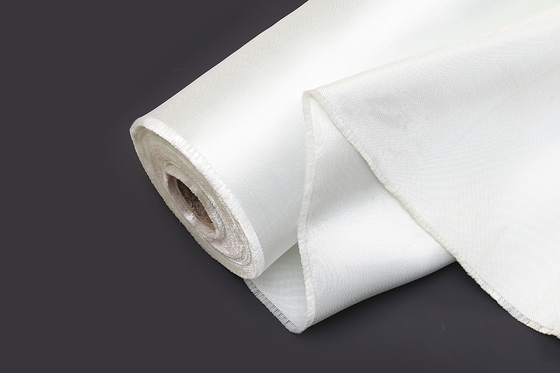

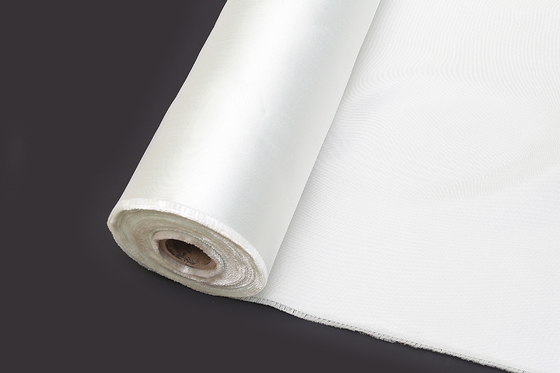

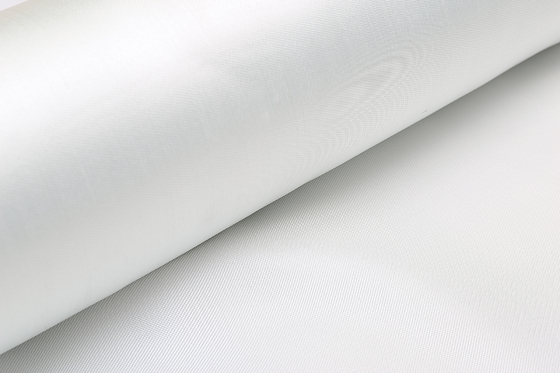

Fiberglass Material Industrial Filter Cloth For Dust Collector 10 Micron
Product Description:
Fiberglass Filter Dust Collector Filter Bag removes dust particles from the air and makes a clean and healthy environment to work. This filter bag is precisely manufactured by utilizing the finest quality raw material under the guidance of our adroit professionals. We also offer this bag to our esteemed clients with various specifications according to their requirements.
Features:
High-temperature resistance, glass fiber filter material has a good heat resistance and can be used at high temperatures of 260-280 ℃. This not only saves the cost of flue gas cooling of the dust collector but also reduces the risk of condensation.
Fiberglass fabric does not shrink when the operating temperature is below 280°C, and it has better dimensional stability than organic synthetic fibers.
Application:
Glass Fiber Filters - These are glass mat filters composed of 15–60 μm glass fibers with high porosity. These are the most commonly used filters in residential furnaces and air conditioning systems. They are low cost. Their purpose is to protect the system from debris that can damage air system components such as fans, motors, cooling coils, and heat exchangers.
The Technique for Style 7577 Fiberglass Filter Fabric Cloth
| Style 7577 | ||
| Item Model | 7577 Filter Fiberglass Cloth | |
| Description | Woven Fiberglass Cloth | |
| Weight | 730±15gsm | |
| Width | 1650±10mm | |
| Thickness | 0.72mm | |
| Yarn Type | Warp | DE75-1/2 150TEX |
| Weft | ET6-285R 153 TEX | |
| Thread Count | Warp | 48±2 ends/In |
| Weft | 38±2 picks/In | |
| Break Strength | Warp | 2200 N/2.5cm |
| Weft | 2200 N/2.5cm | |
| Length | 610m | |
| LOI | < 0.4% | |
| Working Temperature | ≤550℃ | |
How to choose glass fiber filter material cloth?
| Fabric thickness (mm) | 0.3 | 0.4 | 0.5 | 0.7 |
| Fabric Weight | 320 | 390 | 435 | 730 |
| Filtration Airspeed (m/min) | ≤0.4 | ≤0.45 | ≤0.5 | ≤0.7 |
Specifications:
Weight: 350gsm-750gsm
Finishing treatment: Make to order depending on the special condition of the dust collector
Work temp: 260-280ºC
Excellent acids, caustics, solvent, hydrocarbons, and abrasion resistance;
Well Hydrolysis resistance, excellent strength, oxidative resistance
Emission concentration : <50mg/m3
Service life: 1-2years
Why choose us?
First of all, We choose the raw fiberglass yarn from China's top 4 fiberglass manufacturers – China Jushi Co., Ltd. Chongqing Fiberglass, Taishan Fiberglass, and Taiwan glass company.
Secondly, We have enough high-speed looms to meet the output and product quality.
Finally, We specialize in the production of various fiberglass-based fabric products and provide Silicone, and PTFE coating treatment to customers in the United States and Europe
