Product Details:
|
| Product Name: | EW390-1 Filter Fiberglass Cloth | Feature: | Good Structural Stability |
|---|---|---|---|
| Weight: | 390gsm | Thread Count: | 54*28 Ends/Inch |
| Application: | Flame Retardant Fireproof Good Thermal Insulation | Proterties: | Good Performance In High Heat |
| Thickness: | 0.3mm | Working Temperature: | 550 Degrees |
| High Light: | 390gsm Fiberglass Filter Cloth,550 Degrees Fiber Glass Fabric,0.3mm fiberglass cloth roll |
||

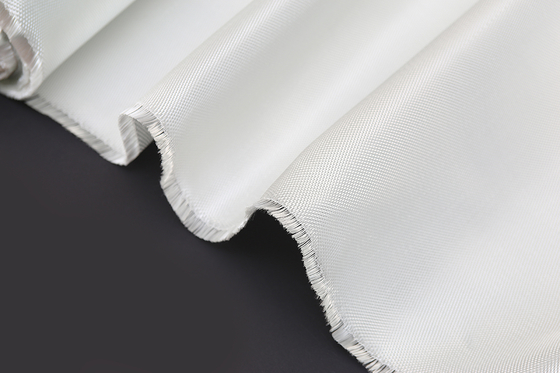

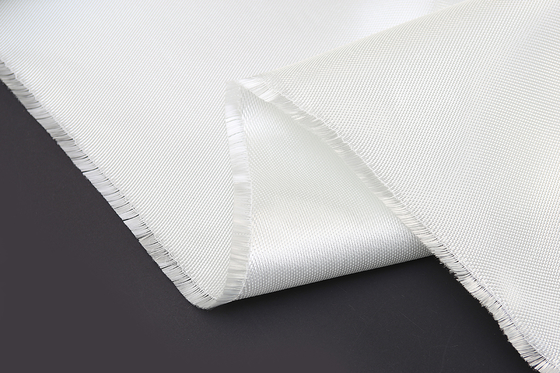

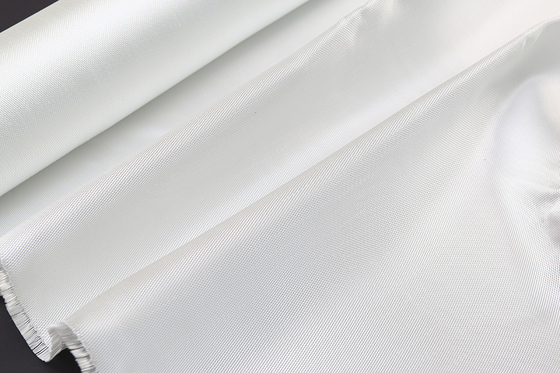

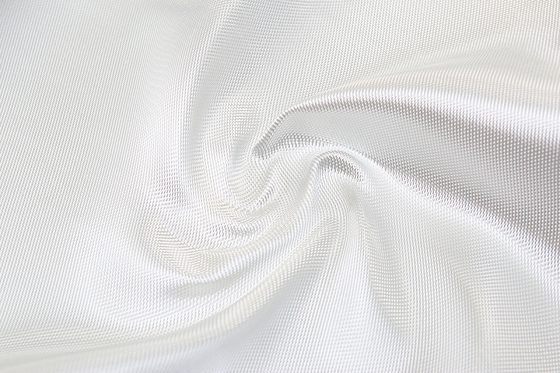

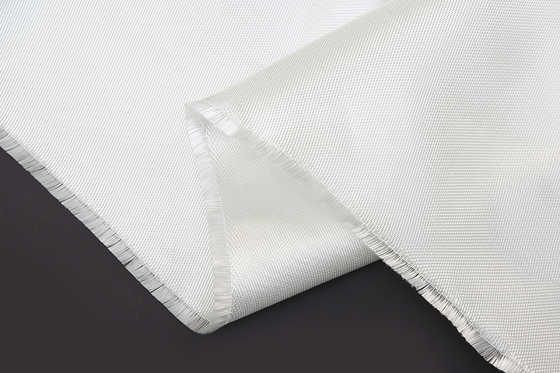

EW390-1 High-Temperature Resistance Mica Base Cloth Plain Fiberglass Cloth Fabric
Product Description:
E-glass fiberglass fabric (cloth) is characterized by good wet-out, high strength, corrosion-resistant, insulation, etc.
E-glass fiberglass fabric (cloth) is widely uesd in aircraft and spaceflight industry, ship industry, chemical industry, medicalindustry, military industry, sports goods, etc. It is available in manufacturing FRP fishing pole, golf pole, baseball pole, surfboard, sailboard, skis, ice stick, etc.
Features:
Good performance in high heat, flame resistance, and insulation
High performance in tensile strength
Good fabric stiffness, goof flatness
Decay Resistance
High intensity and quick wet out
Perfect designable character
Anti-corrosion and electric insulation
Application:
Good material for produce surfboard, sailboard, boat hull, FRP tank, swimming pools, car bodies, and other FRP products.
The high performance fabrics (cloth) is made of treated E-glass yarn or roving by plain, twill, satin weaving style. It can be compatible with polyester, epoxy and vinylester resins. It is widely used to produce surfboard, sailboard, boat hull, FRP tank, swimming pools, car bodies, FRP pipe as well as other FRP products.
The Technique for Style EW390 Fiberglass Filter Fabric Cloth
| Style EW390-101 | ||
| Item Model | EW390-101 Filter Fiberglass Cloth | |
| Description | Woven Fiberglass Cloth | |
| Weight | 390±15gsm | |
| Width | 1016±10mm | |
| Thickness | 0.3mm | |
| Yarn Type | Warp | DE75 |
| Weft | ET6-200S/FT | |
| Thread Count | Warp | 54±2 ends/In |
| Weft | 28±2 picks/In | |
| Break Strength | Warp | 1750 N/2.5cm |
| Weft | 1400 N/2.5cm | |
| Length | 250m | |
| LOI | < 0.4% | |
| Working Temperature | ≤550℃ | |
How to choose glass fiber filter material cloth?
| Fabric thickness (mm) | 0.3 | 0.4 | 0.5 | 0.7 |
| Fabric Weight | 320 | 390 | 435 | 730 |
| Filtration Airspeed (m/min) | ≤0.4 | ≤0.45 | ≤0.5 | ≤0.7 |
Specifications:
Weight: 350gsm-750gsm
Finishing treatment: Make to order depending on the special condition of the dust collector
Work temp: 260-280ºC
Excellent acids, caustics, solvent, hydrocarbons, and abrasion resistance;
Well Hydrolysis resistance, excellent strength, oxidative resistance
Emission concentration : <50mg/m3
Service life: 1-2years
Why choose us?
First of all, We choose the raw fiberglass yarn from China's top 4 fiberglass manufacturers – China Jushi Co., Ltd. Chongqing Fiberglass, Taishan Fiberglass, and Taiwan glass company.
Secondly, We have enough high-speed looms to meet the output and product quality.
Finally, We specialize in the production of various fiberglass-based fabric products and provide Silicone, and PTFE coating treatment to customers in the United States and Europe
Weaving:
Advanced air-saving performance and equipment operating costs are greatly reduced. Simple operation interface, advanced management system, automatic output monitoring, real-time production scheduling.
