Product Details:
|
| Product Name: | EW390-1 Filter Fiberglass Cloth | Feature: | Good Structural Stability |
|---|---|---|---|
| Weight: | 390gsm | Thread Count: | 54*28 Ends/Inch |
| Application: | Flame Retardant Fireproof Good Thermal Insulation | Proterties: | Good Performance In High Heat |
| Thickness: | 0.3mm | Working Temperature: | 550 Degrees |
| High Light: | 390GSM Fiberglass Filter Cloth,0.3mm industrial filter cloth,Acid Resistance Fiberglass Filter Cloth |
||

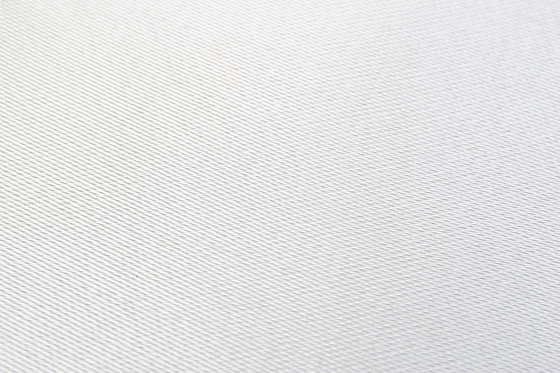

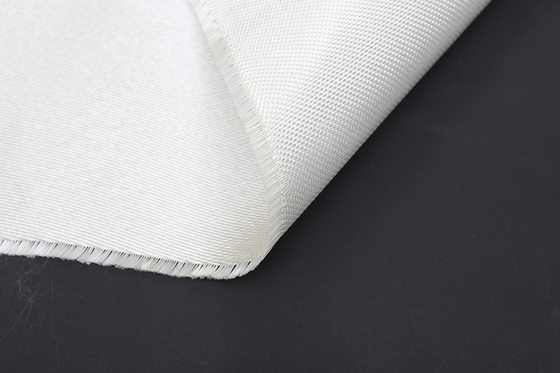

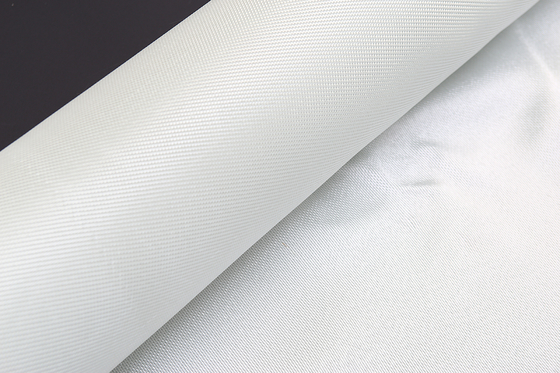

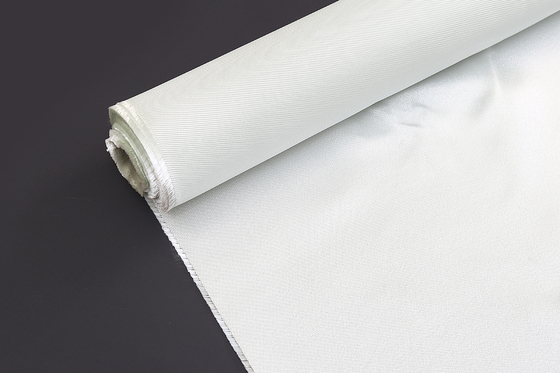

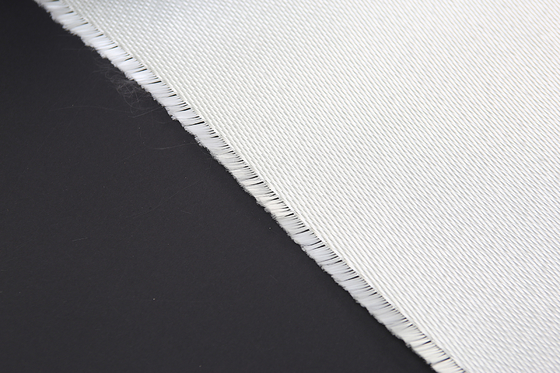

390GSM Industry Filter Cloth Fiberglass Filter Cloth Acid and Alkaline Resistance
Product Description:
Fiberglass Cloth is a kind of flat rib two-way reinforced fabric woven by the twisting rove by machine. It is a high-performance environmental protection material.
Features:
High strength and high modulus
Lightweight and fatigue resistance
Abrasion and corrosion resistance
Good heat shock resistance
High-temperature resistance
Good electrical conductivity
Excellent dimensional stability
Small thermal expansion coefficient
Application:
Coal - Fired Boilers bag houses Calciners / Catalysts.
Municipal Solid Waste Boilers and Waste incinerator.
Electric power plant Electrolysis and other Specialty membranes.
Waste to energy Iron and nonferrous Metal Industry.
The Technique for Style EW390 Fiberglass Filter Fabric Cloth
| Style EW390-101 | ||
| Item Model | EW390-101 Filter Fiberglass Cloth | |
| Description | Woven Fiberglass Cloth | |
| Weight | 390±15gsm | |
| Width | 1016±10mm | |
| Thickness | 0.3mm | |
| Yarn Type | Warp | DE75 |
| Weft | ET6-200S/FT | |
| Thread Count | Warp | 54±2 ends/In |
| Weft | 28±2 picks/In | |
| Break Strength | Warp | 1750 N/2.5cm |
| Weft | 1400 N/2.5cm | |
| Length | 250m | |
| LOI | < 0.4% | |
| Working Temperature | ≤550℃ | |
How to choose glass fiber filter material cloth?
| Fabric thickness (mm) | 0.3 | 0.4 | 0.5 | 0.7 |
| Fabric Weight | 320 | 390 | 435 | 730 |
| Filtration Airspeed (m/min) | ≤0.4 | ≤0.45 | ≤0.5 | ≤0.7 |
Specifications:
Weight: 350gsm-750gsm
Finishing treatment: Make to order depending on the special condition of the dust collector
Work temp: 260-280ºC
Excellent acids, caustics, solvent, hydrocarbons, and abrasion resistance;
Well Hydrolysis resistance, excellent strength, oxidative resistance
Emission concentration : <50mg/m3
Service life: 1-2years
Why choose us?
First of all, We choose the raw fiberglass yarn from China's top 4 fiberglass manufacturers – China Jushi Co., Ltd. Chongqing Fiberglass, Taishan Fiberglass, and Taiwan glass company.
Secondly, We have enough high-speed looms to meet the output and product quality.
Finally, We specialize in the production of various fiberglass-based fabric products and provide Silicone, and PTFE coating treatment to customers in the United States and Europe
Weaving:
Advanced air-saving performance and equipment operating costs are greatly reduced. Simple operation interface, advanced management system, automatic output monitoring, real-time production scheduling.
