Product Details:
|
| Product Name: | Thermal Insulation Fabric | Color: | White |
|---|---|---|---|
| Weave Structure: | Broken Twill | Coating: | 100% Fiberglass Cloth |
| Yarn Type: | E-glass | Thickness: | 0.43mm |
| Weight: | 430g/m2 | Width: | 1m/1.3m/1.5m/1.52m/1.55m |
| High Light: | Broken Twill Thermal Insulation Fabric,High Temp Insulation Fiberglass Cloth,430gsm Thermal Insulation Fabric |
||
High-Temperature Resistance Thermal Insulation Fiberglass Cloth And Fabric Insulation
1. Description
Fiberglass cloth consists of woven glass fibers, giving this fabric high tensile strength, dimensional stability, and high heat and fire resistance. Fiberglass fabric insulation is a high-temperature thermal insulation material that will not burn and can withstand temperatures up to 1000°F. Fiberglass cloth insulation can be used to protect insulated equipment and pipes. It can be purchased as a lagging, resettable, or impregnated cloth. Laminated fiberglass cloth is a high-impact fiberglass fabric commonly used to repair and cover insulation on pipes. Resettable fiberglass cloth coated with a specially designed adhesive can be molded into any shape when wet and allowed to dry into the molded form. Impregnated fiberglass cloth is a fiberglass cloth that is coated with and impregnated with a solution.
2. Properties
Fiberglass cloth is an engineering material, which has excellent merit such as anti-burns, anti-corrosion, stable-size, heat-isolation, minimum elongated shrinkage, high intensity, this new material product has already covered many domains such as electric appliances, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention, and environmental protection.
3. Fiberglass Cloth Application
7628 fiberglass cloth is an indispensable textile reinforcing material in the production of copper-clad laminate (CCL) substrate and prepreg. Copper-clad laminates are made of glass fiber cloth, epoxy resin, and electrolytic copper foil. They are used to support and connect electronic components of special electronic products and are widely used in military, aerospace, and household appliances.

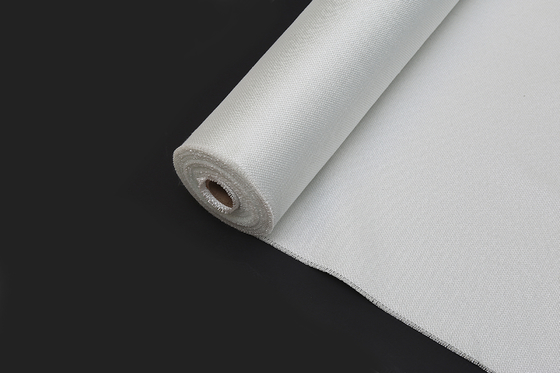

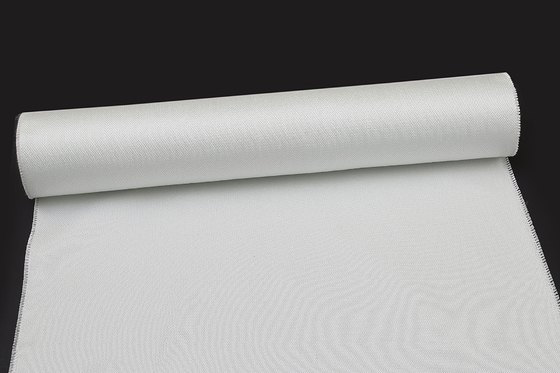

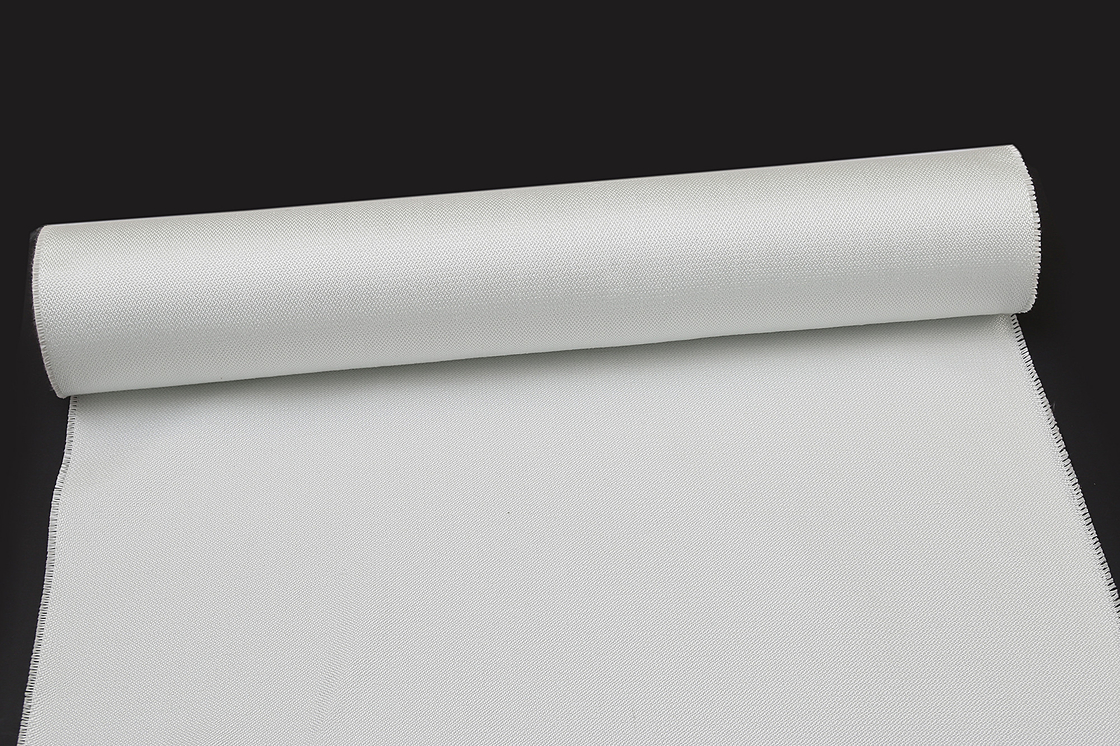

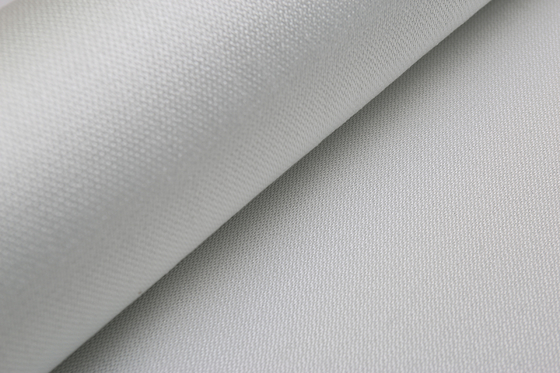

4. Detail Style 7628 Fiberglass Cloth Image
5. Data Sheet for 7628 Fiberglass Cloth
| Specification-7628 | |||
| NO. | Technical Data | Style 7628 | |
| 1 | Weave Pattern | Plain | |
| 2 | Fabric Weight, g/m2 | 210 | ±5 |
| 3 | Width ,mm | 1000-2000 | |
| 4 | Length,m | 2500 | Max. |
| 5 | Yarn Density | ||
| Ends Warp,1/in | 44.0 | ±1 | |
| Picks Weft,1/in | 33.0 | ±1 | |
| 6 | Yarn | ||
| Warp | G75 1/0 | ||
| Weft | G75 1/0 | ||
| 7 | Breaking strength | ||
| Warp, N/cm | 380 | Min. | |
| Weft, N/cm | 320 | Min. | |
| 8 | Thickness, mm | 0.165 | ±0.02 |
| 9 | LOI,% | 2.6 | <0.4% |
| 10 | Roll Splice | 0 | |
| 11 | Selvage, mm | 5 | Max. |
| 12 | Core ID and thickness | 3 in.ID, 4 in. OD | |
| 13 | Color | White | |
| 14 | Finish | Greige | |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:
Our machine brands are DORNIER, TOYOTA, and our production capacity is about 1.8 million square meters per month. Our fiberglass E-glass cloth offers an excellent balance between cost and performance. Welcome to develop new products with us. The following items are our main products.
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage and Packing
