Product Details:
|
| Product Name: | Thermal Insulation Fabric | Color: | Golden |
|---|---|---|---|
| Weave Structure: | 8H Satin | Coating: | 100% Fiberglass Cloth |
| Yarn Type: | C-glass | Thickness: | 0.43mm |
| Weight: | 850g/m2 | Width: | 1m/1.3m/1.5m/1.52m/1.55m |
| High Light: | 0.8mm Thermal Insulation Fabric,0.43mm thermal insulation cloth,Fire Resistant Thermal Insulation Fabric |
||
0.8mm Fire Resistant Thermal Insulation Fabric For Welding Protection Blanket Roll
1. Description
Fiberglass cloth consists of woven glass fibers, giving this fabric high tensile strength, dimensional stability, and high heat and fire resistance. Fiberglass fabric insulation is a high-temperature thermal insulation material that will not burn and can withstand temperatures up to 1000°F. Fiberglass cloth insulation can be used to protect insulated equipment and pipes. It can be purchased as a lagging, resettable, or impregnated cloth. Laminated fiberglass cloth is a high-impact fiberglass fabric commonly used to repair and cover insulation on pipes. Resettable fiberglass cloth coated with a specially designed adhesive can be molded into any shape when wet and allowed to dry into the molded form. Impregnated fiberglass cloth is a fiberglass cloth that is coated with and impregnated with a solution.
2. Properties
1. Good fire-resistant.M0 classification.
2. Flexible, soft, easy to be fabricated
3. Bears temperature is 550C degrees.
3. Fiberglass Cloth Application
1. Fire blankets.
2. Welding barriers
3. Base materials for coating

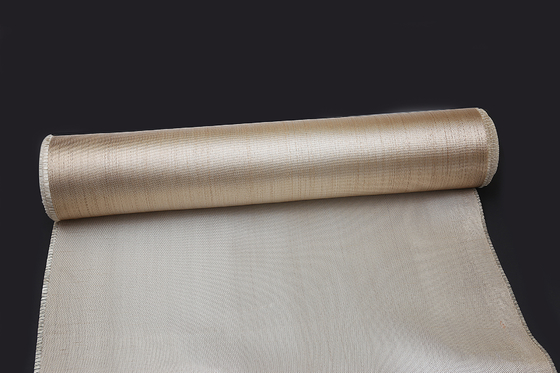

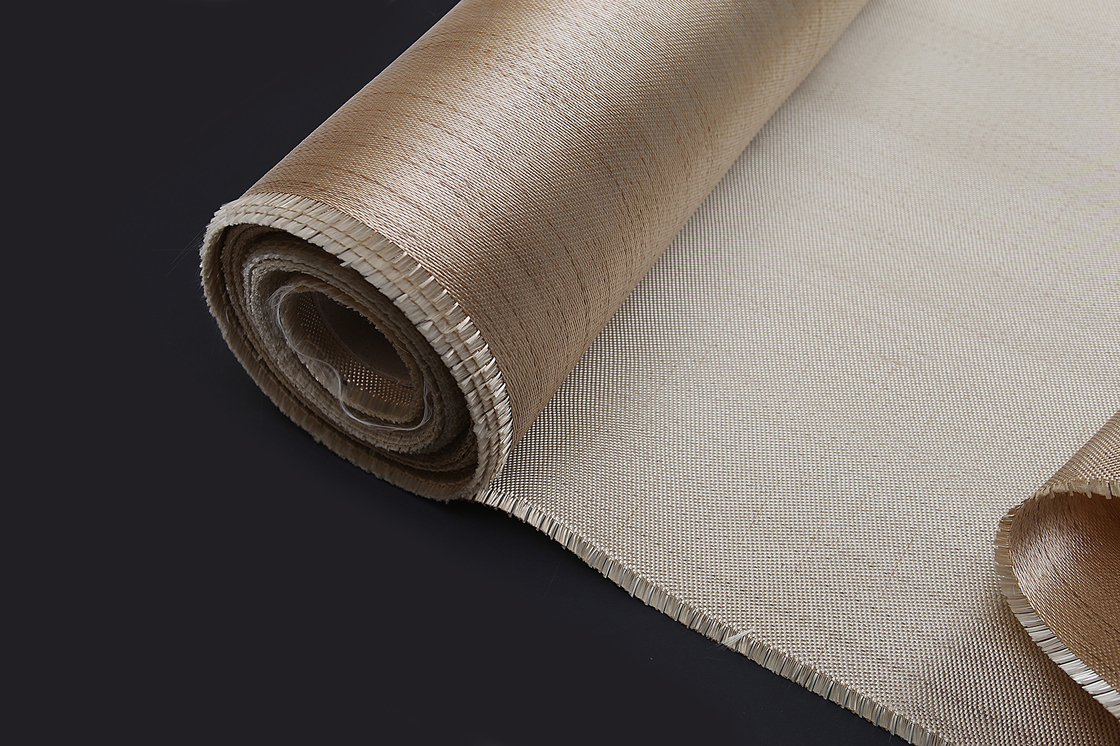

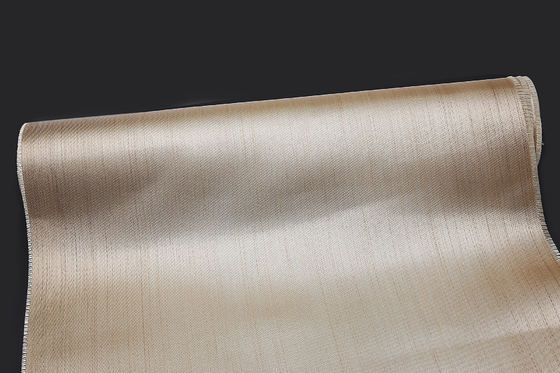

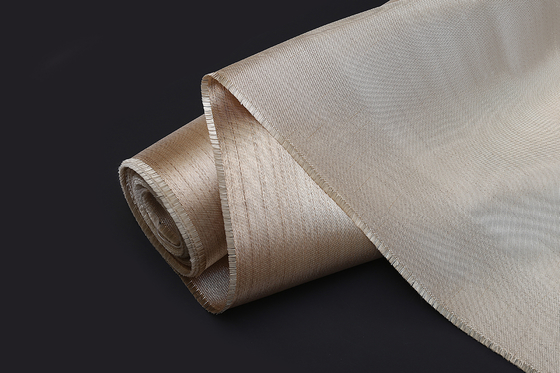

4. Detail Style HT800 Fiberglass Cloth Image
5. Data Sheet for HT800 Fiberglass Cloth
|
Item |
Technical Requirement |
|
Thickness(mm) |
0.82±0.08 |
|
Width(mm) |
1500±10 |
|
Length(m/roll) |
30 |
|
Weight(g/m2) |
880±50 |
|
Warp/weft density(thread/cm) |
19x11±1 |
|
Weave |
8HSatin |
|
Color |
Golden Color |
|
Breaking Strength Warp: N/25mm Weft: N/25mm |
≥2500x2000 |
| Temperature Resistance(℃) | 550 |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, and adhesive tape making. Here below are some typical styles:
Our machine brands are DORNIER, TOYOTA, and our production capacity is about 1.8 million square meters per month. Our fiberglass E-glass cloth offers an excellent balance between cost and performance. Welcome to develop new products with us. The following items are our main products.
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage and Packing
