Product Details:
|
| Features: | Plain Weave Made With An Untwisted Yarn | Product Name: | 2112 Style Fiberglass Fabric For Electronic Industry |
|---|---|---|---|
| Type Of Yarns: | ECE 225 1/0 ECE 225 1/0 | Yarn Density: | 40*39/In |
| Breaking Strength: | 120*120 Lb/in | Thickness: | 0.08MM |
| Weight: | 2.1oz | Application: | Equipment Parts, Pipes Plumbing |
| High Light: | Style 2112 E Fiberglass Cloth,Boats Plain Weave Fiberglass Cloth,2.1 Oz E Fiberglass Cloth |
||
Style 2112 2.1 Oz/Sq Yd Plain Weave Fiberglass Cloth used for RC wings, Boats, and Balsa
1. Description
2. Properties
Style 2112 is a 40x39 2-oz plain weave made with an untwisted yarn. We occasionally have style 112, which is identical aside from using 2-ply twisted yarn. Thickness is about 3 mils.
High Intensity
Heat and Fire Resistance
Humidity Resistance
Excellent Insulation Capability
3. 2112 Style Fiberglass Cloth Application
Copper Clad Laminate is a type of basic material of PCB, it is laminated with copper-clad on both sides, and reinforced with resin-soaked glass fiber fabric
Prepreg is the reinforcing material for CCL, is made with fiberglass coated with resin

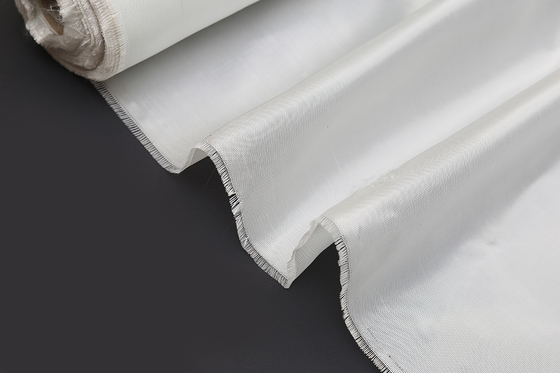

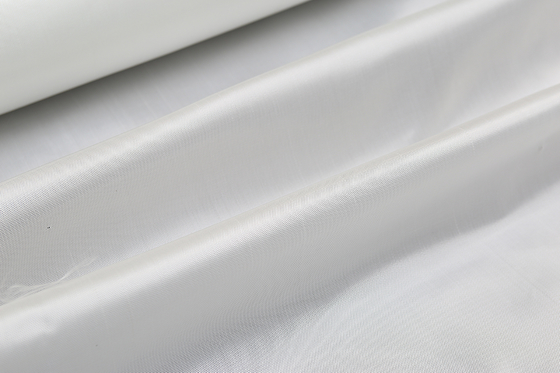

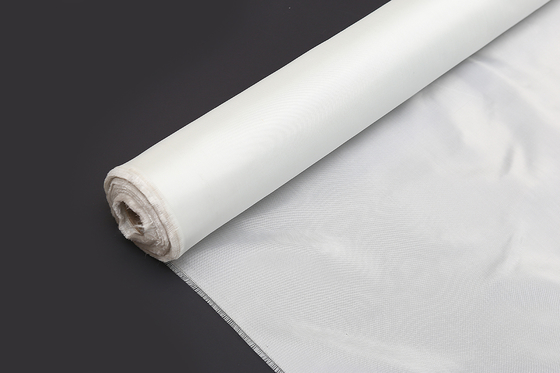

4. Detail Style 2112 Fiberglass Cloth Image
5. Data Sheet for 2112 Fiberglass Cloth
| Specification-2112 | |||
| NO. | Technical Data | SI Units | US System |
| 1 | Weave Style | Plain | |
| 2 | Fabric Weight | 71g/m2 | 2.1oz/yd2 |
| 3 | Width (cm) | 107 127 157 | |
| 4 | Length (m) | 2500 | |
| 5 | Yarn Density | ||
| Ends Warp | 16/cm | 40/in | |
| Picks Weft | 15.6/cm | 39/in | |
| 6 | Yarn | ||
| Warp | EC7 22 | ECE 225 1/0 | |
| Weft | EC7 22 | ECE 225 1/0 | |
| 7 | Breaking Strength | ||
| Warp | 210N/cm | 120lbf/in | |
| Weft | 210N/cm | 120lbf/in | |
| 8 | Thickness | 0.08mm | 3mils |
6. Much More Related Electronic Woven Reinforcement Fiberglass Cloth Data Sheets
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Pallet Included
