Product Details:
|
| Product Name: | Silicone Rubber Coated Fiberglass Fabric, | Max Width: | 1200mm |
|---|---|---|---|
| Withstand Temperature: | -50°C To +260°C | Yarn Tyoe: | E-glass Or C-glass |
| Color: | Red, Grey, Black,White | Weave: | Plain Or Satin Weave |
| Coating: | Single Side Silicone Coating | Property: | Superior Release Non-stick Surface |
| High Light: | Red Silicone Rubber Coated Fiberglass Fabric,Satin Weave heat resistant fiberglass cloth,Weave Silicone Rubber Coated Fiberglass Fabric |
||

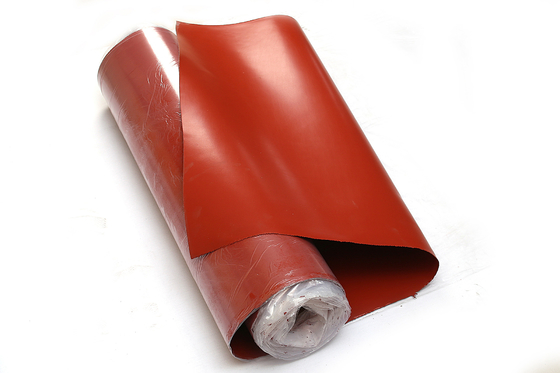

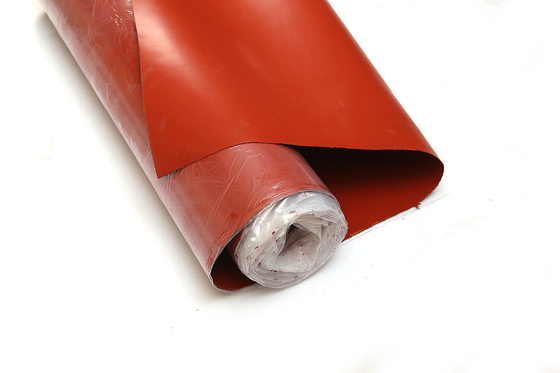

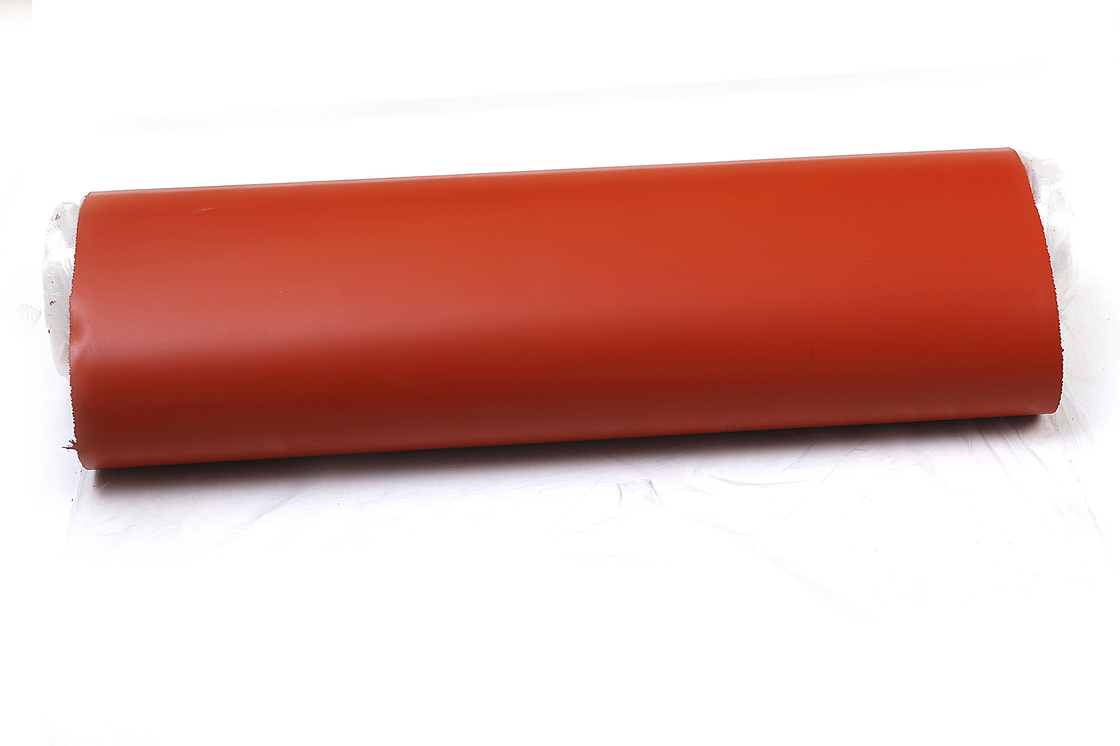

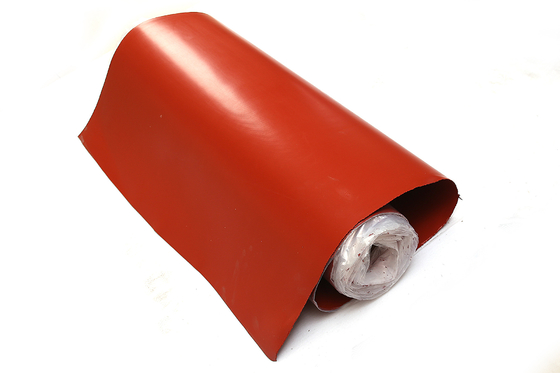

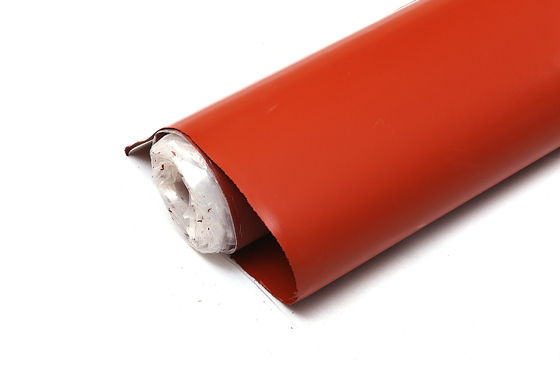

Red Color Silicone Rubber Coated Fiberglass Fabric With Heat Resistance
Product Description
Silicone-coated fiberglass fabrics have very similar properties to PTFE-coated fiberglass fabrics, but they are more flexible, very non-stick, and have a non-slip surface that is more tear-resistant. These fabrics are available in red, grey, black, and more on one and two sides and are available in thicknesses ranging from 0.1mm to 3mm.
Technique Data Sheets
|
Item |
Technical Requirement |
|
Thickness(mm) |
0.98±0.05 |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
50±0.5 |
|
Weight(g/m2) |
1850±50 |
|
Warp/weft density(thread/cm) |
20x10±1 |
|
Breaking Strength Warp:N/50mm Weft:N/50mm |
≥3700x1680 |
|
Weave |
Twill |
|
Color |
Grey |
|
℃ Cloth Temperature Resistance |
550 |
|
℃ Silicone Coating Temperature Resistance |
260 |
Properties
Superior Release Non-stick surface
High temp resistant up to 2600C
Excellent release properties
Superior abrasion resistance
Good heat insulation
Good chemical resistance
Good dielectric properties
Good weather ability
Silicone Coating Fiberglass Fabric Application
Electric insulation: Silicon-coated fiberglass fabric features a high grade of electric insulation and bears a high voltage load due to the E-glass Fiberglass cloth. It fits for making products like insulation cloth and sleeves etc.
Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material is specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel, and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.
Anti-corrosion sector: silicone fiberglass fabric is good to be used as an inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance, and high strength. It proves to be an ideal anti-corrosion material.
If you need acid and alkali-resistant coating, we can also provide you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 | |
| 1.1 | 1850 | |
| 1.3 | 2050 | |
| 1.5 | 2560 | |
| 2 | 2900 | |
| 2.5 | 3400 | |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 | |
| 1 | 1820 | |
| 1.1 | 1850 | |
| 1.5 | 2600 | |
| 2 | 3300 | |
| 2.5 | 4100 |
