Product Details:
|
| Product Name: | Silicone Fiberglass Fabric | Max Width: | 1000mm |
|---|---|---|---|
| Withstand Temperature: | -50°C To 260°C | Roll Length: | 30 Or 50metres Per Rol |
| Color: | Red, Grey, Black,White | Weave: | Electric Insulation Non-metallic Compensator |
| Coating: | One-side/ Two-side Silicone Rubber Coating | Application: | Wall/Roof Covering Cloth, Electrical Insulation,non- Metallic Comensation,anti-corrosion |
| High Light: | High Intensity Silicone Coated Fiberglass Cloth,silicone coated glass fibre cloth,1.3mm Silicone Coated Fiberglass Cloth |
||

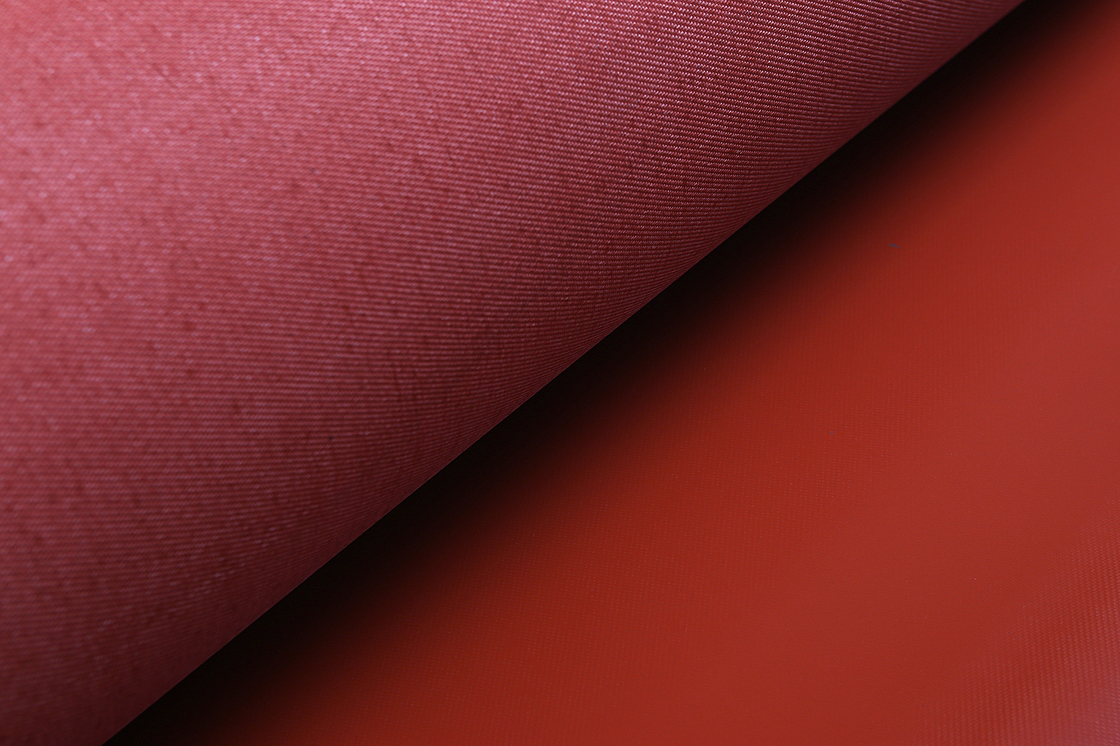

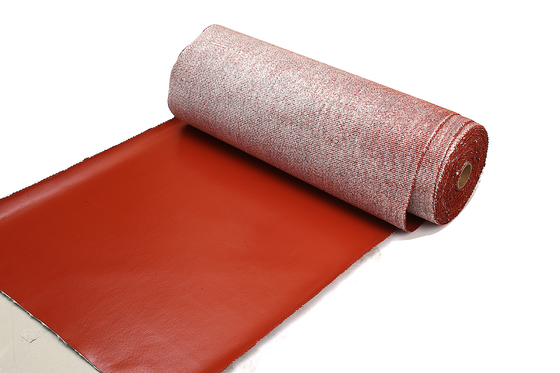

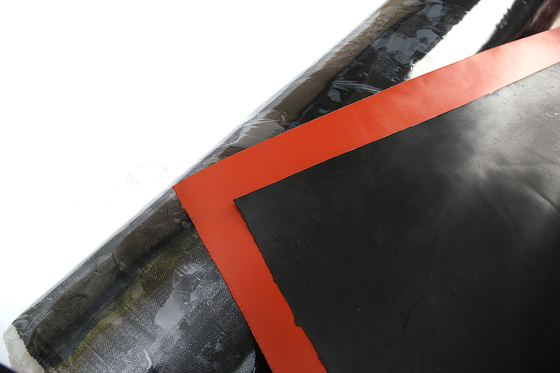

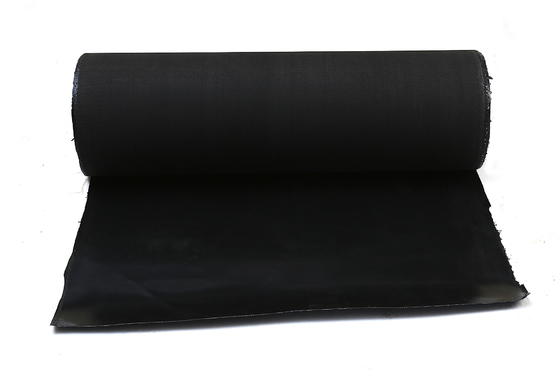

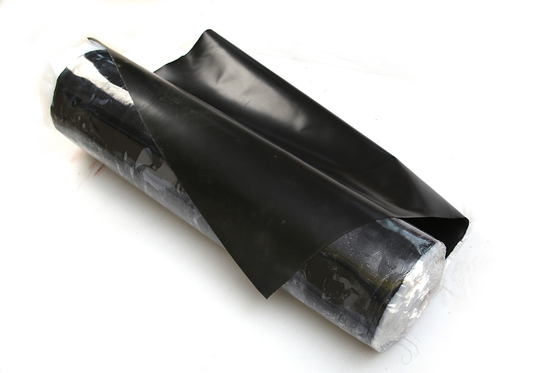

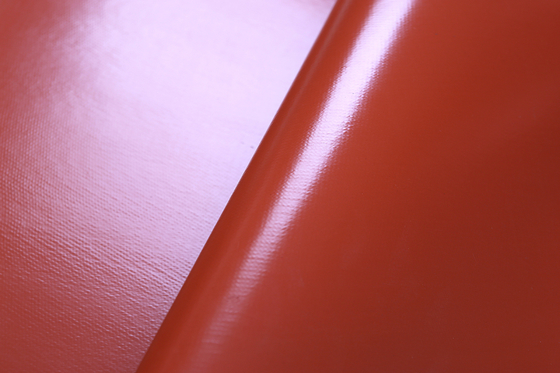

Temperature Resistace High-Intensity Silicone Coated Fiberglass Cloth
Product Description
Resistance to high temperatures and flame makes this Silicone-Coated Fiberglass Cloth great for a range of uses. Applications include removable insulation, pads, drop cloths, welding curtains, welding shields, welding, blankets, hose coverings, and gaskets. The fiberglass fabric roll features a satin weave and comes in gray. Made from high-quality materials, the cloth is built to last.
Technique Data Sheets
|
Item |
Technical Requirement |
|
Thickness(mm) |
1.3±0.05 |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
50±0.5 |
|
Weight(g/m2) |
2600±50 |
|
Warp/weft density(thread/cm) |
20x10±1 |
|
Breaking Strength Warp: N/50mm Weft: N/50mm |
≥4700x2680 |
|
Weave |
Plain |
|
Color |
Grey |
|
℃ Cloth Temperature Resistance |
550℃ |
|
℃ Silicone Coating Temperature Resistance |
260℃ |
Properties
Fireproof
High Strength
Anti-Friction
Chemical Resistance
Heat Resistance
Temperature Resistance, It can continuously work under 260 C degrees
Weather ability: Resistance to ozone, oxygen, sunlight, and aging, long using life up to 10 years
Good Electric insulator, the dielectric constant3-3.2 breakdown voltage between 20-50KV/mm
Silicone Coating Fiberglass Fabric Application
Silicone-coated fabric is made up of silicone rubber and fiberglass fabric. This product can work under 200℃ for a long time. It is widely used in industry. We can use it as a welding blanket. It is also very suitable for outdoor work because silicone rubber has good aging resistance.
If you need acid and alkali-resistant coating, we can also provide you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 | |
| 1.1 | 1850 | |
| 1.3 | 2050 | |
| 1.5 | 2560 | |
| 2 | 2900 | |
| 2.5 | 3400 | |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 | |
| 1 | 1820 | |
| 1.1 | 1850 | |
| 1.5 | 2600 | |
| 2 | 3300 | |
| 2.5 | 4100 |
Please note that the silicone-coated fabric quality is based on its thickness. The weight is only for reference and varies in different production batches.
