Product Details:
|
| Product Name: | Silicone Fiberglass Fabric | Max Width: | 1000mm |
|---|---|---|---|
| Withstand Temperature: | -50°C To 260°C | Roll Length: | 30 Or 50metres Per Rol |
| Color: | Red, Grey, Black,White | Weave: | Electric Insulation Non-metallic Compensator |
| Coating: | One-side/ Two-side Silicone Rubber Coating | Application: | Wall/Roof Covering Cloth, Electrical Insulation,non- Metallic Comensation,anti-corrosion |
| High Light: | High Insulation Insulation Fiberglass Cloth,Red Silicone Coated Cloth,2mm Insulation Fiberglass Cloth |
||
High Insulation Property High Property Insulation Fiberglass Cloth Silicone Coated Cloth
Product Description

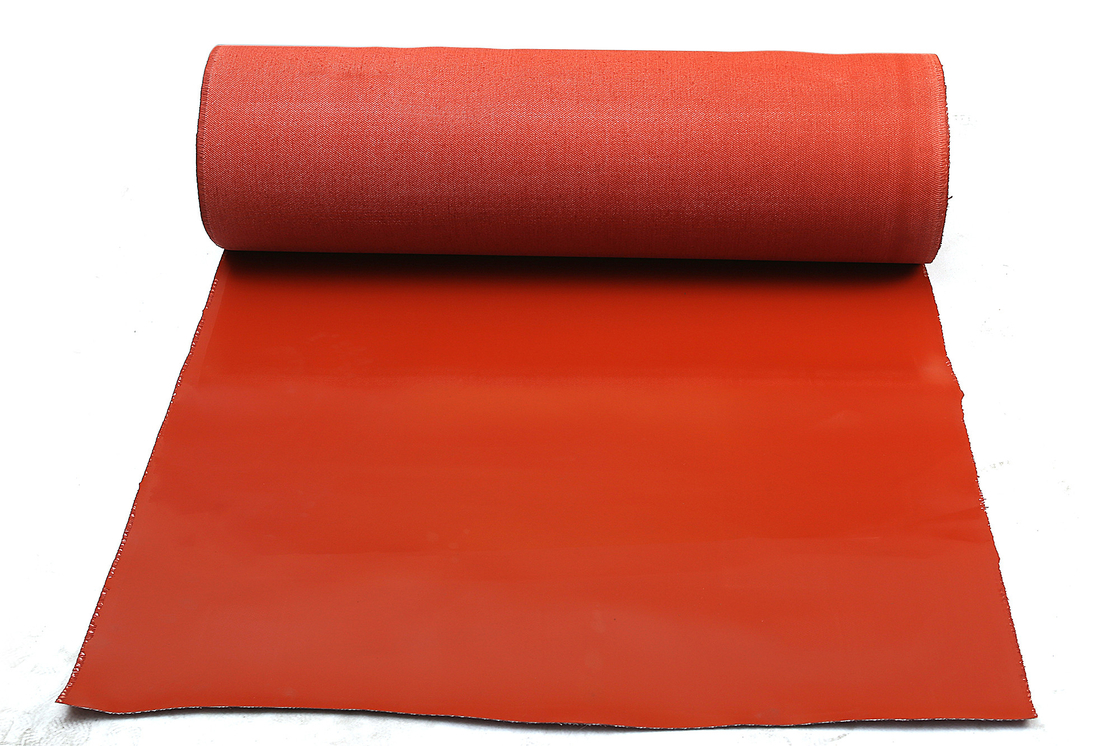

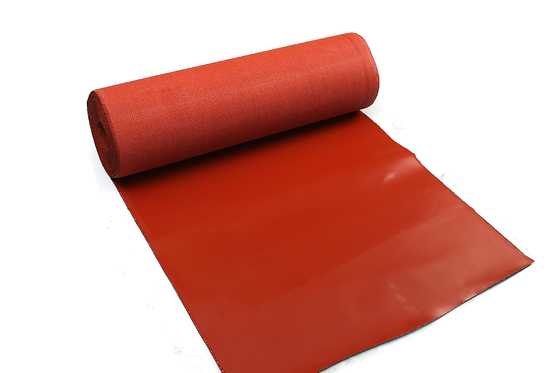

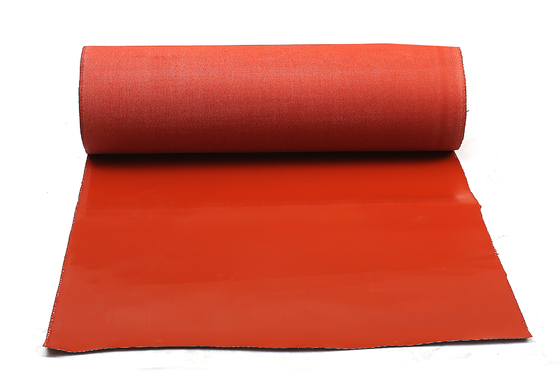

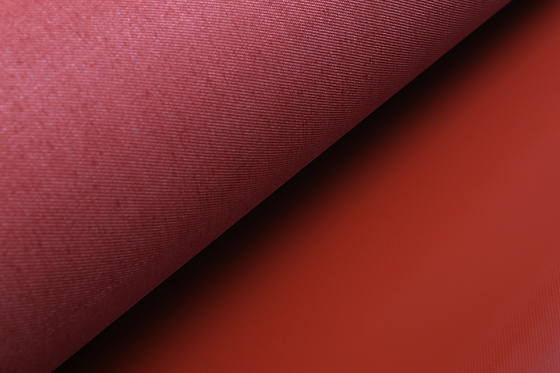

Silicone-coated fiberglass fabrics are made of fiberglass base cloth and impregnated or coated with a special compounded silicone rubber on one or both sides. Due to the physiological inertness of silicone rubber, it not only increases the strength, heat insulation, fire protection, and insulation properties, but also has resistance to ozone, oxygen aging, light aging, weather aging, and oil resistance.
Technique Data Sheets
|
Item |
Technical Requirement |
|
Thickness(mm) |
2.0±0.05 |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
50±0.5 |
|
Weight(g/m2) |
4850±50 |
|
Warp/weft density(thread/cm) |
20x10±1 |
|
Breaking Strength Warp: N/50mm Weft: N/50mm |
≥11700x7680 |
|
Weave |
Plain |
|
Color |
Red |
|
℃ Cloth Temperature Resistance |
550℃ |
|
℃ Silicone Coating Temperature Resistance |
260℃ |
Properties
Fabric expansion joints
Insulation jackets, mattresses, and pad
Fire doors & Fire curtains
Welding/fire blankets
Pipeline ductile conjunction and non-metal compensating facility
High-temperature protection and electric insulation.
Silicone Coating Fiberglass Fabric Application
Silicone-coated fabric is made up of silicone rubber and fiberglass fabric. This product can work under 200℃ for a long time. It is widely used in industry. We can use it as a welding blanket. It is also very suitable for outdoor work because silicone rubber has good aging resistance.
If you need acid and alkali-resistant coating, we can also provide you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 | |
| 1.1 | 1850 | |
| 1.3 | 2050 | |
| 1.5 | 2560 | |
| 2 | 2900 | |
| 2.5 | 3400 | |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 | |
| 1 | 1820 | |
| 1.1 | 1850 | |
| 1.5 | 2600 | |
| 2 | 3300 | |
| 2.5 | 4100 |
Please note that the silicone-coated fabric quality is based on its thickness. The weight is only for reference and varies in different production batches.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or pvc bag. We can also pack according to customer's requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
