Product Details:
|
| Product Name: | Silicone Fiberglass Fabric | Max Width: | 1000mm |
|---|---|---|---|
| Withstand Temperature: | -50°C To 260°C | Roll Length: | 30 Or 50metres Per Rol |
| Color: | Red, Grey, Black,White | Weave: | Electric Insulation Non-metallic Compensator |
| Coating: | One-side/ Two-side Silicone Rubber Coating | Application: | Wall/Roof Covering Cloth, Electrical Insulation,non- Metallic Comensation,anti-corrosion |
| High Light: | Non Flammable Silicone Coated Fiberglass Cloth,silicone impregnated fiberglass fabric,Silicone Coated Fiberglass Cloth Red |
||

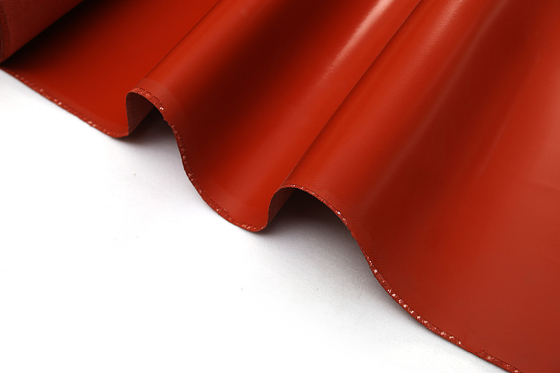

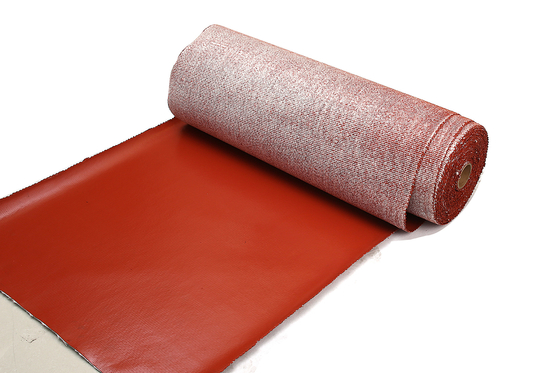

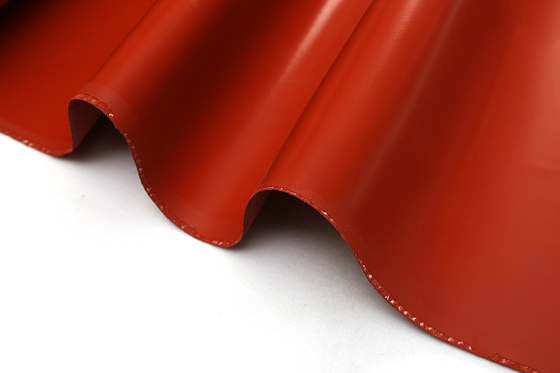

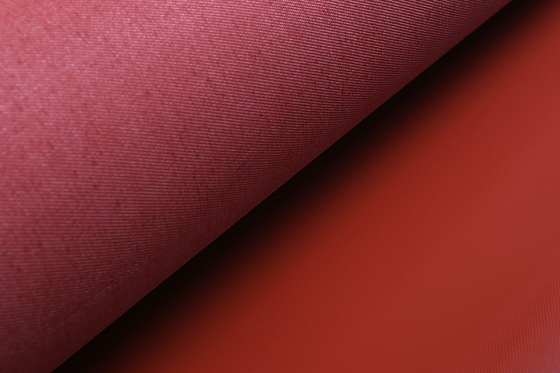

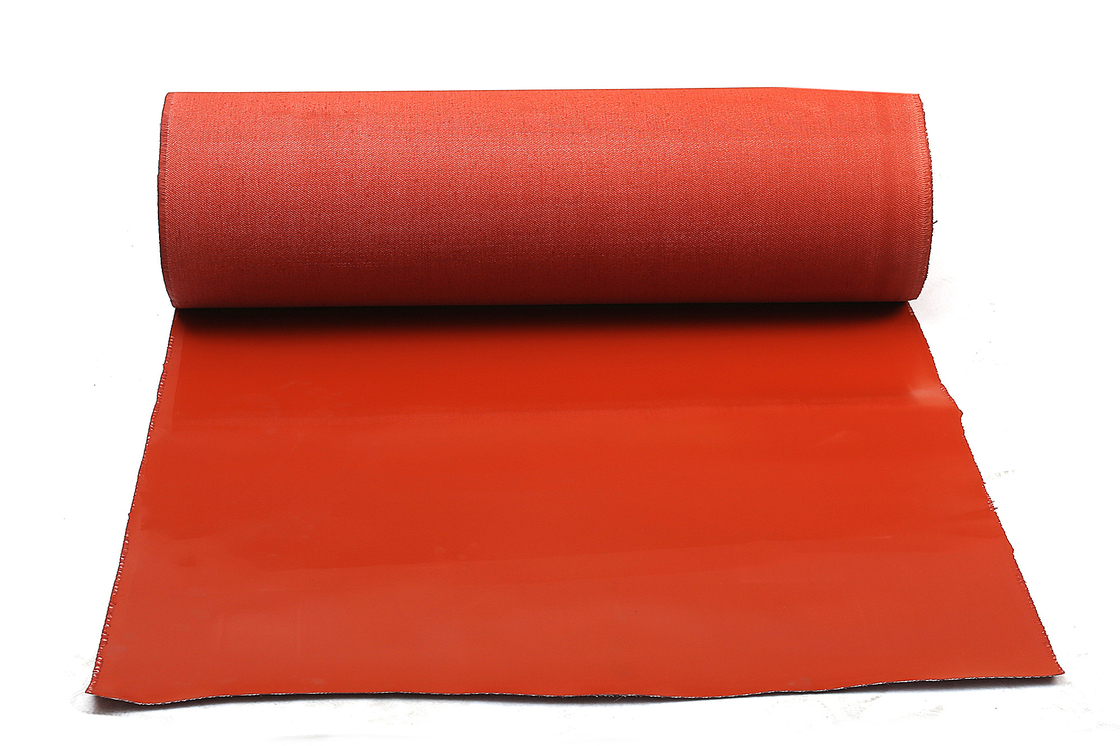

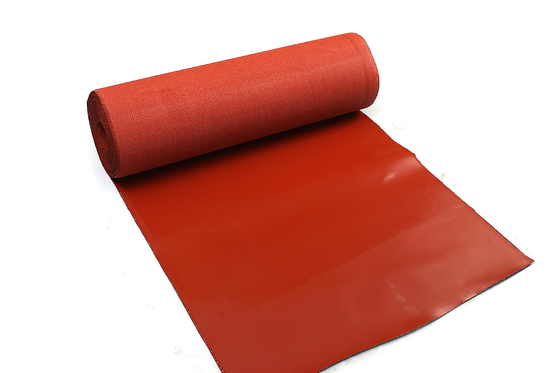

Flame Retardant Silicone Coated Fiberglass Cloth Fiberglass Cloth
Product Description
Silicone Fiberglass fabric is one kind of high-performance and multi-purpose compound material which is made of silicone emulsion coated fiberglass with unique technology.
Technique Data Sheets
|
Item |
Technical Requirement |
|
Thickness(mm) |
1.3±0.05 |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
50±0.5 |
|
Weight(g/m2) |
2600±50 |
|
Warp/weft density(thread/cm) |
20x10±1 |
|
Breaking Strength Warp: N/50mm Weft: N/50mm |
≥4700x2680 |
|
Weave |
Plain |
|
Color |
Grey |
|
℃ Cloth Temperature Resistance |
550℃ |
|
℃ Silicone Coating Temperature Resistance |
260℃ |
Properties
Fiberglass base fabric that has been impregnated with our specially formulated silicone rubber compound. This silicone coating adds extended life, while providing greater oil and water resistance than uncoated fabrics as well as low smoke and flame retardation.
Silicone Coating Fiberglass Fabric Application
Insulation jackets, mattresses, and pad
Welding/fire blankets Pipeline ductile conjunction and non-metal compensating facility
Serve as a welding defender, heat protection quilt, foundry splash protection
Use for conveyor belt and expansion joints
Use as electrical insulation, chemical corrosion resistance, and packing material
Also is widely used in aerospace, marine, chemical industry,auto-manufacturer, construction, piping flexibility, and sealing industry
If you need acid and alkali-resistant coating, we can also provide you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 | |
| 1.1 | 1850 | |
| 1.3 | 2050 | |
| 1.5 | 2560 | |
| 2 | 2900 | |
| 2.5 | 3400 | |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 | |
| 1 | 1820 | |
| 1.1 | 1850 | |
| 1.5 | 2600 | |
| 2 | 3300 | |
| 2.5 | 4100 |
Please note that the silicone-coated fabric quality is based on its thickness. The weight is only for reference and varies in different production batches.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or pvc bag. We can also pack according to customer's requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
