Product Details:
|
| Product Name: | Silicone Coated Fiberglass | Max Width: | 1200mm |
|---|---|---|---|
| Withstand Temperature: | -50°C To +260°C | Yarn Tyoe: | E-glass Fiberglass Fabric |
| Color: | Red, Grey, Black,White | Weave: | Electric Insulation Non-metallic Compensator |
| Coating: | Single Side Silicone Coating | Application: | Welding Blanket,fire Curtain,flexible Joint,insulation Jacket,fire Doors,smoke Hanging Wall |
| High Light: | Fire Curtain high temperature fiberglass cloth,Flexible Joint lightweight fiberglass cloth,1.3mm high temperature fiberglass cloth |
||

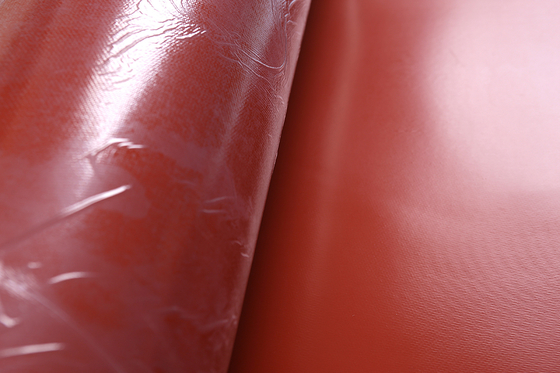

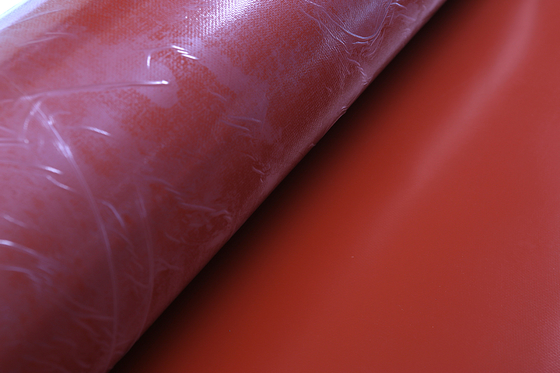

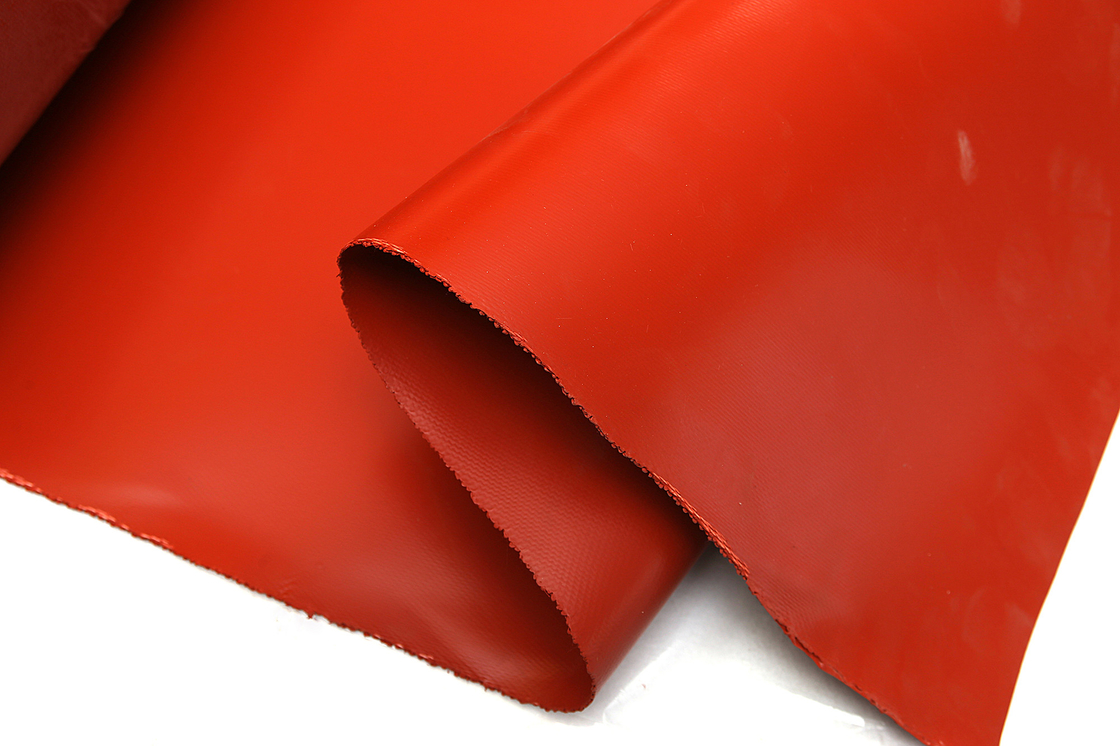

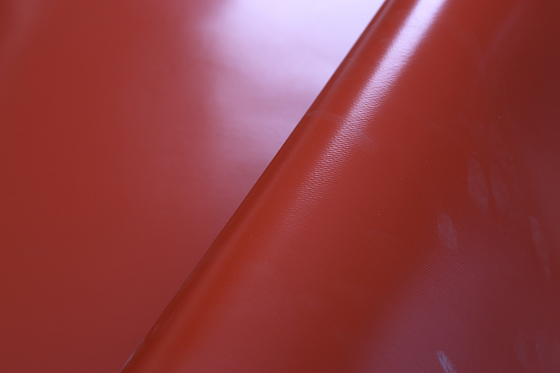

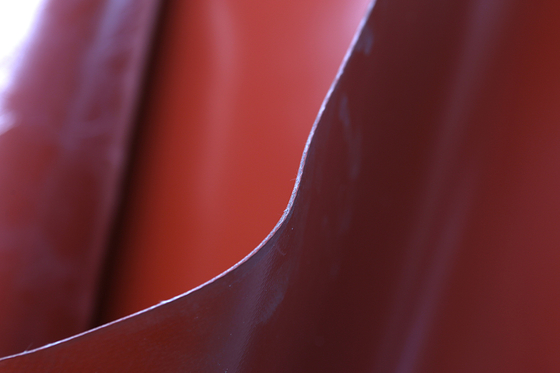

Red Silicone Coated Fiberglass Fabric For Fire Curtain And Flexible Joint
Product Description
Heavy-duty silicone coated fiberglass cloth for power plants. This style has good thermal insulation properties and high-temperature resistance. We use plain weave fiberglass as its base fabric. This base fabric is a thickened fiberglass cloth. This silicone-coated fiberglass cloth has a silicone rubber side that we can use as an open insulating sleeve in power plants.
We can also use it outdoors. It can work outdoors for fifteen years. It has good anti-aging properties. This heavy-duty silicone-coated fiberglass cloth is now more and more widely used.
Notice: Although the base fabric is rated 1,000° F at continuous operating temperature, the silicone coating is rated 500°F on a continuous basis.
Technique Data Sheets
|
Item |
Technical Requirement |
|
Thickness(mm) |
1.3±0.05 |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
50±0.5 |
|
Weight(g/m2) |
2600±50 |
|
Warp/weft density(thread/cm) |
20x10±1 |
|
Breaking Strength Warp: N/50mm Weft: N/50mm |
≥4700x2680 |
|
Weave |
Plain |
|
Color |
Grey |
|
℃ Cloth Temperature Resistance |
550℃ |
|
℃ Silicone Coating Temperature Resistance |
260℃ |
Properties
1. Material: Silicone rubber and fiberglass
1. Color: Red, black, white, and so on
2. Usage: Welding blanket, fire curtain, flexible joint, insulation jacket, fire doors, smoke hanging wall
3. Thickness:0.4mm-3.0mm
4. Roll length:50-100m
5. Package: Woven bag
6. Working temperature:220℃
7. Width:1m-2m
Silicone Coating Fiberglass Fabric Application
Electric insulation: Silicon-coated fiberglass fabric features a high grade of electric insulation and bears a high voltage load due to the E-glass Fiberglass cloth. It fits for making products like insulation cloth and sleeves etc.
Non-metallic compensator: silicone fiberglass fabric could be used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This membrane material is specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel, and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.
Anti-corrosion sector: silicone fiberglass fabric is good to be used as an inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance, and high strength. It proves to be an ideal anti-corrosion material.
If you need acid and alkali-resistant coating, we can also provide you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 | |
| 1.1 | 1850 | |
| 1.3 | 2050 | |
| 1.5 | 2560 | |
| 2 | 2900 | |
| 2.5 | 3400 | |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 | |
| 1 | 1820 | |
| 1.1 | 1850 | |
| 1.5 | 2600 | |
| 2 | 3300 | |
| 2.5 | 4100 |
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or pvc bag. We can also pack according to customer's requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
