Product Details:
|
| Product Name: | Silicone Coated Glass Fiber Fabric, | Max Width: | 1000mm |
|---|---|---|---|
| Withstand Temperature: | -50°C To 260°C | Yarn Tyoe: | E-glass Fiberglass Fabric |
| Color: | Red, Grey, Black,White | Weave: | Electric Insulation Non-metallic Compensator |
| Coating: | Silicone Rubber Coating | Application: | Conveyor Belt And Expansion Joints |
| High Light: | Fireproof Silicone Coated Glass Fiber Fabric,high temperature fiberglass cloth,Red Silicone Coated Glass Fiber Fabric |
||

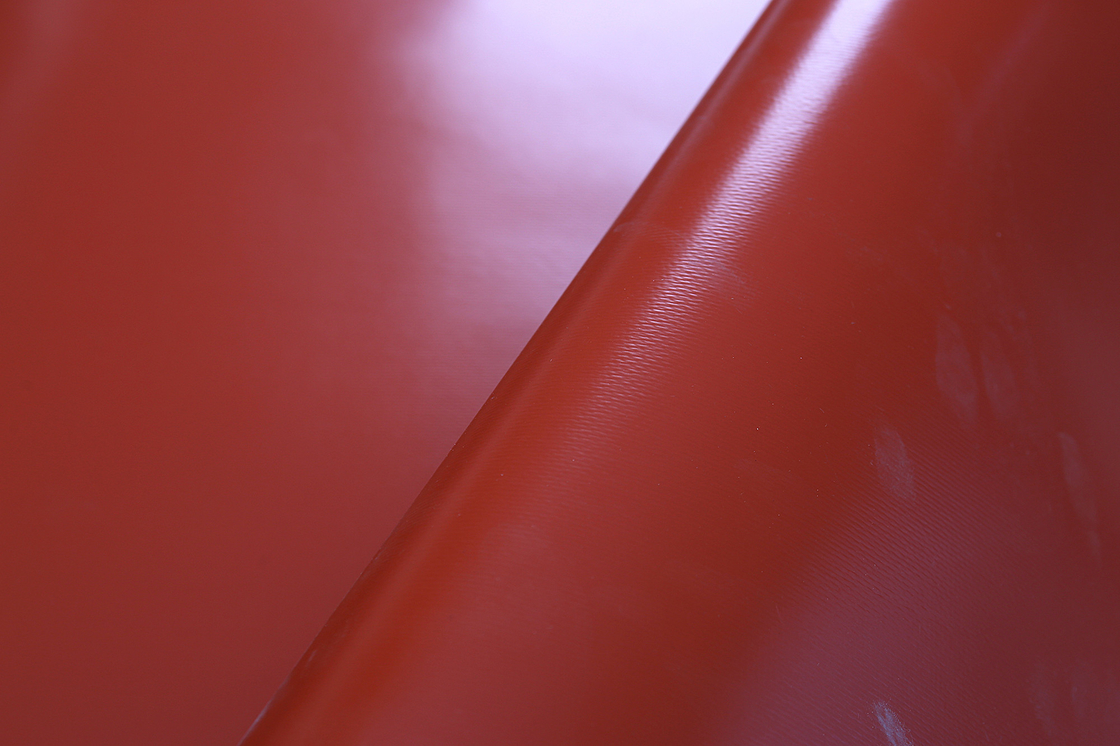

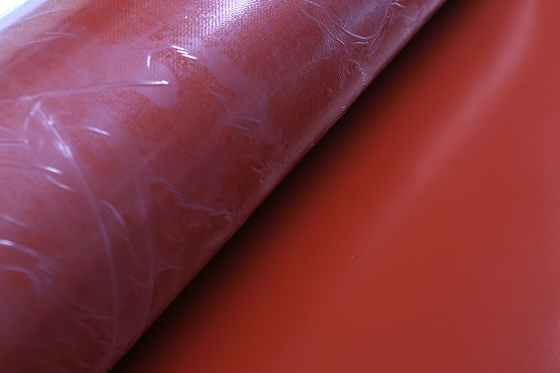

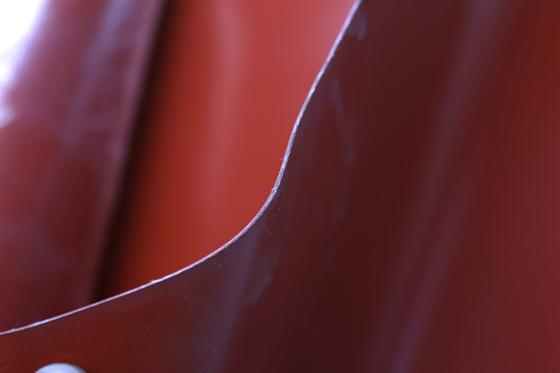

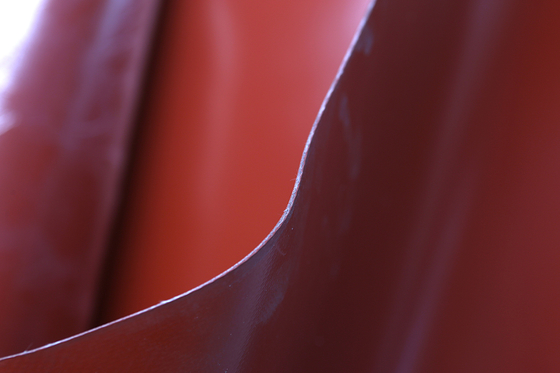

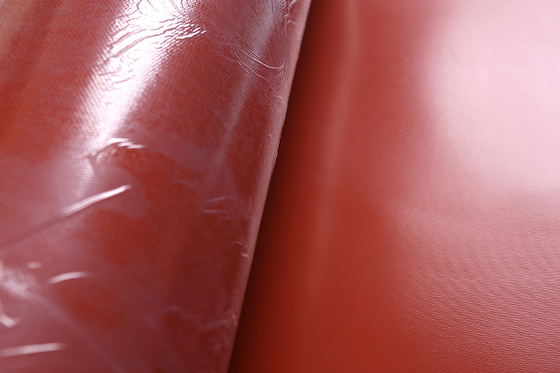

Silicone Coated Glass Cloth, Fireproof Silicone Coated Glass Fiber Fabric Used for Expansion Joint
Product Description
Silicon-coated fiberglass cloth is woven with high-quality fiberglass base cloth and then coated or impregnated with specially formulated silicone rubber on one or both sides.
These fabrics have good flexibility, durability, non-toxicity, water and oil resistance, high-temperature resistance, abrasion resistance, and excellent chemical resistance to general chemicals. Can be used in applications with temperatures from -70°C to 260°C.
Shenghe Company is a Chinese manufacturer. We have been working in this field for many years. We specialize in the production of electronic glass fiber fabric weaving and also provide coated composite materials
Notice: Although the base fabric is rated 1,000° F at continuous operating temperature, the silicone coating is rated 500°F on a continuous basis.
Technique Data Sheets
|
Item |
Technical Requirement |
|
Thickness(mm) |
1.3±0.05 |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
50±0.5 |
|
Weight(g/m2) |
2600±50 |
|
Warp/weft density(thread/cm) |
20x10±1 |
|
Breaking Strength Warp: N/50mm Weft: N/50mm |
≥4700x2680 |
|
Weave |
Plain |
|
Color |
Grey |
|
℃ Cloth Temperature Resistance |
550℃ |
|
℃ Silicone Coating Temperature Resistance |
260℃ |
Properties
1. Material: Silicone rubber and fiberglass
1. Color: Red, black, white, and so on
2. Usage: Welding blanket, fire curtain, flexible joint, insulation jacket, fire doors, smoke hanging wall
3. Thickness:0.4mm-3.0mm
4. Roll length:50-100m
5. Package: Woven bag
6. Working temperature:260℃
7. Width:1m-2m
Silicone Coating Fiberglass Fabric Application
Serve as welding defender, heat protection quilt, foundry splash protection
Conveyor belt and expansion joints
Electrical insulation, chemical corrosion resistance, packing materials
Used for aerospace, marine, chemical industry, power plant, automobile manufacturer, construction, piping, and so on
If you need acid and alkali-resistant coating, we can also provide you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 | |
| 1.1 | 1850 | |
| 1.3 | 2050 | |
| 1.5 | 2560 | |
| 2 | 2900 | |
| 2.5 | 3400 | |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 | |
| 1 | 1820 | |
| 1.1 | 1850 | |
| 1.5 | 2600 | |
| 2 | 3300 | |
| 2.5 | 4100 |
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or pvc bag. We can also pack according to customer's requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
