Product Details:
|
| Product Name: | Silicone Coated Glass Fiber Fabric, | Max Width: | 1000mm |
|---|---|---|---|
| Yarn Tyoe: | E-glass Fiberglass Fabric | Color: | Red, Grey, Black,White |
| Weave: | Electric Insulation Non-metallic Compensator | Coating: | Silicone Rubber Coating |
| Application: | Conveyor Belt And Expansion Joints | Packing: | PVC Package |
| Standing Temperature: | -70-260Degree | Surface Treatment: | Silicon Coated |
| High Light: | 3300gsm Silicone Coated Fiberglass Cloth,Outdoor Silicone Coated Glass Fabric,Silicone Coated Fiberglass Cloth 2.0mm |
||

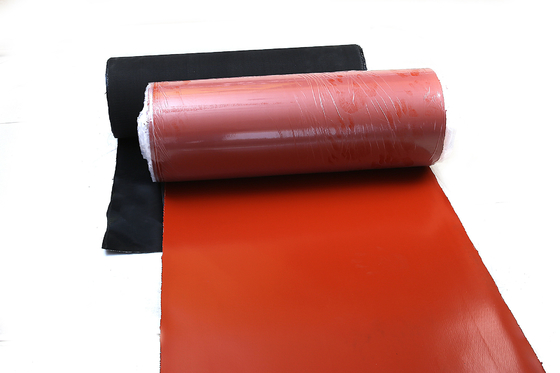

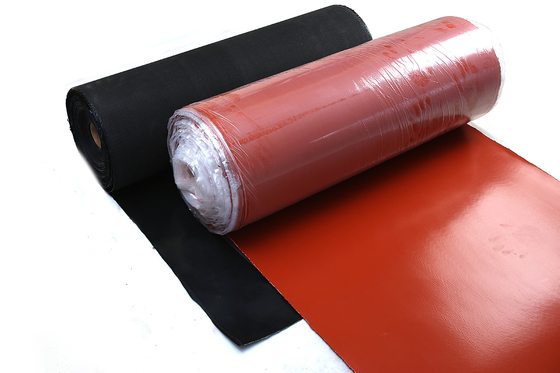

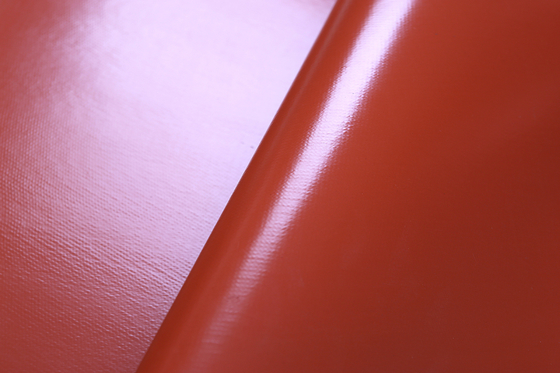

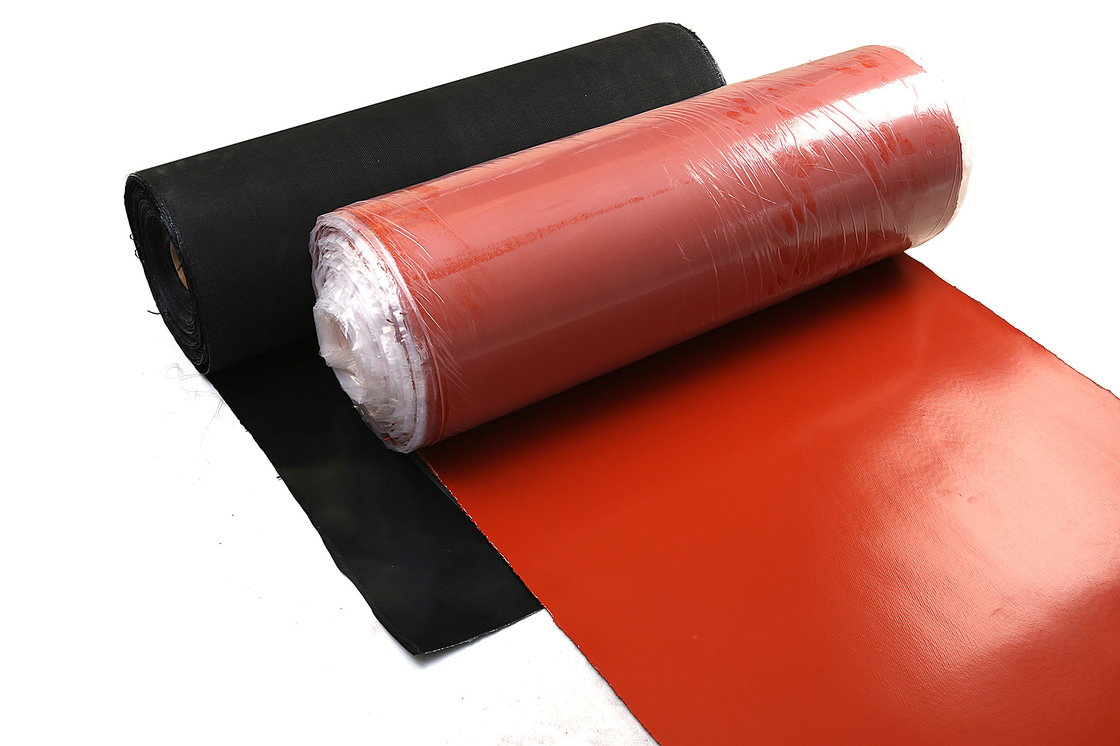

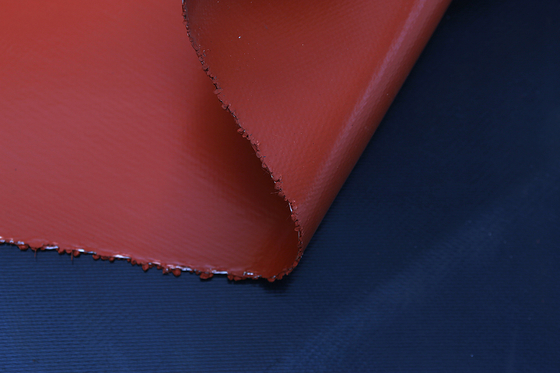

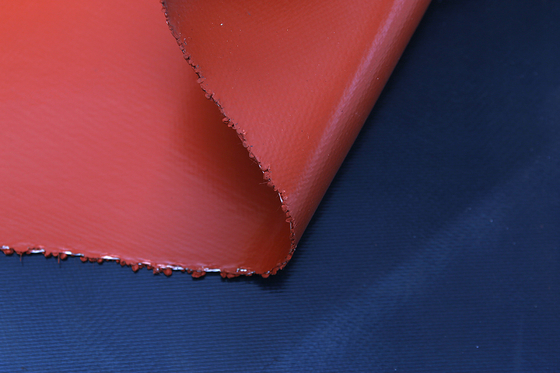

3300g/m2 Outdoor Extending Silicone Coated Glass Fabric 2.0mm
Product Description
Silicone-coated fiberglass cloth is now widely used. There are single-sided coated fiberglass cloth and double-sided coated fiberglass cloth. We can distinguish from the surface. One-sided silicone One-sided smooth. Double-sided silicone Double-sided silicone rubber. Waterproof performance Double-sided aging resistance is better than single-sided. But double-sided will be more expensive than single-sided. On the other hand, we can distinguish two types of silicon-coated fiberglass fabrics based on weight: heavy-duty and light-duty. The heavy one has better thermal insulation and heat resistance than the light one. But lighter is cheaper.
Technique Data Sheets
|
Item |
Technical Requirement |
|
Thickness(mm) |
±0.05 |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
50±0.5 |
|
Weight(g/m2) |
3300±50 |
|
Weave |
Plain |
|
Color |
Red |
|
℃ Cloth Temperature Resistance |
550℃ |
|
℃ Silicone Coating Temperature Resistance |
260℃ |
Properties
It is used at the temperatures from -70℃ to 230℃
Resistant to ozone, oxygen, sunlight, and aging, long using life up to 10 years
High insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
Good flexibility and high surface friction
Chemical corrosion resistance
Silicone Coating Fiberglass Fabric Application
Light duty silicone coated fiberglass fabric is mainly used to make fire blankets, welding blankets, and heat insulation jackets.
Heavy-duty silicone-coated fiberglass fabric is mainly used in industries such as flexible joints and high-temperature gaskets.
Our advantages
Our company has a lot of experience in this field. We have been working in this field for about twenty years.
We have strict quality control.
Our factory has sufficient production capacity.
We have many customers all over the world. We are happy to serve new customers.
If you need acid and alkali-resistant coating, we can also provide you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 | |
| 1.1 | 1850 | |
| 1.3 | 2050 | |
| 1.5 | 2560 | |
| 2 | 2900 | |
| 2.5 | 3400 | |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 | |
| 1 | 1820 | |
| 1.1 | 1850 | |
| 1.5 | 2600 | |
| 2 | 3300 | |
| 2.5 | 4100 |
By thickness, we have two categories of products. One kind has a thickness of over 1mm and another kind has a thickness of below 1mm. You can choose the thickness by the occasion you use.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or pvc bag. We can also pack according to customer's requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
