Product Details:
|
| Product Name: | Silicone Coated Glass Fiber Fabric, | Max Width: | 1000mm |
|---|---|---|---|
| Yarn Tyoe: | E-glass Fiberglass Fabric | Color: | Red, Grey, Black,White |
| Weave: | Electric Insulation Non-metallic Compensator | Coating: | Silicone Rubber Coating |
| Application: | Conveyor Belt And Expansion Joints | Packing: | PVC Package |
| Standing Temperature: | -70-260Degree | Surface Treatment: | Silicon Coated |
| High Light: | 1.5m Silicone Coated Fiberglass Cloth,550C high temperature fiberglass cloth,Silicone Coated Fiberglass Cloth Plain Woven |
||

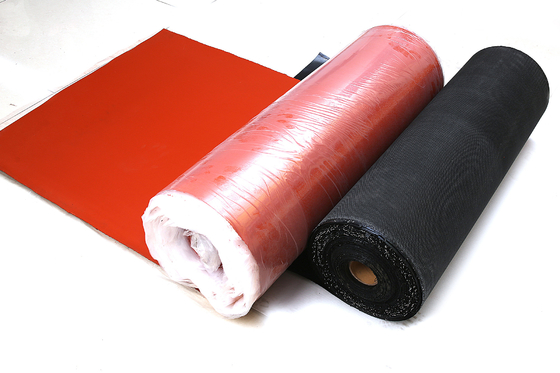

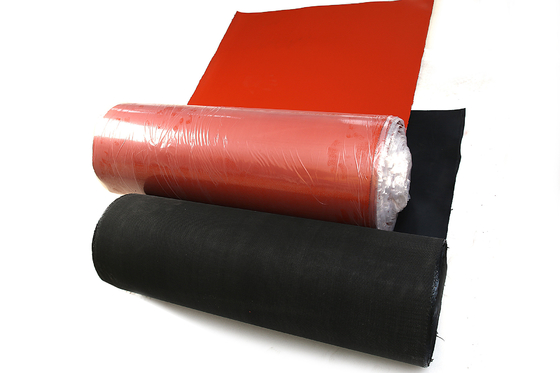

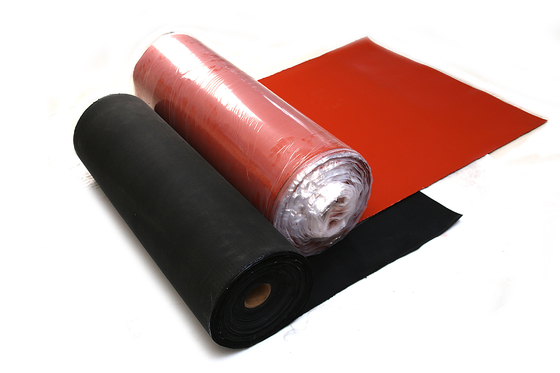

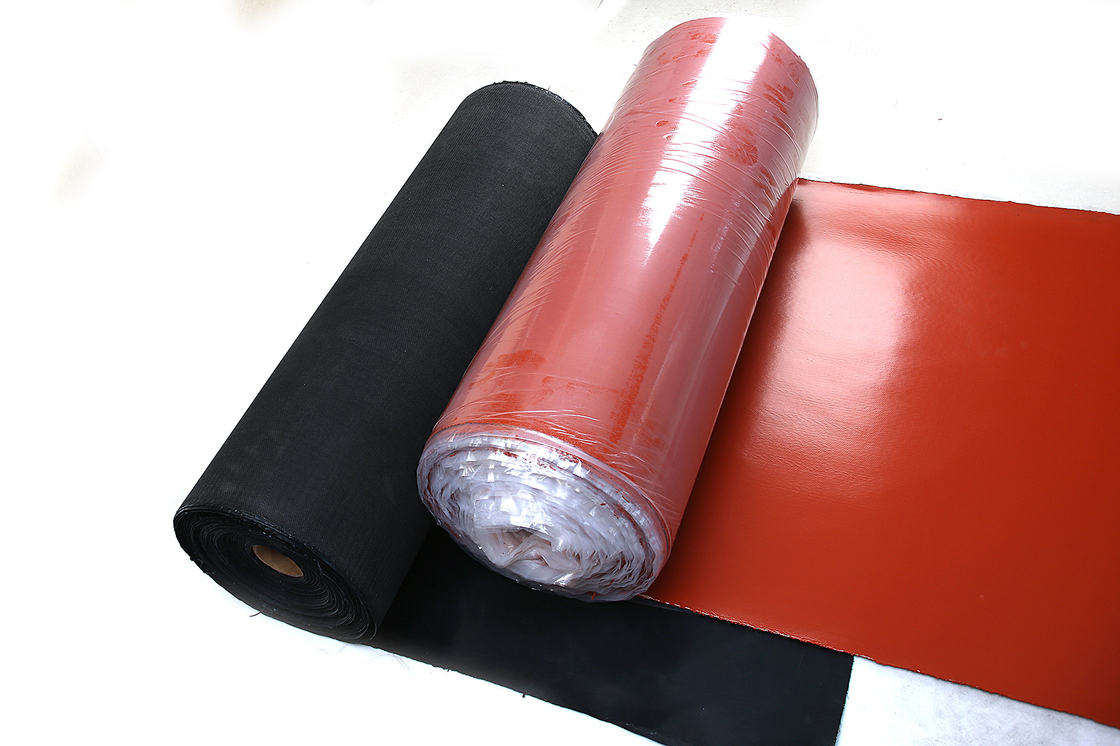

High-Temperature Resistant 1.5m Silicone Fiberglass Fabric Plain Woven Type
Product Description
Shenghe Company provides silicone coated glass fiber fabric with many varieties of coating weight, colors, and widths for different applications.
silicone coated glass fiber fabric is a kind of high-performance and multi-function composite material.
silicone coated glass fiber fabric is an engineering material, it is non-flammable, has corrosion, and has a high temperature.
Technique Data Sheets
|
Item |
Technical Requirement |
|
Thickness(mm) |
±0.05 |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
50±0.5 |
|
Weight(g/m2) |
3300±50 |
|
Weave |
Plain |
|
Color |
Red |
|
℃ Cloth Temperature Resistance |
550℃ |
|
℃ Silicone Coating Temperature Resistance |
260℃ |
Properties
It is used at the temperatures from -70℃ to 230℃
Resistant to ozone, oxygen, sunlight, and aging, long using life up to 10 years
High insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
Good flexibility and high surface friction
Chemical corrosion resistance
Silicone Coating Fiberglass Fabric Application
Light duty silicone coated fiberglass fabric is mainly used to make fire blankets, welding blankets, and heat insulation jackets.
Heavy-duty silicone-coated fiberglass fabric is mainly used in industries such as flexible joints and high-temperature gaskets.
Our advantages
Our company has a lot of experience in this field. We have been working in this field for about twenty years.
We have strict quality control.
Our factory has sufficient production capacity.
We have many customers all over the world. We are happy to serve new customers.
If you need acid and alkali-resistant coating, we can also provide you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 | |
| 1.1 | 1850 | |
| 1.3 | 2050 | |
| 1.5 | 2560 | |
| 2 | 2900 | |
| 2.5 | 3400 | |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 | |
| 1 | 1820 | |
| 1.1 | 1850 | |
| 1.5 | 2600 | |
| 2 | 3300 | |
| 2.5 | 4100 |
By thickness, we have two categories of products. One kind has a thickness of over 1mm and another kind has a thickness of below 1mm. You can choose the thickness by the occasion you use.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or pvc bag. We can also pack according to customer's requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
