Product Details:
|
| Product Name: | Silicone Coated Glass Fiber Fabric, | Max Width: | 1000mm |
|---|---|---|---|
| Yarn Tyoe: | E-glass Fiberglass Fabric | Color: | Red, Grey, Black,White |
| Weave: | Electric Insulation Non-metallic Compensator | Coating: | Silicone Rubber Coating |
| Application: | Conveyor Belt And Expansion Joints | Packing: | PVC Package |
| Standing Temperature: | -70-260Degree | Surface Treatment: | Silicon Coated |
| High Light: | 920mm Fireproof Fiberglass Fabric,1500gsm silicone fiberglass fabric,Silicone Coated Fireproof Fiberglass Fabric |
||

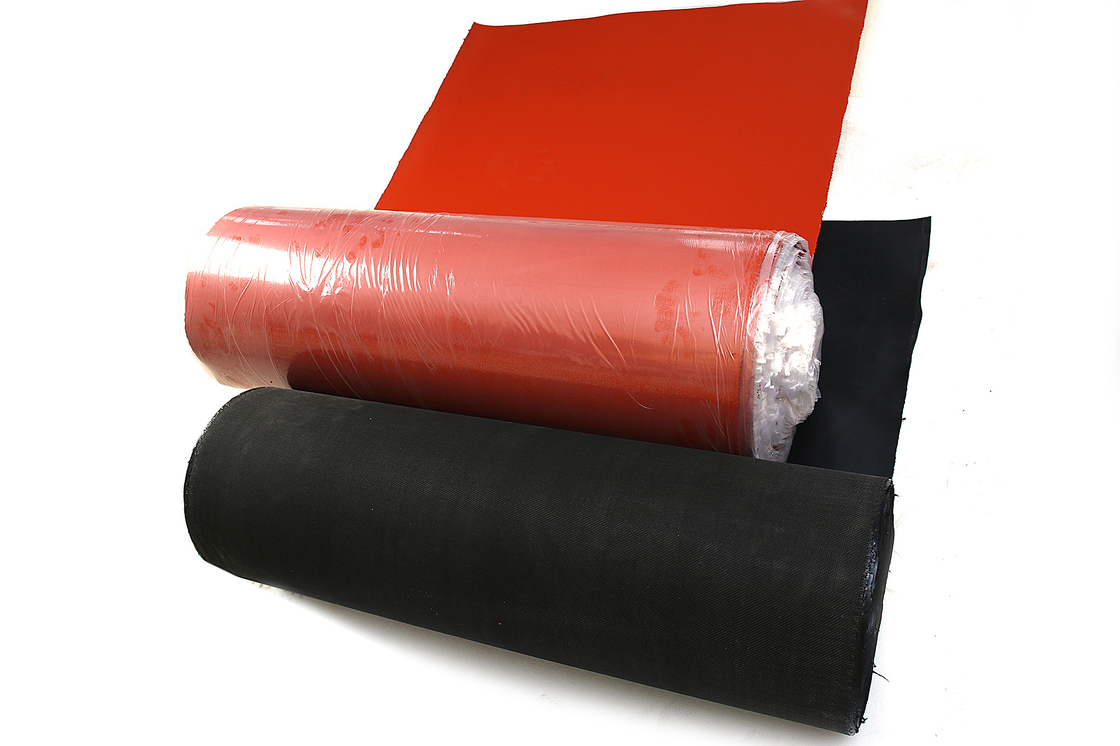

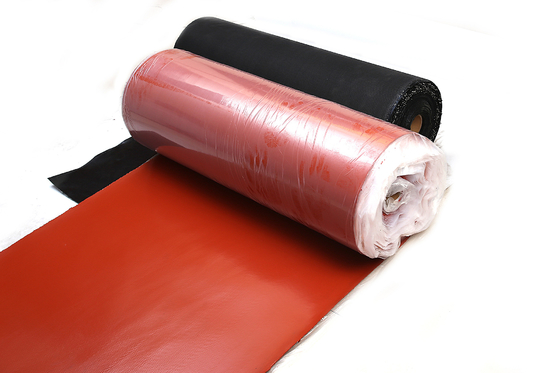

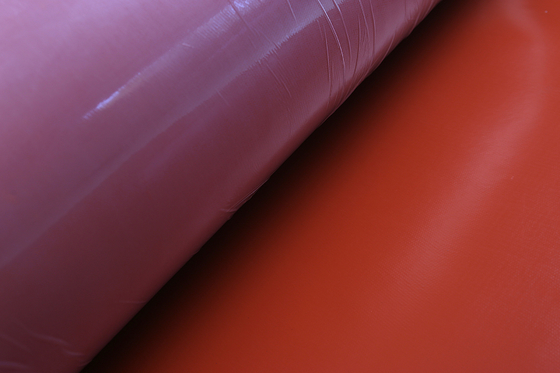

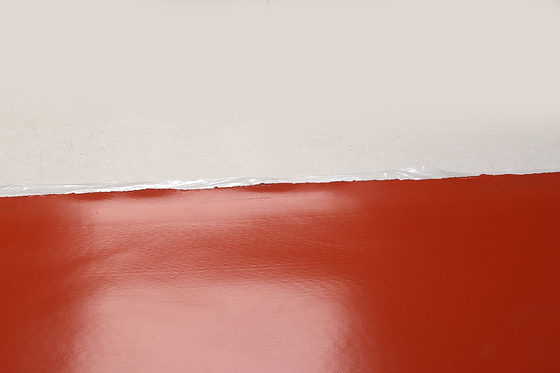

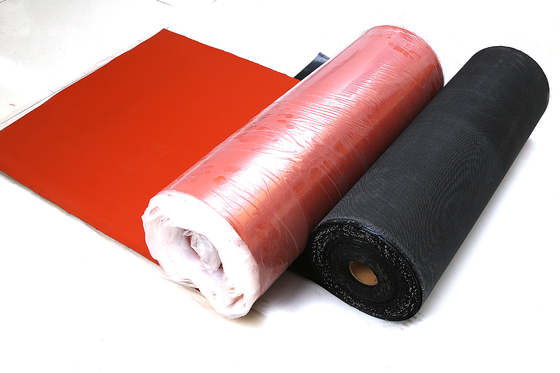

920mm Fireproof Silicone Coated Fiberglass Fabric 1500g/m2
Product Description
Silicone rubber composite fiberglass cloth is a new type of material with good aging resistance and fire resistance, and our customers use it in many occasions.
Technique Data Sheets
|
Item |
Technical Requirement |
|
Thickness(mm) |
±0.05 |
|
Width(mm) |
1000±10 |
|
Length(m/roll) |
50±0.5 |
|
Weight(g/m2) |
3300±50 |
|
Weave |
Plain |
|
Color |
Red |
|
℃ Cloth Temperature Resistance |
550℃ |
|
℃ Silicone Coating Temperature Resistance |
260℃ |
Properties
It is used at the temperatures from -70℃ to 230℃
Resistant to ozone, oxygen, sunlight, and aging, long using life up to 10 years
High insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM
Good flexibility and high surface friction
Chemical corrosion resistance
Silicone Coating Fiberglass Fabric Application
The silicone calendered coated fabric has a superior smooth surface, heat resistance, corrosion resistance, and strong mechanical strength, so it can be made into a conveyor belt for use in heat-resistant and corrosive and corrosive working environments.
Due to the soft surface, it can be cut. It can be made into joints. Due to aging resistance, we can use it outside the door.
Silicone rubber composite fiberglass cloth has good fire resistance and can be used to make fire doors. Various specifications can be produced according to customer requirements.
Our advantages
Our company has a lot of experience in this field. We have been working in this field for about twenty years.
We have strict quality control.
Our factory has sufficient production capacity.
We have many customers all over the world. We are happy to serve new customers.
If you need acid and alkali-resistant coating, we can also provide you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 | |
| 1.1 | 1850 | |
| 1.3 | 2050 | |
| 1.5 | 2560 | |
| 2 | 2900 | |
| 2.5 | 3400 | |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 | |
| 1 | 1820 | |
| 1.1 | 1850 | |
| 1.5 | 2600 | |
| 2 | 3300 | |
| 2.5 | 4100 |
By thickness, we have two categories of products. One kind has a thickness of over 1mm and another kind has a thickness of below 1mm. You can choose the thickness by the occasion you use.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or pvc bag. We can also pack according to customer's requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
