Product Details:
|
| Product Name: | Textured Fiberglass Fabric Cloth | Weight: | 288-1100g/m2, 288g/m2--1100g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Alkali Contect: | Alkali Free |
| Material: | 100% E Fiberglass | Good Features: | High Temperature Resistance,low Thermal Conductivity |
| Color: | White Yellow | Main Application: | Thermal Insulation And Heat Protection |
| High Light: | E Fiberglass Woven Cloth,Alkali Free heat resistant cloth,Texturized Fiberglass Woven Cloth |
||
Texturized Fiberglass Fabric Cloth High-Intensity Heat Resistant Fiberglass Woven Cloth
Fiberglass Description
Texturized fiberglass fabrics are made from continuous fiberglass yarns through a special high-pressure apparatus. Because the yarn contains a lot of air, it has more thermal insulation properties than untreated yarn. The stretched fiberglass fabric has better thermal insulation and filling ability, this structure has better thermal conductivity; high dust holding capacity, and high filterability, these are all affected by the fabric structure. It has a wide range of application values for industrial heat generation and safety fire protection.
Technique Data Sheets
| Product Name | 2025 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 624gsm | ||
| Yarn Density Treads/cm | Warp Density | 8 | |
| Weft Density | 5.7 | ||
| Yarn Type | Warp | ET6-408 T 430 | |
| Weft | ET6-408 T 430 | ||
| Color | Light Yellow | ||
| Breaking Strength Threads/cm | Warp Density | 2125N | |
| Weft Density | 1820N | ||
Main Application
All types of thermal insulation and heat protection.
Welding blankets and fire curtains.
Expansion joints.
Basic cloth for coatings and laminations.
Features
Resistant to ozone, oxygen, light, and climate change.
High strength, high modulus, low shrink, no deformation.
Incombustible. heat insulation, heat preservation.
Higher than working temperature, still keep residual strength.
Corrosion resistance.
Electrical insulation
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

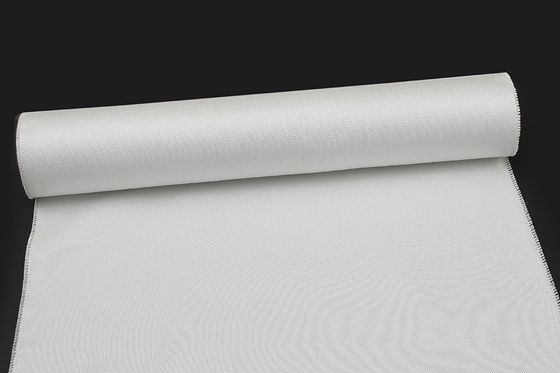

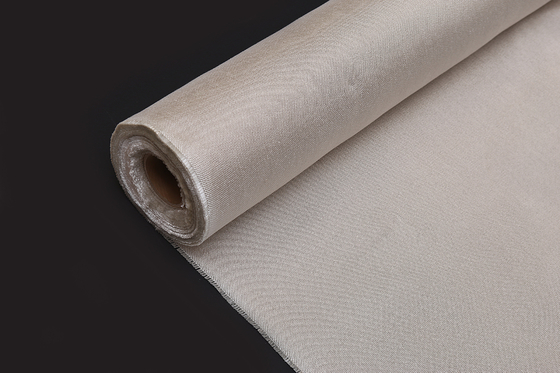

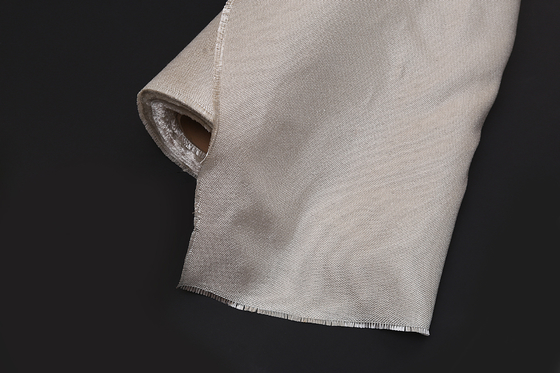

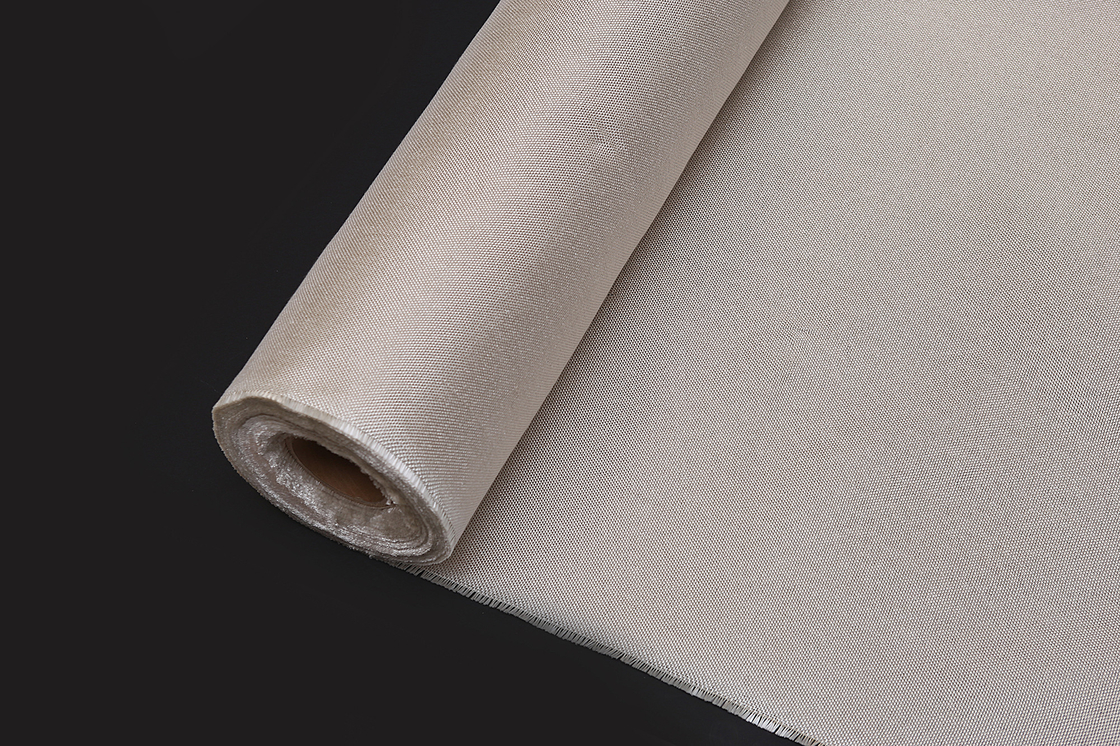

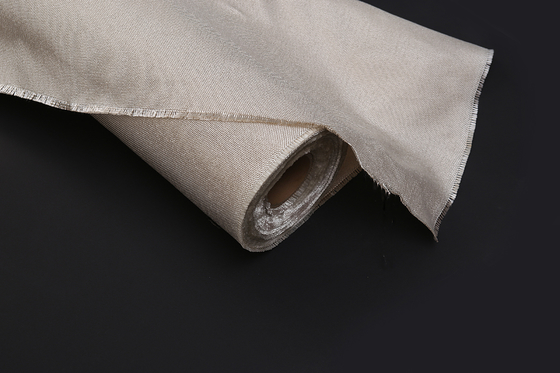

Detail Product Images
Packing
Why Choose Us?
Your inquiry will be replied to within 24hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
