Product Details:
|
| Product Name: | Textured Fireproof Fiberglass Fabric 600g/m2 | Weight: | 624g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Material: | 100% E Fiberglass |
| Good Features: | High Temperature Resistance,low Thermal Conductivity | Color: | White Yellow |
| Main Application: | Thermal Insulation And Heat Protection | ||
| High Light: | 2025 Texturized Fiberglass Cloth,E fiberglass thermal insulation cloth,White Texturized Fiberglass Cloth |
||
2025 White Fiberglass Fabric Texturized Fiberglass Cloth with Thermal Insulation
Fiberglass Description
style 2025 White is a specialized plain weave fiberglass fabric, uniquely designed for a wide range of fabric applications, including insulation lagging or jacketing and removable insulation pads. 2025 White stands out as a powerful fabric, featuring a design that allows it to withstand high heat while still maintaining superb fabric strength.
Technique Data Sheets
| Product Name | 2025 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 624gsm | ||
| Yarn Density Treads/cm | Warp Density | 8 | |
| Weft Density | 5.7 | ||
| Yarn Type | Warp | ET6-408 T 430 | |
| Weft | ET6-408 T 430 | ||
| Color | Light Yellow | ||
| Breaking Strength Threads/cm | Warp Density | 2125N | |
| Weft Density | 1820N | ||
Main Application
Application: For Fabrication of Removable/Reusable Insulation Blankets on Turbines, Fittings, Flanges, and Valves, Oil, Water
Color: Tan
Item Name: Fiberglass Cloth
Item Thickness: .030 in
Length: 50 yd
Material: Fiberglass Fabric
Temperature Rating: 1000 deg F
Tensile Strength : 250 lb/in Warp, 200 lb/in Fill
Weight : 17.8 oz/sq-yd
Width : 60 in
Features
Continuous use temperatures of 1000°F (538°C)
Intermittent use temperatures of 1200°F (648°C)
Good strength-to-weight ratios, with a nominal weight of 18 – 21 (oz/sy)
Inherently resistant to a range of chemicals and airborne particulates
Good resistance to direct, intermittent flame impingement
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

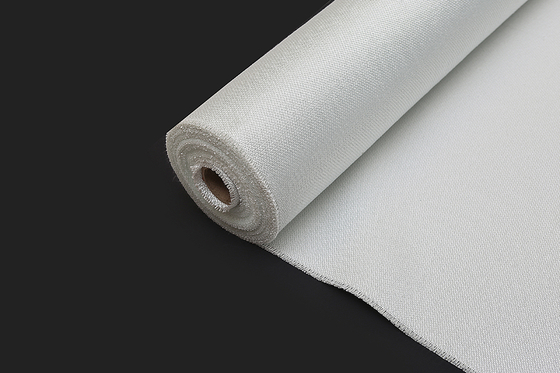

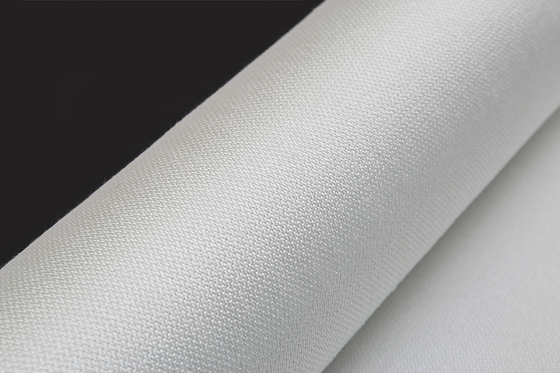

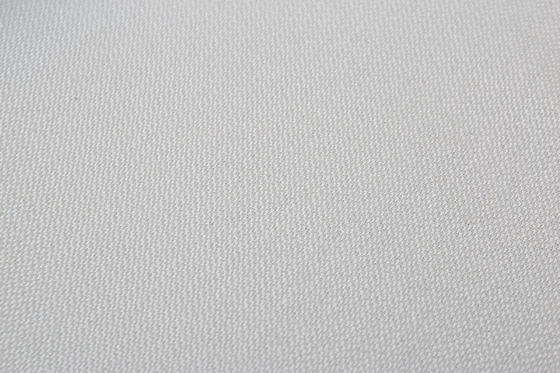

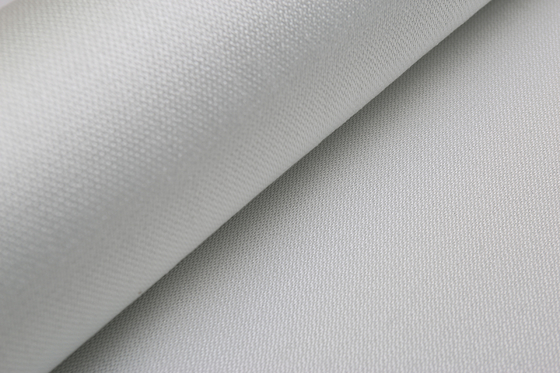

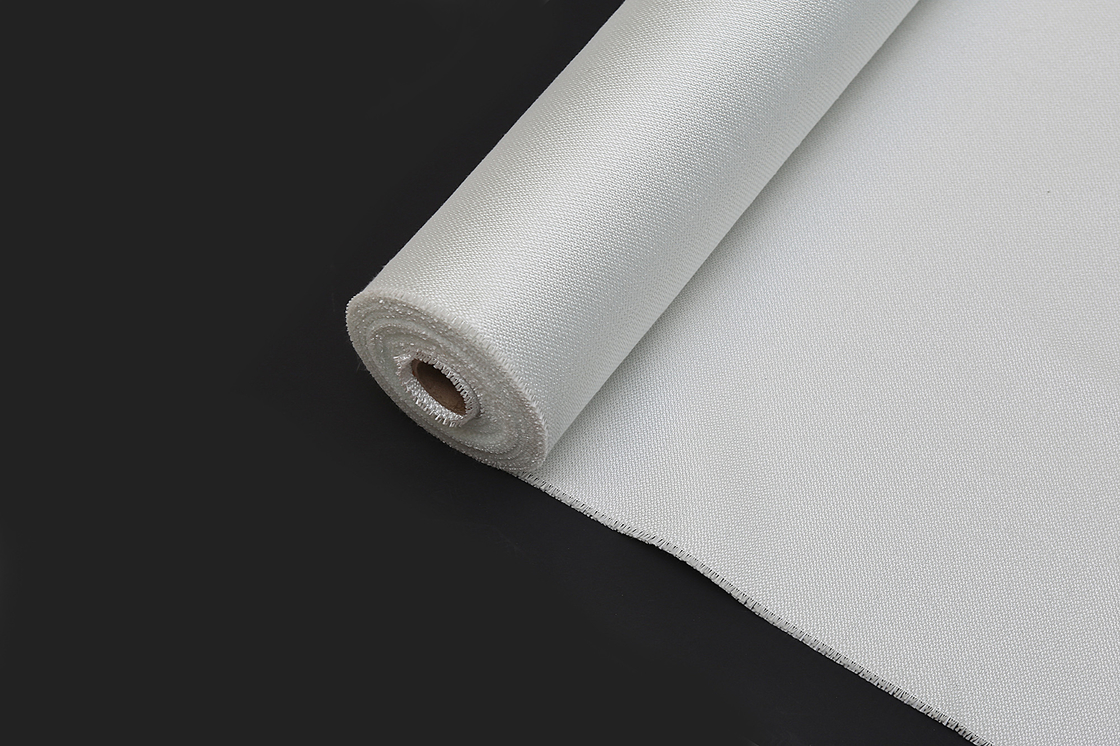

Detail Product Images
Packing
Why Choose Us?
Your inquiry will be replied to within 24hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
