Product Details:
|
| Product Name: | Fiberglass Texturized Yarn (fiberglass Bulked Yarn) | Weight: | 810g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Material: | 100% E Fiberglass |
| Good Features: | High Temperature Resistance,low Thermal Conductivity | Color: | White |
| Main Application: | Thermal Insulation And Heat Protection | Yarn Density: | 6x3.8 Ends/cm |
| High Light: | 0.1mm Texturized Fiberglass Cloth,810gsm Expanded Fiberglass Cloth,5mm Texturized Fiberglass Cloth |
||
0.1-5mm Thickness Expanded Fiberglass Cloth Texturized Fiberglass Cloth For Expansion Joint
Fiberglass Description
The expanded yarn glass fiber cloth is made of high temperature resistant and high strength glass fiber yarn after expansion treatment and special processing. Glass fiber expanded fabric is a new type of fabric developed on the basis of continuous glass fiber open width filter fabric.
Technique Data Sheets
| Product Name | M30 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 810gsm | ||
| Yarn Density Treads/cm | Warp Density | 6 | |
| Weft Density | 3.8 | ||
| Yarn Type | Warp | ET9-816 T 860 | |
| Weft | ET9-1224 T 1250 | ||
| Color | Light Yellow | ||
Main Application
Shipbuilding Industry
Yacht
Automobile Industry
Aerospace
Surfboard
Features
1. It can be used between low temperature - 70 ℃ and high temperature of 1000 ℃, and can withstand instantaneous high temperature.
2. Resistant to ozone, oxygen, light, and weather aging.
3. High strength, high modulus, low shrinkage, and no deformation.
4. Noninflammability, Good heat insulation performance
5. When the temperature exceeds the working temperature, it still has a certain residual strength.
6. Corrosion resistance.
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

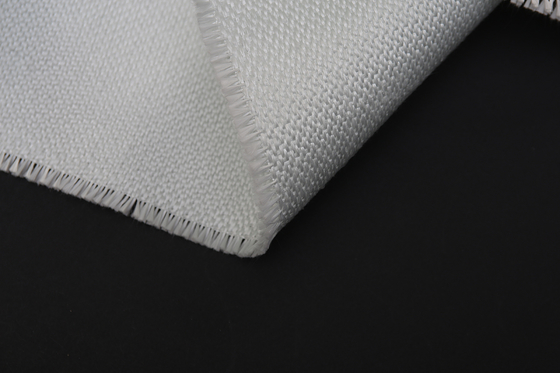

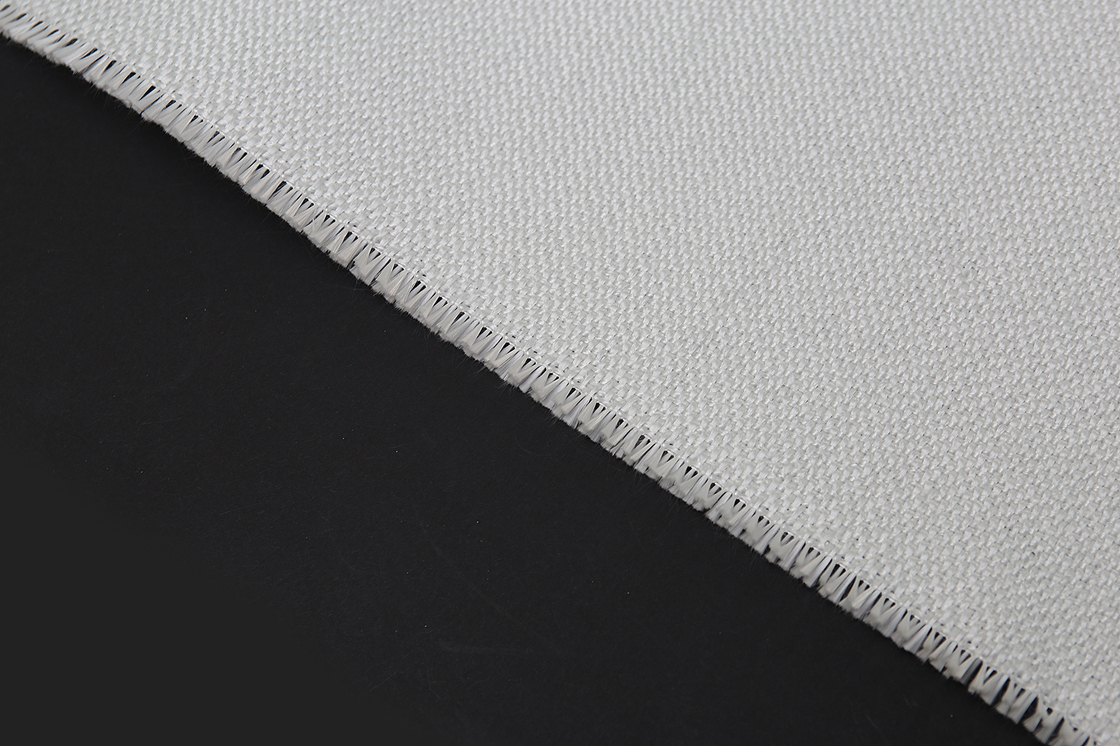

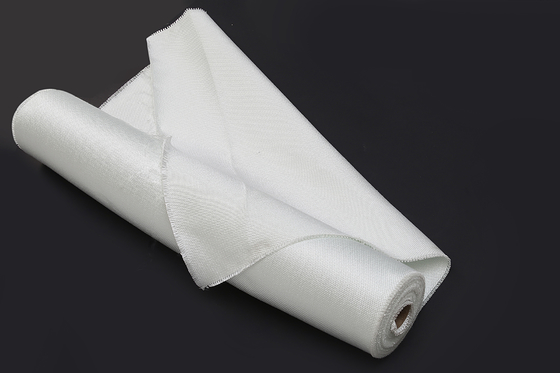

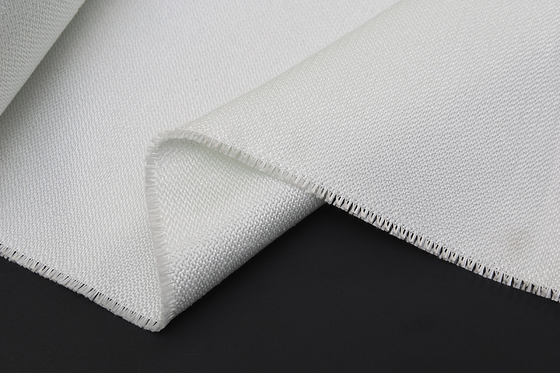

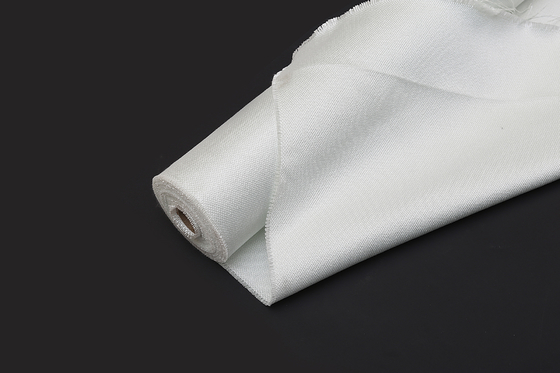

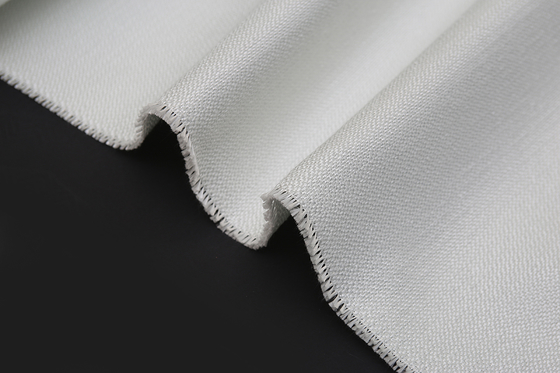

Detail Product Images
Packing
Why Choose Us?
Your inquiry will be replied to within 24 hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
