Product Details:
|
| Product Name: | Vermiculite Coated 2025 Fiberglass Cloth | Treatment: | Vermiculite Coating On The Both Side |
|---|---|---|---|
| Weight: | 630g/㎡ | Thickness: | 0.65mm |
| Thread Count: | 8.1*5.7 | Tensile Strength: | 3800*3500 N/5cm |
| Application: | Heavy Duty Welding Protection | Alkali Content: | Alkali Free |
| High Light: | 800C High Temperature Fiberglass Cloth,heat resistant fiberglass cloth,Welding High Temperature Fiberglass Cloth |
||
800C Vermiculite Coated High-Temperature Fiberglass Cloth Heavy Duty Welding Protection
1. Product Description
It is a medium-weight textured fiberglass fabric impregnated on both sides with a specially formulated vermiculite solution. It has good resistance to extreme temperatures and is able to operate normally up to 750ºC. It has high temperature and wears resistance and good manufacturing mechanical properties. Vermiculite-coated fabrics are primarily used in thermal work such as welding and burning operations as well as fire/welding protection and flexible expansion joints. It can be used for high-temperature thermal and electrical insulation in harsh application environments.
2. Technique Data Sheets
| 1 |
Characteristic
|
2025 with Vermiculite Coated | |
| 2 |
Weave
|
Plain | |
| 3 |
Width
|
(100-180)+1.5/-1.0cm | |
| 4 |
Thickness
|
0.65±0.05mm | |
| 5 |
Weight g/㎡ |
630±30g/㎡ | |
| 6 |
Thread Count
|
Warp Weft |
8±1 per cm 6±1 per cm |
| 7 |
Tensile strength min
|
Warp Weft |
3800 N/5cm 3500 N/5cm |
| 8 | Heat Resistance | 800 ℃ | |
3. Features
Excellent certified fire resistance.
Extreme high temperature is resistant.
Easy to be used, sewn, and fabricated.
Excellent abrasion resistance property.
Excellent tensile strength.
Thickness, unit weight, and weave, all can be customized base on your use method.
4. Application
Welding blanket, fire blanket, and welding curtains
Expansion joints
High-temperature insulation
Heat shield and containment
Gaskets, oven door seals
Removable insulation cover
Safety clothing
Thermal insulation covers
Flexible compensator

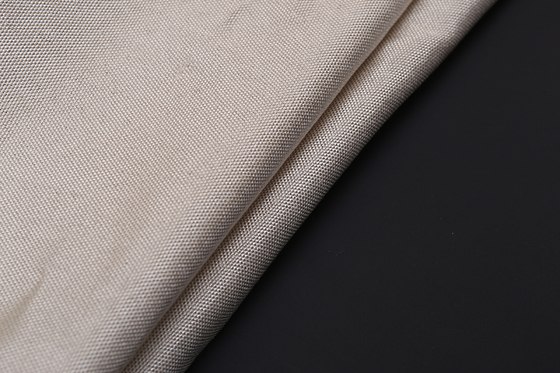

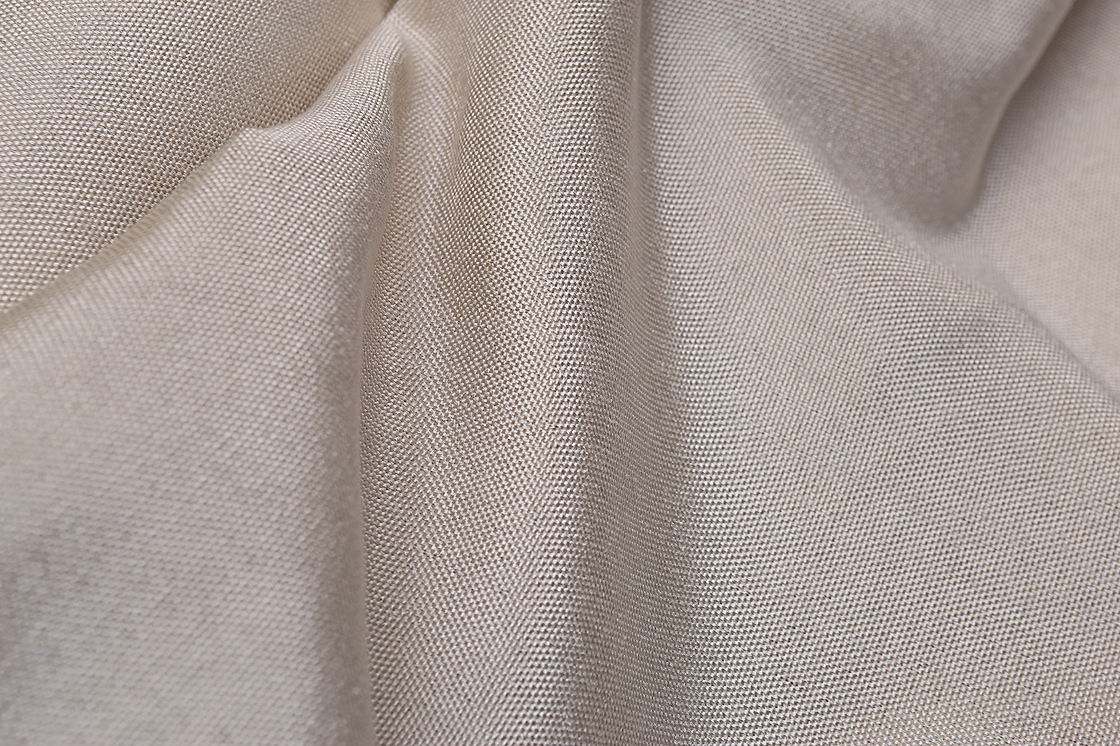

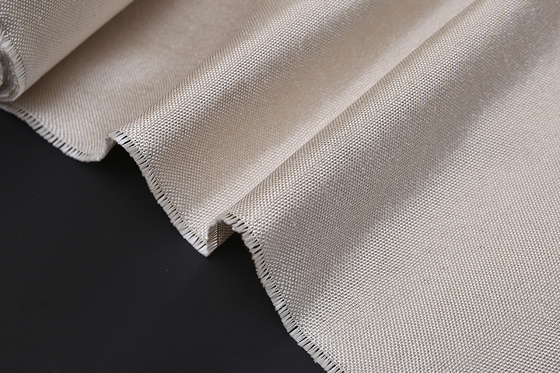

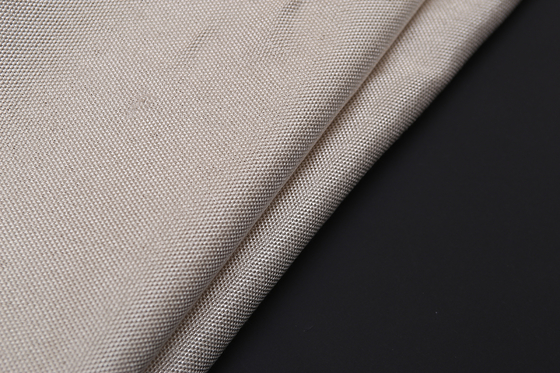

5. Product Detail Images
6. Much More Related Products
| Product Name | Weight g/m2 | Thickness mm | Temperature Resistance |
| 2025 With Vermiculite Coating Fiberglass Cloth | 620 | 0.6 | 800 C |
| M30 With Vermiculite Coating Fiberglass Cloth | 1100 | 1.3 | 800 C |
7. Why Choose Us?
Your inquiry will be replied to within 24 hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
8. RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
