Product Details:
|
| Product Name: | Vermiculite Coated 2025 Fiberglass Cloth | Treatment: | Vermiculite Coating On The Both Side |
|---|---|---|---|
| Weight: | 630g/㎡ | Thickness: | 0.65mm |
| Thread Count: | 8.1*5.7 | Tensile Strength: | 3800*3500 N/5cm |
| Application: | Heavy Duty Welding Protection | Alkali Content: | Alkali Free |
| High Light: | Silica High Temperature Fiberglass Cloth,2025 high temp fiberglass fabric,Plain High Temperature Fiberglass Cloth |
||
Vermiculite Coated Silica High-Temperature Fiberglass Cloth Working Temperature 1100C
1. Product Description
With the ability to withstand the continuous temperatures of 900-degree Celsius and most significantly, the instantaneous temperature of 1400-degree Celsius, the silica cloth is highly heat resistant. It has been made to be suitable for rocket and missile manufacturing in the aerospace industry.
The yarn and filtration mesh pieces are treated with the use of a high resistance coating. They are perfectly suitable for heat preservation materials as well as fire fighting equipment such as fireproof garments. They are excellent in dust collection and filtration equipment.
2. Technique Data Sheets For M30 Texturized Fiberglass Cloth
| BASE FABRIC | Base fabric style No. M30 | |||
| (Metric) | (English) | Test methods | ||
| Weave | Plain | Plain | ||
| Yarn | ||||
| Warp | ET9 1250 tex | ETG 4.0 | ||
| Weft | ET9 1250 tex | ETG 4.0 | ||
| Construction | ||||
| Warp | 5 ± 0.5 ends/cm | 13 ± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 3 ± 0.3 picks/cm | 8 ± 1 picks/inch | ASTM D 3775-96 | |
| Weight | 1000 ± 50 g/m2 | 29.41 ± 1.5 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.3 ± 0.1 mm | 0.05 ± 0.005 inch | ASTM D1777-96 | |
3. Features
Application: For Use as the Hot Side of Insulation Blankets, Radiant Heat Shields and Any Other Application Where a Thermal Barrier is Required
Item Name: Fiberglass Cloth
Item Thickness: .030 in
Length: 50 yd
Material: Fiberglass Fabric
Special Features: Plain Weave
Tear Strength: 50 lb Warp, 25 lb Fill
Temperature Rating: 1200 deg F
Tensile Strength : 250 lb/in Warp, 200 lb/in Fill
Weight: 17.5 oz
Width : 60 in
4. Application
Welding blanket, fire blanket, and welding curtains
Expansion joints
High-temperature insulation
Heat shield and containment
Gaskets, oven door seals
Removable insulation cover
Safety clothing
Thermal insulation covers
Flexible compensator

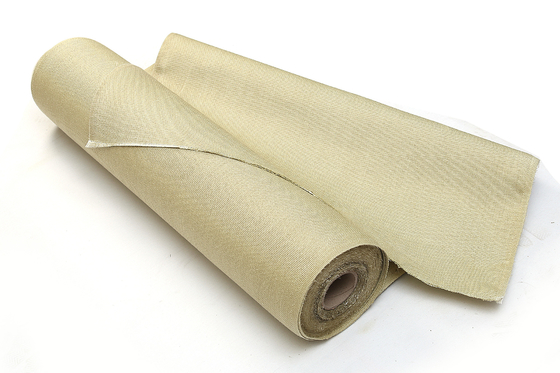

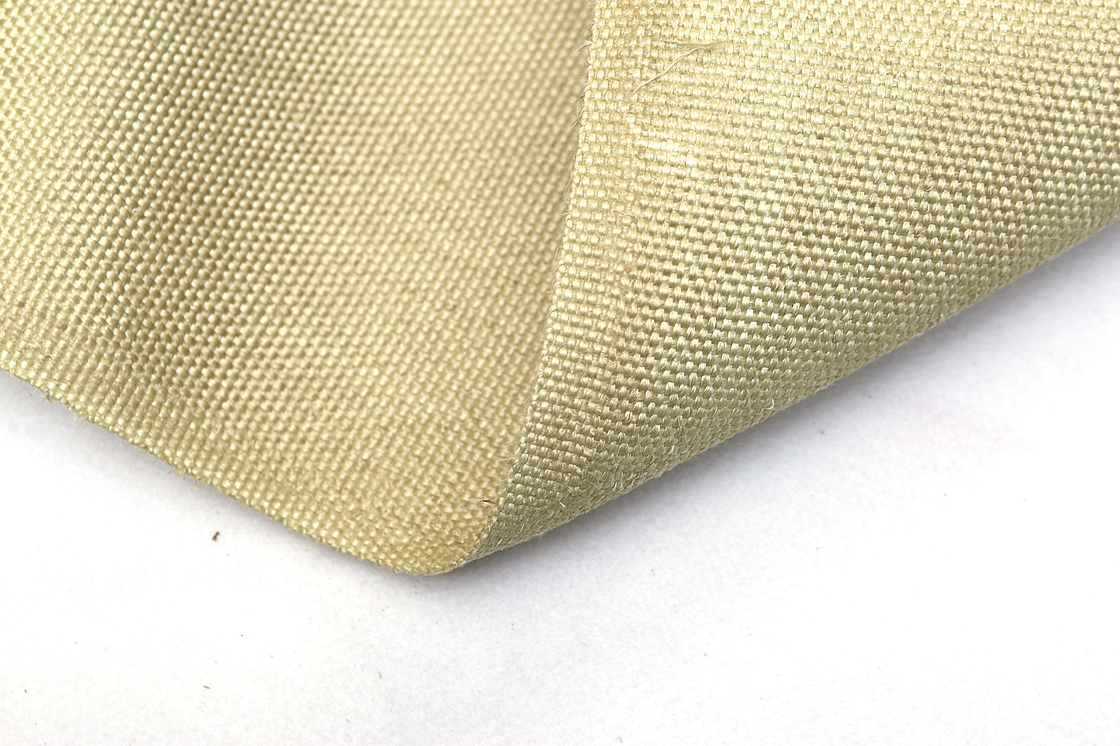

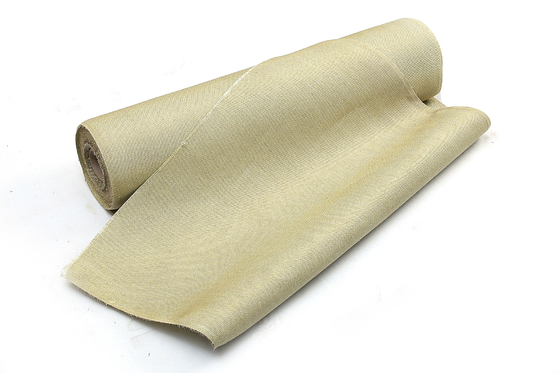

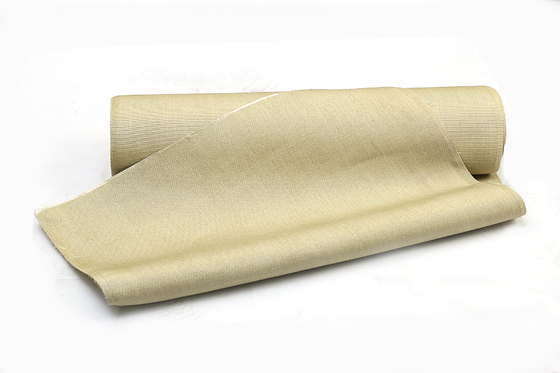

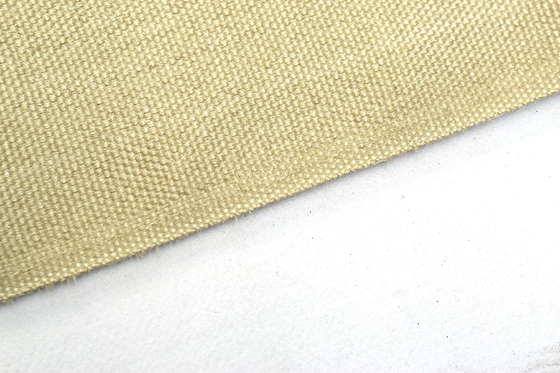

5. Product Detail Images
6. Much More Related Products
| Product Name | Weight g/m2 | Thickness mm | Temperature Resistance |
| 2025 With Vermiculite Coating Fiberglass Cloth | 620 | 0.6 | 800 C |
| M30 With Vermiculite Coating Fiberglass Cloth | 1100 | 1.3 | 800 C |
