Product Details:
|
| Product Name: | Vermiculite Coated 2025 Fiberglass Cloth | Treatment: | Vermiculite Coating On The Both Side |
|---|---|---|---|
| Weight: | 630g/㎡ | Thickness: | 0.65mm |
| Thread Count: | 8.1*5.7 | Tensile Strength: | 3800*3500 N/5cm |
| Application: | Heavy Duty Welding Protection | Alkali Content: | Alkali Free |
| High Light: | 0.65mm vermiculite coated fiberglass cloth,high temperature fiberglass fabric,630gsm vermiculite coated fiberglass cloth |
||
Spark Resistant Fire Fiberglass Welding Blanket Roll Fabric Vermiculite Coated
1. Product Description
1.3mm thickness M30 with vermiculite coated fiberglass cloth is a heavyweight woven texturized fiberglass fabric impregnated with specially formulated vermiculite dispensers that provide high temperature and abrasion resistance properties for the manufacturer of welding protection, gaskets, flexible expansion joints, removable jackets and other types of fire control systems.
2. Technique Data Sheets For M30 Texturized Fiberglass Cloth
| BASE FABRIC | Base fabric style No. M30 | |||
| (Metric) | (English) | Test methods | ||
| Weave | Plain | Plain | ||
| Yarn | ||||
| Warp | ET9 1250 tex | ETG 4.0 | ||
| Weft | ET9 1250 tex | ETG 4.0 | ||
| Construction | ||||
| Warp | 5 ± 0.5 ends/cm | 13 ± 2 ends/inch | ASTM D 3775-96 | |
| Weft | 3 ± 0.3 picks/cm | 8 ± 1 picks/inch | ASTM D 3775-96 | |
| Weight | 1000 ± 50 g/m2 | 29.41 ± 1.5 oz/yd2 | ASTM D3776-96 | |
| Thickness | 1.3 ± 0.1 mm | 0.05 ± 0.005 inch | ASTM D1777-96 | |
3. Features
These vermiculite film platelets are embedded within the fabric’s fiber bundles. Coated on the surface, these platelets form an insulating film that acts as an effective flame/heat barrier
4. Application
Welding blanket, fire blanket, and welding curtains
Expansion joints
High-temperature insulation
Heat shield and containment
Gaskets, oven door seals
Removable insulation cover
Safety clothing
Thermal insulation covers
Flexible compensator

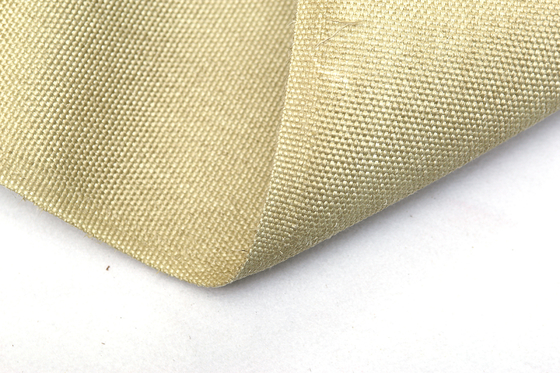

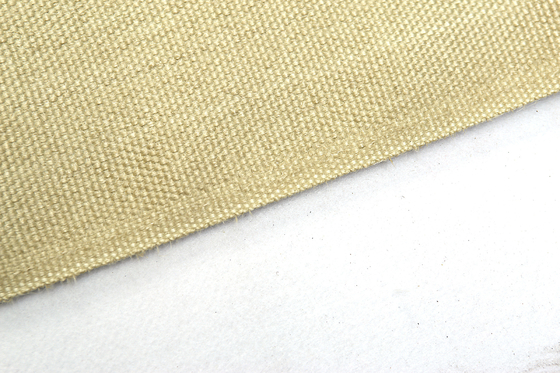

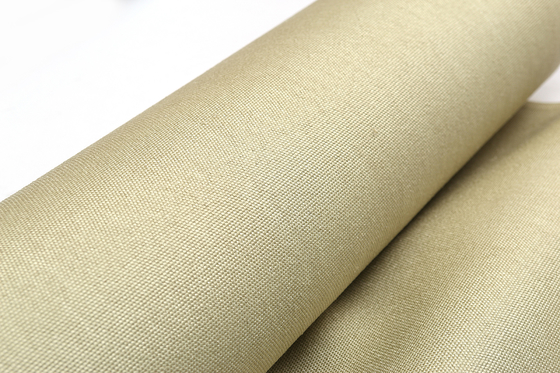

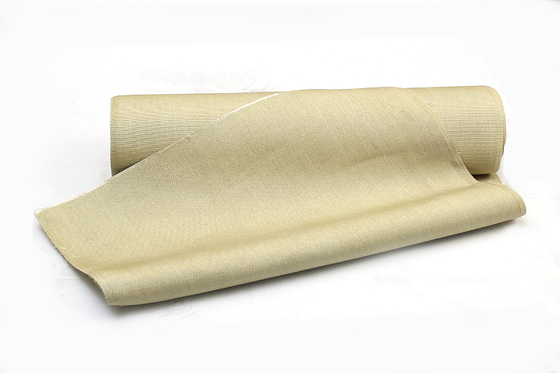

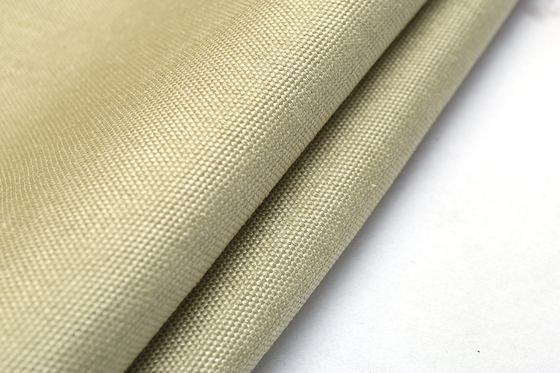

5. Product Detail Images
6. Much More Related Products
| Product Name | Weight g/m2 | Thickness mm | Temperature Resistance |
| 2025 With Vermiculite Coating Fiberglass Cloth | 620 | 0.6 | 800 C |
| M30 With Vermiculite Coating Fiberglass Cloth | 1100 | 1.3 | 800 C |
7. Why Choose Us?
Your inquiry will be replied to within 24 hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
8. RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
