Style 1280 1.6 Oz / Sq E Fiberglass Cloth 50 Yard 54.25 g/m2

Style 1280 1.6 Oz / Sq E Fiberglass Cloth 50 Yard 54.25 g/m2
Style 1280 1.6 Oz / Sq E Fiberglass Cloth 50 Yard 54.25 g/m2 Style 1280 1.6 Oz / Sq E Fiberglass Cloth 50 Yard 54.25 g/m2 Style 1280 1.6 Oz / Sq E Fiberglass Cloth 50 Yard 54.25 g/m2

Large Image :  Style 1280 1.6 Oz / Sq E Fiberglass Cloth 50 Yard 54.25 g/m2

Product Details:
Place of Origin: China
Brand Name: Shenghe
Certification: NA
Model Number: Style 1280
Payment & Shipping Terms:
Minimum Order Quantity: 500 Meters
Price: Negotiation
Packaging Details: 2500 Meters per Roll
Delivery Time: 10-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 meters per day
Contact Now

Style 1280 1.6 Oz / Sq E Fiberglass Cloth 50 Yard 54.25 g/m2

Description
Product Name: 1280 Style Fiberglass Fabric For Electronic Industry Type Of Yarns: ECD 450 1/0, ECD 450 1/0
Yarn Density: 60*60/In Breaking Strength: 120*120 Lb/in
Thickness: 0.0025 In Weight: 1.6oz
Application: Equipment Parts, Pipes Plumbing Weave Structure: Plain Weave
High Light:

Style 1280 E Fiberglass Cloth

,

1.6 Oz e glass fiberglass cloth

,

E Fiberglass Cloth 50 Yard

Style 1280 1.6 Oz/Sq Yd Plain Weave Fiberglass Cloth 50 Yard 54.25 G/M2



1. Description

Fiberglass is a lightweight, versatile, and cost-effective material used in an endless variety of industrial and commercial products. Since it is made from glass, it is naturally resistant to heat, fire, water, chemicals, pests, and bacteria. It is lighter and more flexible than other types of mesh products such as steel, but still retains high tensile strength, which means it can hold up under pressure without breaking. In fabric form, fiberglass has the added benefit of conforming to odd-shaped angles and curves, such as those found on a surfboard or a snowmobile. In these applications, the fiberglass fabric provides a framework to which a liquid resin is bonded, providing strength, form, and durability to the end product.



2. Properties

Even fabric thickness.
Excellent wet out with resin.
Good Thermal Conductivity

Low Moisture Absorption



3. 1280 Style Fiberglass Cloth Application

Markets

  • Automotive & Transportation
  • Building & Construction
  • Consumer Goods

Industrial Applications

  • Consumer Goods — Appliances & Electronics
  • Automotive & Transportation — Automotive Interior
  • Building & Construction — Building Materials Pipes & Plumbing
  • Industrial — Chemical & Industrial Manufacturing Equipment & Parts

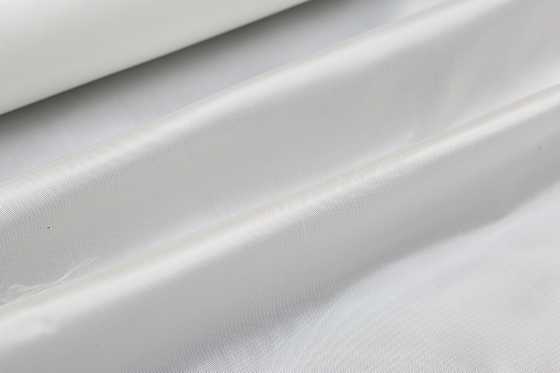

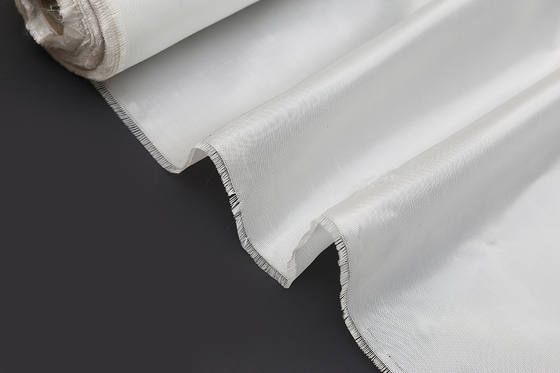

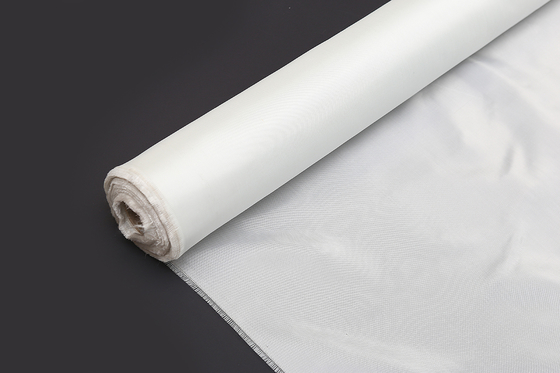

4. Detail Style 1280 Fiberglass Cloth Image

Style 1280 1.6 Oz / Sq E Fiberglass Cloth 50 Yard 54.25 g/m2 0





5. Data Sheet for 1280 Fiberglass Cloth

Specification-1280
NO. Technical Data SI Units US System
1 Weave Style Plain
2 Fabric Weight 54g/m2 1.6oz/yd2
3 Width (cm) 107 127 157
4 Length (m) 2500
5 Yarn Density
Ends Warp 23.6/cm 60/in
Picks Weft 23.6/cm 60/in
6 Yarn
Warp EC5 11 ECD 450 1/0
Weft EC5 11 ECD 450 1/0
7 Breaking Strength
Warp 210N/cm 120lbf/in
Weft 157N/cm 90lbf/in
8 Thickness 0.06mm 2.3mils



6. Much More Related Electronic Woven Reinforcement Fiberglass Cloth Data Sheets

NO. Style Width, cm Weight,g/m2 Thickness, mm Weaving type
1 104 107 127 18.7±3.0 0.028 Plain
2 106 107 127 24.8±3.0 0.036 Plain
3 1070 107 127 33.4±3.0 0.055 Plain
4 1080 107 127 157 46.8±3.0 0.062 Plain
5 1280 107 127 157 53.6±3.0 0.064 Plain
6 2112 107 127 157 71.5±4.0 0.081 Plain
7 2113 107 127 157 79.3±4.0 0.080 Plain
8 3313 107 127 157 81.4±4.0 0.084 Plain
9 1674 107 127 157 207 254 98.0±4.0 0.100 Plain
10 2116 107 127 157 207 254 106.8±4.0 0.094 Plain
11 1165 107 127 157 207 254 121.0±8.8 0.110 Plain
12 1522 107 127 157 207 254 123.4±8.8 0.150 Plain
13 154【1211】 107 127 157 207 254 123.8±8.8 0.140 Plain
14 985 107 127 157 207 254 139.0±8.8 0.130 Plain
15 985A 107 127 157 207 254 143.0±8.8 0.140 Plain
16 1652 107 127 157 207 254 140.0±8.8 0.114 Plain
17 1064 107 127 157 207 254 156.0±8.8 0.150 Plain
18 5430 107 127 157 207 254 180.0±8.8 0.153 Plain
19 7628L 107 127 157 207 254 201.0±12.0 0.178 1/3 Twill
20 7628T 107 127 157 207 254 205.4±16.6 0.180 Plain
21 1528 107 127 157 207 254 211.9±16.6 0.165 Plain
22 7638H 107 127 157 207 254 285.0±16.6 0.265 Plain
23 1142 107 127 157 207 254 290.4±16.6 0.279 Plain
24 7530 107 127 157 207 254 345.0±16.6 0.290 Plain
25 1523 107 127 157 207 254 392.0±16.6 0.340 Plain
26 162 107 127 157 207 254 400.0±20.0 0.381 Plain
27 1589 107 127 157 207 254 414.0±20.0 0.406 Plain
28 1564 107 127 157 207 254 420.4±20.0 0.380 Plain



7. Pallet Included

Style 1280 1.6 Oz / Sq E Fiberglass Cloth 50 Yard 54.25 g/m2 1
