Product Details:
|
| Features: | Insulation And Adhesive Tape Industry | Product Name: | 2113 Style Fiberglass Fabric For Electronic Industry |
|---|---|---|---|
| Type Of Yarns: | ECE 225 1/0 ECE 225 1/0 | Yarn Density: | 40*39/In |
| Breaking Strength: | 120*120 Lb/in | Thickness: | 0.08MM |
| Weight: | 2.1oz | Application: | Insulation And Adhesive Tape Industry |
| High Light: | 2.3 Oz / Sq Fiberglass Cloth,2.1oz fiberglass waterproofing fabric,Style 2113 Fiberglass Cloth |
||
Style 2113 2.3 Oz/Sq Yd Fiberglass Cloth For Insulation and Adhesive Tape Industry
1. Description
Electronic Glass Fiber Fabric is woven with electronic-grade glass fiber yarn. E-Fabric is an important basic material for electronic information, aerospace, and other related electronic fields. It is widely used in computers, mobile phones, televisions, refrigerators, sports, and other electrical circuit boards.
Finished E-Glass Fiber Fabrics are mainly designed for the PCB industry. are manufactured with Nittobo advanced technologies and modern equipment. They are specially designed for printed boards.
It has excellent properties of electrical insulation and processing. They are the necessary basic materials for the electronic industry such as computers and communication equipment.
2. Properties
a. Even fabric thickness
b. Excellent wet out with resin
c. Excellent dielectricity
d. Very few appearance defects
e. Excellent process performance
3. 2113 Style Fiberglass Cloth Application
With the continued development of the popularization and promotion3 of smartphone and tablet PC applications.glass fiber cloth, as one of the main upstream raw materials in the PCB field, is also increasing development to the thin, ultra-thin type, and the requirements on the quality of the fiberglass cloth are getting higher and higher

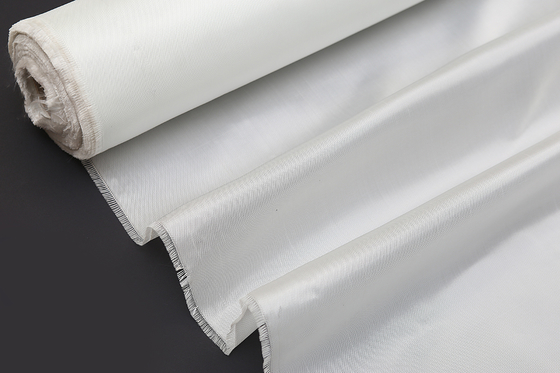

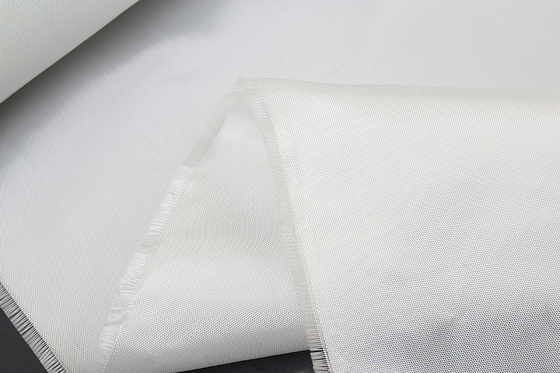

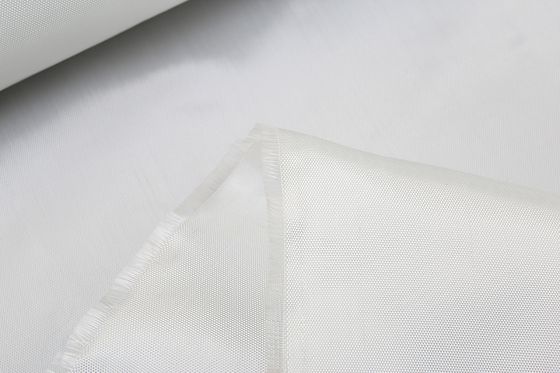

4. Detail Style 2113 Fiberglass Cloth Image
5. Data Sheet for 2113 Fiberglass Cloth
| Specification-2113 | |||
| NO. | Technical Data | SI Units | US System |
| 1 | Weave Style | Plain | |
| 2 | Fabric Weight | 79.3g/m2 | 2.38oz/yd2 |
| 3 | Width (cm) | 107 127 157 | |
| 4 | Length (m) | 2500 | |
| 5 | Yarn Density | ||
| Ends Warp | 16/cm | 40/in | |
| Picks Weft | 15.6/cm | 39/in | |
| 6 | Yarn | ||
| Warp | EC7 22 | ECE 225 1/0 | |
| Weft | EC7 22 | ECD 225 1/0 | |
| 7 | Breaking Strength | ||
| Warp | 210N/cm | 120lbf/in | |
| Weft | 210N/cm | 120lbf/in | |
| 8 | Thickness | 0.08mm | 3mils |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage
