Product Details:
|
| Features: | Electrical Insulation | Product Name: | 985 Style Fiberglass Fabric For Making Tape |
|---|---|---|---|
| Type Of Yarns: | ECD 450 1/0, ECD 450 1/0 | Yarn Density: | 127*140/In |
| Breaking Strength: | 195*175 Lb/in | Thickness: | 0.13mm |
| Weight: | 140gsm | Application: | 985 Style Fiberglass Fabric For Making Tape |
| High Light: | 985 Style E Fiberglass Cloth,140gsm plain weave fiberglass fabric,985 E Fiberglass Cloth |
||
China 985 Style Plain Weave Fiberglass Fabric For Making Tape And Glass Cloth Electrical Tape
1. Description
Fiberglass is a strong lightweight composite material and is used for many products. Although it is neither as strong nor stiff when compared to carbon fiber, it is less brittle and its raw materials are much cheaper. Its bulk strength and weight are also better than many metals, and it can be more readily molded into complex shapes. Applications of fiberglass include aircraft, boats and automobiles. We are main provide each different kind of electrinic insulation glass fiber fabrics and fireproof industry fiberglass cloth
2. Properties
Strong Lightweight Composite Material
Fiberglass is Less Costly than Carbon Fiber
Great for Molding Into Complex Shapes
3. Fiberglass Cloth Application
Electronic grade fiberglass cloth is made of E glass fiber on air jet loom. It is widely used in the electronics industry such as copper clad laminate, printed board. 985 style cloth is suitable for making tapes.

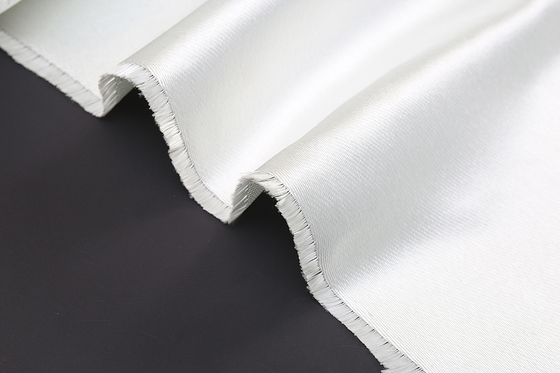

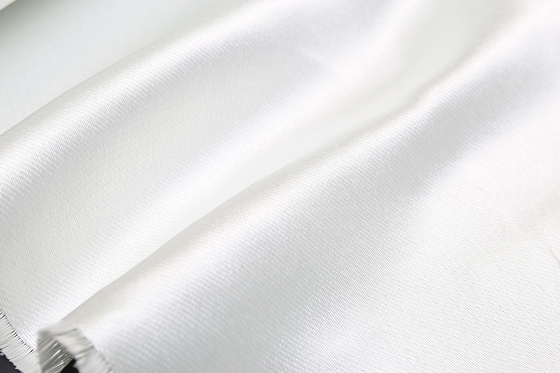

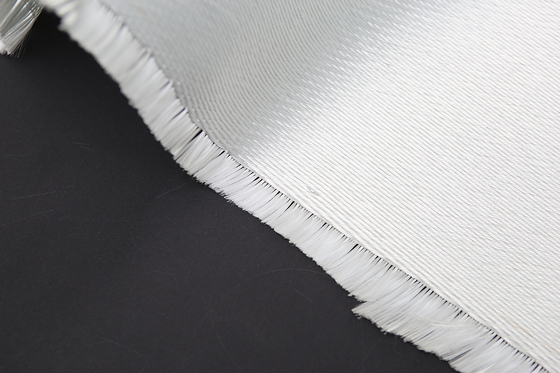

4. Detail Style 985 Fiberglass Cloth Image
5. Data Sheet for 985 Fiberglass Cloth
| Specification-985 | |||
| NO. | Technical Data | SI Units | US System |
| 1 | Weave Style | Plain | |
| 2 | Fabric Weight | 139g/m2 | 4.2oz/yd2 |
| 3 | Width (cm) | 107 127 157 207 254 | |
| 4 | Length (m) | 2500 | |
| 5 | Yarn Density | ||
| Ends Warp | 50/cm | 24/in | |
| Picks Weft | 25.4/cm | 22/in | |
| 6 | Yarn | ||
| Warp | EC5 11 | ECD 450 1/0 | |
| Weft | EC9 33 | ECD 150 1/0 | |
| 7 | Thickness | 0.13mm | 5.1mils |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage and Packing
