Product Details:
|
| Product Name: | China 1522 Style Fiberglass Cloth With Silane Finish | Type Of Yarns: | ECG 150 1/2 , ECG 150 1/2 |
|---|---|---|---|
| Yarn Density: | 24*22/In | Breaking Strength: | 160 X 135 Lb./in |
| Thickness: | 0.0055" | Finished Weight: | 3.60 Oz./sq. Yd |
| Width: | 50" | ||
| High Light: | 1522 4oz E Fiberglass Cloth,Plain 27" Glass Fiber Cloth,SUPs E Fiberglass Cloth |
||
1522 4oz Fiberglass Fabric E-glass Plain 27" Glass Fiber Cloth Used for Wood Strip Kayaks and SUPs
1. Description
Surfboard fiberglass cloth is a plain weave fabric made of alkali-free glass filaments. Strong, durable and lightweight, this fabric is designed to provide exceptional handling and cleanliness to ensure a smooth manufacturing process.
Thanks to its perfect finish, the fabric gives the surfboard a bright whiteness that makes the graphics stand out.
We have developed a wide variety of styles, each with unique physical properties to help you meet the delicate requirements of the surfboard industry.
2. Properties
3.74 oz./sq. yd. Lightweight Boat or Tooling Cloth. Tight plain weave. Thread Count 24 x 22. Breaking Strength. 160 x 135 lb./in. Finished Weight 3.60 oz./sq. yd.Thickness - .0055", 50" width.
3. Fiberglass Cloth Application
This lightweight fiberglass fabric is widely used in many industries field. Now it can be one of a separate series with other e-glass fiberglass fabric. A series of glass fiber fabrics are mainly used to produce sports goods, such as snowboard, surfboard, and skimboard.

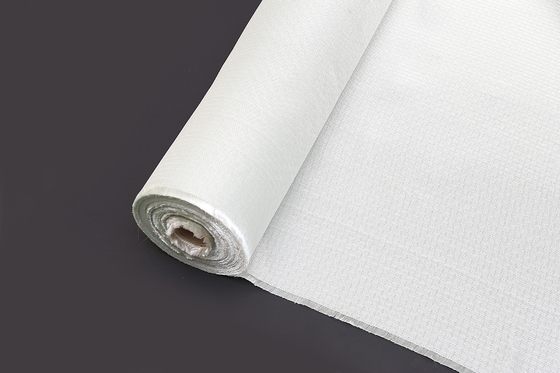

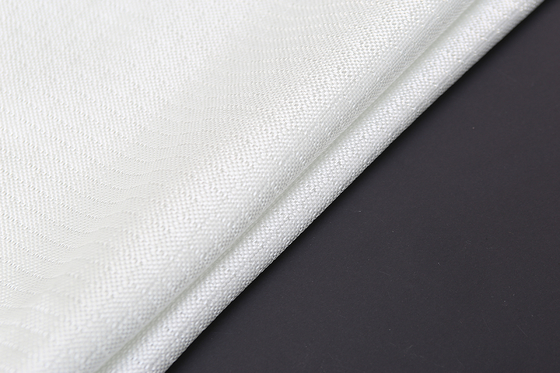

4. Detail Style 1165 Fiberglass Cloth Image
5. Data Sheet for 1522 Fiberglass Cloth
| Specification-1522 | |||
| NO. | Technical Data | SI Units | US System |
| 1 | Weave Style | Plain | |
| 2 | Fabric Weight | 126g/m2 | 3.71oz/yd2 |
| 3 | Width (cm) | 107 127 157 207 254 | |
| 4 | Length (m) | 2500 | |
| 5 | Yarn Density | ||
| Ends Warp | 9.4/cm | 24/in | |
| Picks Weft | 8.7/cm | 22/in | |
| 6 | Yarn | ||
| Warp | EC9 33*2 | ECG 150 1/2 | |
| Weft | EC9 33*2 | ECG 150 1/2 | |
| 7 | Breaking Strength | ||
| Warp | 341N/cm | 195lbf/in | |
| Weft | 306N/cm | 175lbf/in | |
| 8 | Thickness | 0.12mm | 4mils |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage and Packing
