Product Details:
|
| Features: | Skimboard And Surfboard | Product Name: | 12 Oz Fiberglass Cloth Woven Roving |
|---|---|---|---|
| Type Of Yarns: | EC7 22*2*5 EC7 22*2*5 | Yarn Density: | 11*6.3/cm |
| Weave: | Plain Weave | Thickness: | 0.35mm |
| Weight: | 400gsm | Keywords: | Fiber Glass , Fiberglass Cloth , Fiberglass Woven Roving , Glass Fibre |
| High Light: | Lightweight Fiberglass Cloth 0.35mm,Skimboard lightweight glass fibre cloth,400gsm Lightweight Fiberglass Cloth |
||
China Customized Lightweight Fiberglass Cloth Used For Skimboard And Surfboard
1. Description
Among reinforcements, fiberglass fabrics are still the most commonly used reinforcements in the composites industry today. In general, they are the cheapest reinforcement material and easy to handle. When combined with resin, it provides excellent strength, weight, and aesthetics to composite parts.
E-Glass Woven Rovings are bi-directional fabrics made from direct roving. The warp and weft yarns are aligned in a parallel and flat manner, resulting in uniform tension. Densely packed fibers with high dimensional stability and easy handling. E-Glass Woven Rovings is a high-performance reinforcement widely used in hand lay-up and Robots manufacture boats, boats, aircraft and auto parts, furniture, and sports equipment.
2. Properties
Complete and fast wet-out
Easy handling
Good mechanical properties
Good moldability
High productivity
The high strength of parts
Uniform tension
3. Fiberglass Cloth Application
Woven fiberglass cloths are very common for marine & composite construction and repair. Lightweight cloths tend to provide a smooth finish and are excellent for producing a waterproofing layer over wood or other surfaces when combined with the appropriate resin. Our Fiberglass cloth is woven in various configurations from five basic weave patterns, called plain, leno, satin, twill, and crowfoot. Fiberglass cloth is a strong and durable woven textile used mainly for PTFE coating, reinforcement for copper-clad laminates, composites, electrical insulation, mineral wool lamination and Filtration markets, and so on.

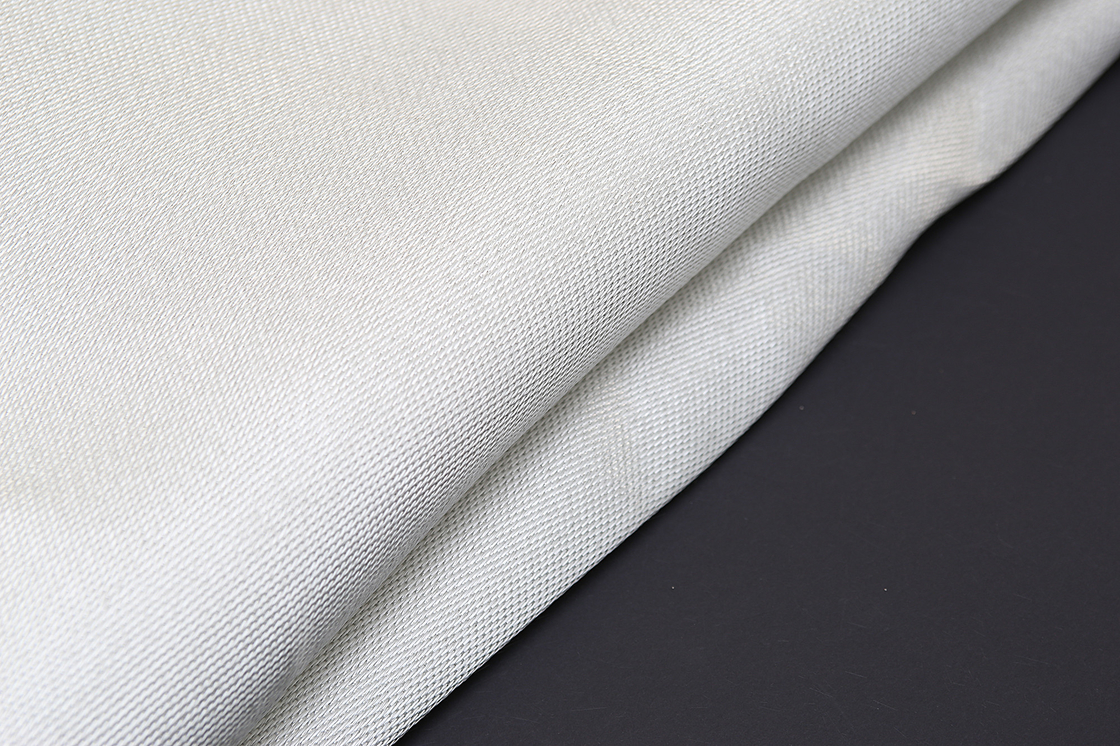

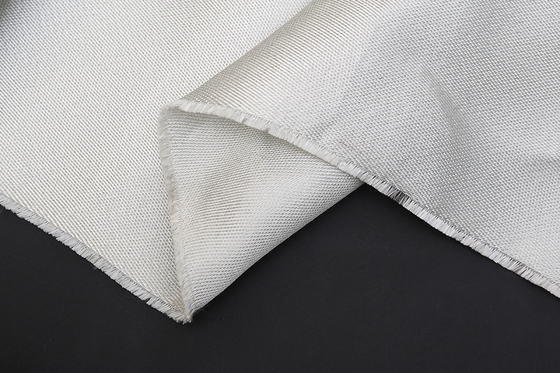

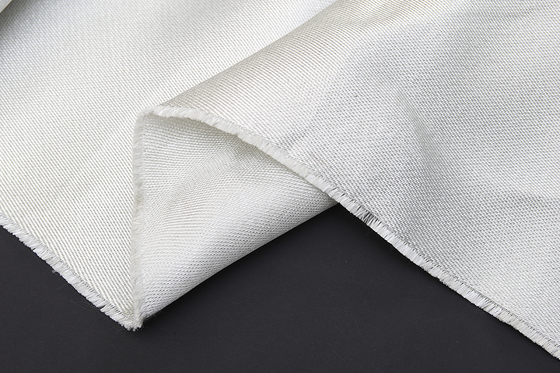

4. Detail Style 162 Fiberglass Cloth Image
5. Data Sheet for 162 Fiberglass Cloth
| Specification-162 | |||
| NO. | Technical Data | SI Units | US System |
| 1 | Weave Style | Plain | |
| 2 | Fabric Weight | 407g/m2 | 12oz/yd2 |
| 3 | Width (cm) | 107 127 157 207 254 | |
| 4 | Length (m) | 2500 | |
| 5 | Yarn Density | ||
| Ends Warp | 11/cm | 28/in | |
| Picks Weft | 6.29/cm | 16/in | |
| 6 | Yarn | ||
| Warp | EC7 22*2*5 | ECE 225 2/5 | |
| Weft | EC7 22*2*5 | ECE 225 2/5 | |
| 7 | Breaking Strength | ||
| Warp | 1138N/cm | 650lbf/in | |
| Weft | 700N/cm | 400lbf/in | |
| 8 | Thickness | 0.35mm | 13.8mils |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:
Our machine brands are DORNIER, TOYOTA, and our production capacity is about 1.8 million square meters per month. Our fiberglass E-glass cloth offers an excellent balance between cost and performance. Welcome to develop new products with us. The following items are our main products.
| NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
| 1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
| 2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
| 3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
| 4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
| 5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
| 6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
| 7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
| 8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
| 9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
| 10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
| 11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
| 12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
| 13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
| 14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
| 15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
| 16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
| 17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
| 18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
| 19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
| 20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
| 21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
| 22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
| 23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
| 24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
| 25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
| 26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
| 27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
| 28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage and Packing
