Product Details:
|
Product Name: | Style 1564 12.2 Oz Fiberglass Cloth | Type Of Yarns: | ECG 37 1/2 ECG 37 1/2 |
---|---|---|---|
Yarn Density: | 7.87*7.1/cm | Weave: | Plain Weave |
Thickness: | 0.38mm | Weight: | 420gsm |
Keywords: | Fiber Glass , Fiberglass Cloth , Fiberglass Woven Roving , Glass Fibre | Application: | Aerospace Cloth |
High Light: | 12.2 Oz E Fiberglass Cloth,Style 1564 Fiberglass Cloth,Style 1564 E Fiberglass Cloth |
Style 1564 12.2 Oz Fiberglass Cloth Finished In 627 Silane For Any Resin
1. Description
The row material of this fabric is E-glass fiber. It has good electrical performance. After being treated with a special silane coupling agent, the fabric can achieve a good combination with a thermosetting resin such as epoxy resin. And this result meets the requirement for heat resistance in the next process. In order to meet the requirements of multiple laminate in the CCL and FR4 industry, it has good dimensional stability.
Type:106,1080,2116,1506,7628,7630,7638.
2. Properties
Fiberglass cloth is an engineering material, which has excellent merit such as anti-burns, anti-corrosion, stable-size, heat-isolation, minimum elongated shrinkage, high intensity, this new material product has already covered many domains such as electric appliances, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention and environmental protection.
3. Fiberglass Cloth Application
Woven fiberglass cloths are very common for marine & composite construction and repair. Lightweight cloths tend to provide a smooth finish and are excellent for producing a waterproofing layer over wood or other surfaces when combined with the appropriate resin. Our Fiberglass cloth is woven in various configurations from five basic weave patterns, called plain, leno, satin, twill, and crowfoot. Fiberglass cloth is a strong and durable woven textile used mainly for PTFE coating, reinforcement for copper-clad laminates, composites, electrical insulation, mineral wool lamination, and Filtration markets, and so on.

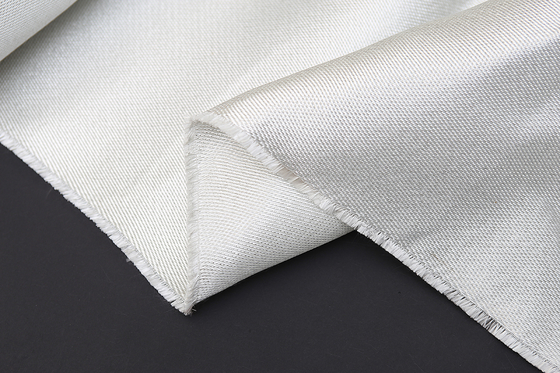

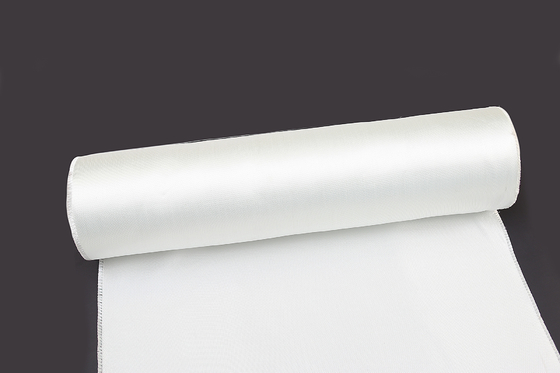

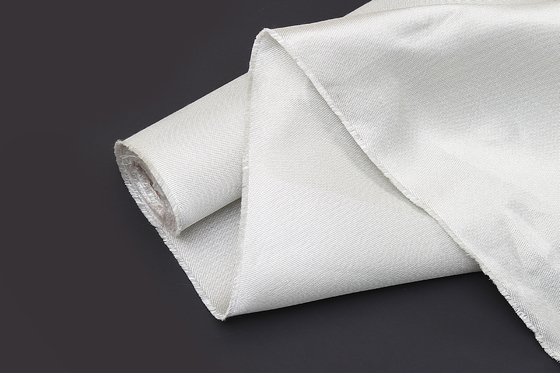

4. Detail Style 1564 Fiberglass Cloth Image
5. Data Sheet for 1564 Fiberglass Cloth
Specification-1564 | |||
NO. | Technical Data | SI Units | US System |
1 | Weave Style | Plain | |
2 | Fabric Weight | 420g/m2 | 12.4oz/yd2 |
3 | Width (cm) | 107 127 157 207 254 | |
4 | Length (m) | 2500 | |
5 | Yarn Density | ||
Ends Warp | 7.87/cm | 20/in | |
Picks Weft | 7.1/cm | 18/in | |
6 | Yarn | ||
Warp | EC9 134 | ECG 37 1/2 | |
Weft | EC9 134 | ECG 37 1/2 | |
7 | Breaking Strength | ||
Warp | 875N/cm | 500lbf/in | |
Weft | 788N/cm | 450lbf/in | |
8 | Thickness | 0.38mm | 15mils |
6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:
Our machine brands are DORNIER, TOYOTA, and our production capacity is about 1.8 million square meters per month. Our fiberglass E-glass cloth offers an excellent balance between cost and performance. Welcome to develop new products with us. The following items are our main products.
NO. | Style | Width, cm | Weight,g/m2 | Thickness, mm | Weaving type |
1 | 104 | 107 127 | 18.7±3.0 | 0.028 | Plain |
2 | 106 | 107 127 | 24.8±3.0 | 0.036 | Plain |
3 | 1070 | 107 127 | 33.4±3.0 | 0.055 | Plain |
4 | 1080 | 107 127 157 | 46.8±3.0 | 0.062 | Plain |
5 | 1280 | 107 127 157 | 53.6±3.0 | 0.064 | Plain |
6 | 2112 | 107 127 157 | 71.5±4.0 | 0.081 | Plain |
7 | 2113 | 107 127 157 | 79.3±4.0 | 0.080 | Plain |
8 | 3313 | 107 127 157 | 81.4±4.0 | 0.084 | Plain |
9 | 1674 | 107 127 157 207 254 | 98.0±4.0 | 0.100 | Plain |
10 | 2116 | 107 127 157 207 254 | 106.8±4.0 | 0.094 | Plain |
11 | 1165 | 107 127 157 207 254 | 121.0±8.8 | 0.110 | Plain |
12 | 1522 | 107 127 157 207 254 | 123.4±8.8 | 0.150 | Plain |
13 | 154【1211】 | 107 127 157 207 254 | 123.8±8.8 | 0.140 | Plain |
14 | 985 | 107 127 157 207 254 | 139.0±8.8 | 0.130 | Plain |
15 | 985A | 107 127 157 207 254 | 143.0±8.8 | 0.140 | Plain |
16 | 1652 | 107 127 157 207 254 | 140.0±8.8 | 0.114 | Plain |
17 | 1064 | 107 127 157 207 254 | 156.0±8.8 | 0.150 | Plain |
18 | 5430 | 107 127 157 207 254 | 180.0±8.8 | 0.153 | Plain |
19 | 7628L | 107 127 157 207 254 | 201.0±12.0 | 0.178 | 1/3 Twill |
20 | 7628T | 107 127 157 207 254 | 205.4±16.6 | 0.180 | Plain |
21 | 1528 | 107 127 157 207 254 | 211.9±16.6 | 0.165 | Plain |
22 | 7638H | 107 127 157 207 254 | 285.0±16.6 | 0.265 | Plain |
23 | 1142 | 107 127 157 207 254 | 290.4±16.6 | 0.279 | Plain |
24 | 7530 | 107 127 157 207 254 | 345.0±16.6 | 0.290 | Plain |
25 | 1523 | 107 127 157 207 254 | 392.0±16.6 | 0.340 | Plain |
26 | 162 | 107 127 157 207 254 | 400.0±20.0 | 0.381 | Plain |
27 | 1589 | 107 127 157 207 254 | 414.0±20.0 | 0.406 | Plain |
28 | 1564 | 107 127 157 207 254 | 420.4±20.0 | 0.380 | Plain |
7. Storage and Packing
