Product Details:
|
| Product Name: | Silicone Coated Fiberglass Sleeving | Roll Length: | 20 Meters |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Raw Material: | 9um E-glass,red Silicone Rubber |
| Operating Temperature: | -65- 260 ° C | Type: | Heat Insulation Sleeving |
| Application: | Hose And Cable Thermal Barriers | Flammability: | Fire Resistant |
| High Light: | Red Silicone Rubber Fiberglass Sleeving,20m heat insulation sleeve,High Temp Silicone Coated Fiberglass Sleeving |
||

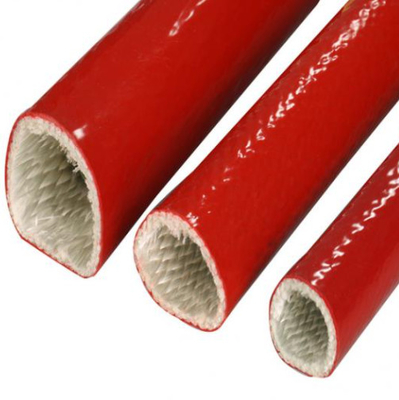

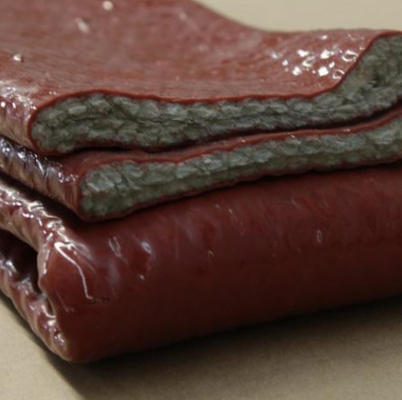

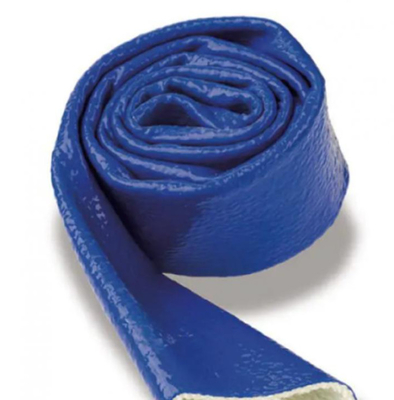

High-Temperature Red Silicone Coated Fiberglass Sleeving Hose and Cable
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
Made of 9um E fiberglass yarn coated with red silicone rubber.
High-temperature resistance up to 260C; and resistance to most chemical solvents
Used extensively as a conduit, hose, and cable protection sleeve, providing an excellent thermal barrier.
Good abrasion resistance is useful in heavy-duty applications where excellent mechanical and electrical properties are required.
Good mechanical properties and high dielectric strength make it an ideal material for applications such as transformer lead protection, motor coil leads, component isolation, and power wiring.
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
It is Flame retardant, insulation, heat insulation, heat preservation, moisture-proof, noise reduction.
High-temperature resistance, electric insulation, corrosion resistance, etc.
Application:
Wiring, Hose and Cable Heat & Flame Protection
Insulation/Heat Containment

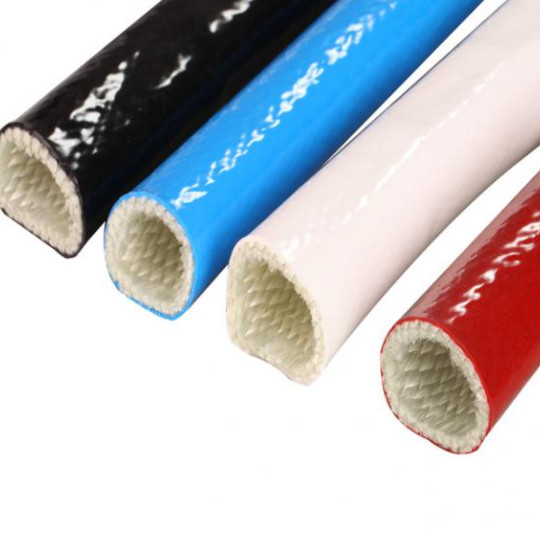

The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
