Product Details:
|
| Product Name: | Heat Resistant Hose And Cable Protective Pyrojacket Fire Sleeve | Size: | 6-150mm |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Name: | Hose Fire Sleeve |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Impede Heat Radiation Of Flame |
| High Light: | Silicone Coated Fiberglass Heat Sleeve,66ft wire heating sleeve,Fiberglass Heat Sleeve 15mm ID |
||

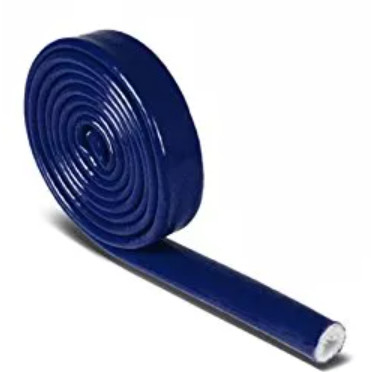

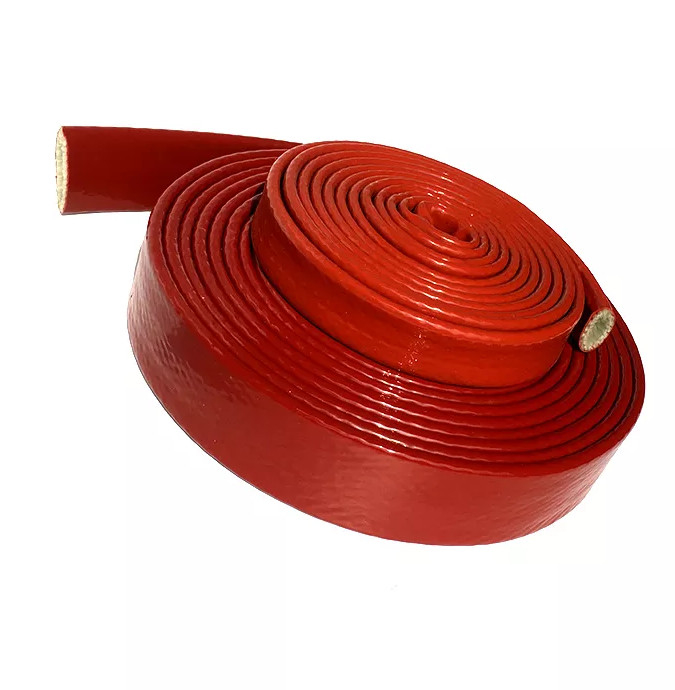

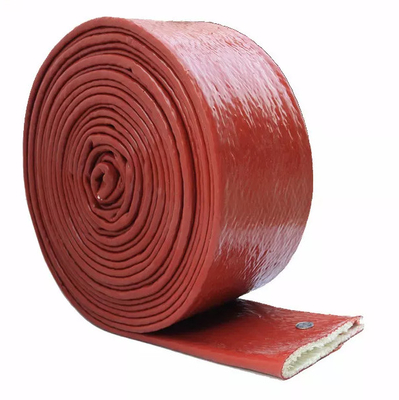

20m 66ft Silicone Coated Fiberglass Heat Sleeve 15mm ID Used To Protect Fuel Lines
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
We coat an extra thick special formulation of silicone rubber on our texturized fiberglass sleeves. It can protect industrial hoses and lines from molten metals, slag, welding splatter, electrical or grinding sparks, and contamination. It also provides protection from ozone, UV, and abrasion. The standard color of the coating is red-oxide, but custom colors such as blue, grey, black, yellow, and green are available
| Inner diameter | 10mm-115mm |
| Color | Red, black, other colors can be made according to customer's need, nylon fastening optional color: white or black |
| Work temperature | Can used continuously at - 75 ° C to 260 ° C, short moment resistance can be up to 1650 ° C |
| Nominal voltage | 7kv--25 kV. |
| Product properties | Fire prevention, flame retardant, heat insulation, insulation, anti-aging, prevent splash |
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
Advanced production equipment
ISO 14000 / ISO 9000 / Quality certificate
Strict quality inspection, Strong R&D team
Environmental friendly without pollution
10 years manufacturing experience, strong and experienced export team
Application:
1. Fire-proof sleeving is used to protect fuel lines, hydraulic and oil lines from heat and to prolong the life of wiring and hoses in case of a fire
2. Fire-proof sleeving is mainly used for cable insulation protection in high-temperature places such as steel plants
3. Fire protection pipes are widely used in high-temperature areas of electric power, chemical industry, metallurgy, shipbuilding, machinery manufacturing, and other industries
Detail Images
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
