Product Details:
|
| Product Name: | Heat Resistant Hose And Cable Protective Pyrojacket Fire Sleeve | Size: | 6-150mm |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Name: | Hose Fire Sleeve |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Impede Heat Radiation Of Flame |
| High Light: | Braided Silicone Rubber Fiberglass Sleeving,6mm Hose fire sleeve,Fire Proof Silicone Rubber Fiberglass Sleeving |
||
Economic Silicone Rubber Fiberglass Braided Fire Sleeve
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
Economic Grade Fire Sleeve withstands repeated exposures to molten steel, molten aluminum and molten glass up to 3000°F (1650°C). The heavy coating of our proprietary iron oxide red silicone rubber compound sheds molten metal splash immediately, so very little heat transfer occurs.
| PRODUCT PROFILE | |
| Continuous Operating Temperature | 260°C/500°F |
| Temperature endurance | 500°C |
| Off-self time | 10 s |
| Horizontal flame test | ≤ the 30S |
| Max short term exposure | 1300°C |
| Design-Build | Braided fiberglass substrated coated with silicone rubber |
| Reactions | Resists most acids & water Unaffected by solvents & fire |
| Design Capabilities | Excellent thermal protection; very flexible; custom silicone thickness available |
| Size/Size Range | 10 mm -- 100mm |
| Breakdown Voltage | When normal condition alternating current 50HZ, can reach 10,000V~12,000V |
| Nominal Wall Thickness | 1mm -- 5mm (1/25" -- 1/5 ") |
| Flexibility | Outstanding |
| Durability | Outstanding |
| Color | Custom colors are available by special order.(Red/Black/Sliver) |
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
1. Impede heat radiation of flame and sheds molten spatter of metals and glass.
2. Resistant to slag and resin build-up, protects against abrasion, solvents, and corrosive chemicals.
3. Protect the operator from burning the hot pipe.
4. Moisture-proof, waterproof, resistant to oil and pollution. 5. Impede heat lost and favor to saving energy.
Application:
1, widely used in steelworks, smelting plants, glassworks, rail transit, and another high-temperature environment.
2, Applied to the hydraulic hose, cable, metal hose, corrugated tubing, and all kinds of pipeline for high-temperature protection.

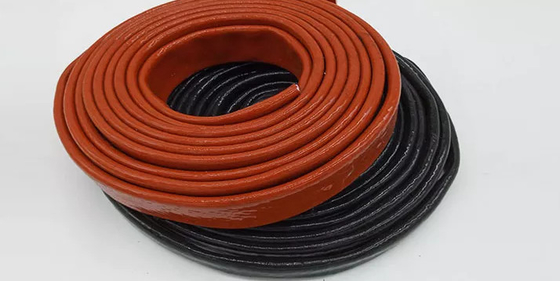

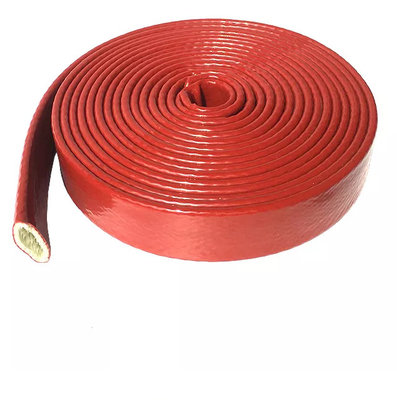

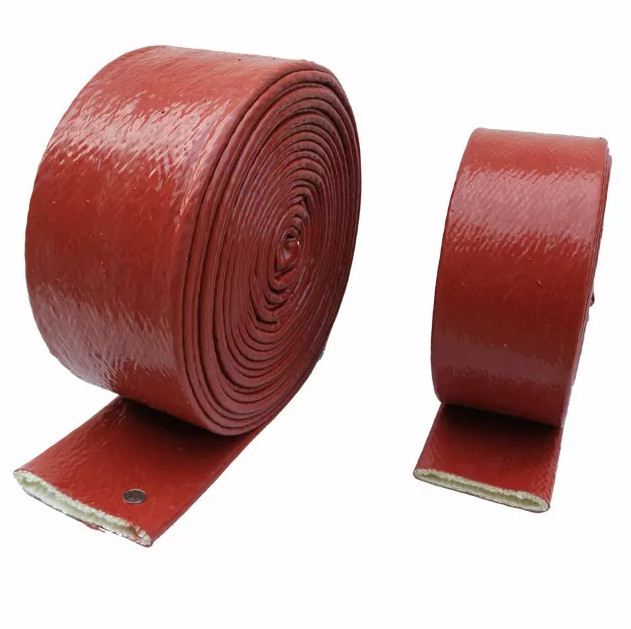

Detail Images
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
