Product Details:
|
| Product Name: | Textured Fiberglass Fabric Cloth | Weight: | 288-1100g/m2, 288g/m2--1100g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Alkali Contect: | Alkali Free |
| Material: | 100% E Fiberglass | Good Features: | High Temperature Resistance,low Thermal Conductivity |
| Color: | White Yellow | Main Application: | Thermal Insulation And Heat Protection |
| High Light: | heat protection Texturized Fiberglass Cloth,HT2025 Texturized Fiberglass Fabric,0.8mm Texturized Fiberglass Cloth |
||
Texturized Fiberglass Fabric Cloth For Welding Protection
Fiberglass Description
Texturized fiberglass fabrics are made from continuous fiberglass yarns through a special high-pressure apparatus. Because the yarn contains a lot of air, it has more thermal insulation properties than untreated yarn. The stretched fiberglass fabric has better thermal insulation and filling ability, this structure has better thermal conductivity; high dust holding capacity, high filterability, these are all affected by the fabric structure. It has a wide range of application values for industrial heat generation and safety fire protection.
Technique Data Sheets
| Product Name | 2025 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 624gsm | ||
| Yarn Density Treads/cm | Warp Density | 8 | |
| Weft Density | 5.7 | ||
| Yarn Type | Warp | ET6-408 T 430 | |
| Weft | ET6-408 T 430 | ||
| Color | Light Yellow | ||
| Breaking Strength Treads/cm | Warp Density | 2125N | |
| Weft Density | 1820N | ||
Main Application
Thermal insulation and heat protection
Removable pads and welding blankets
Expansion joints and piping
Basic material for coating, impregnating and laminating
Features
Resistant to ozone, oxygen, light and climate change.
High strength, high modulus, low shrink, no deformation.
Incombustible. heat insulation, heat preservation.
Higher than working temperature, still keep residual strength.
Corrosion resistance.
Electrical insulation
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

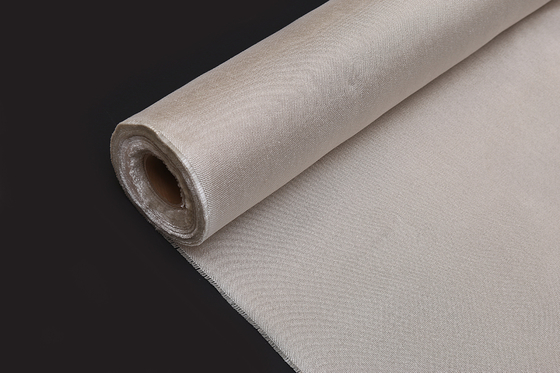

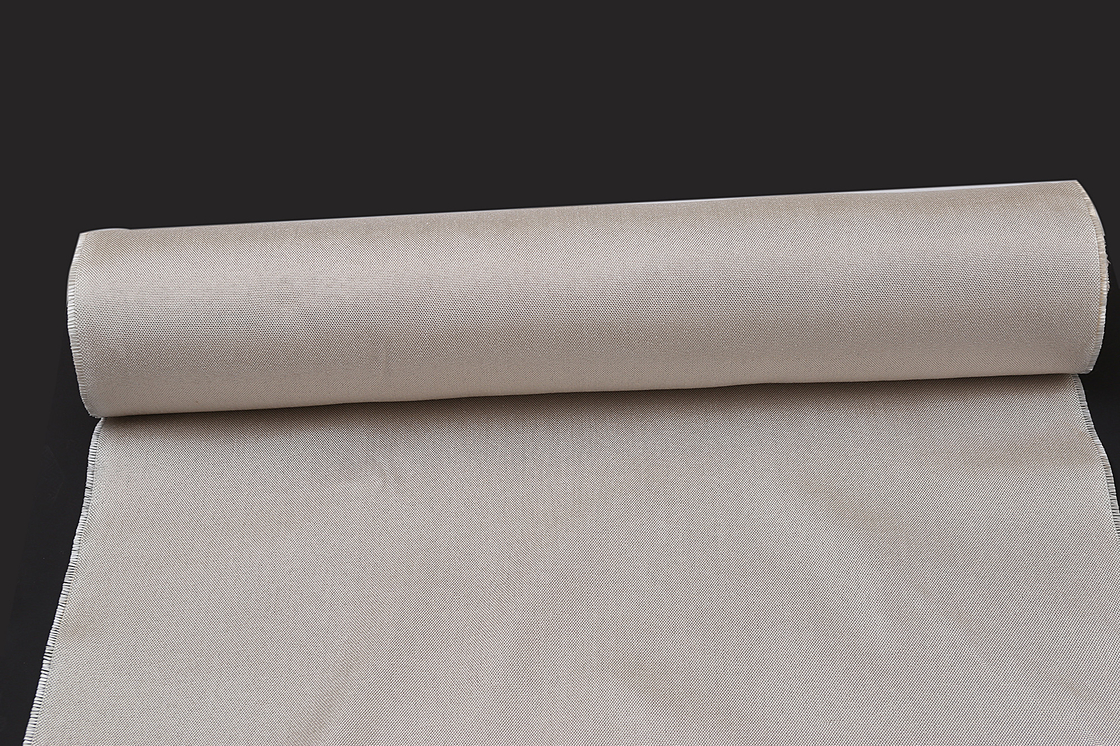

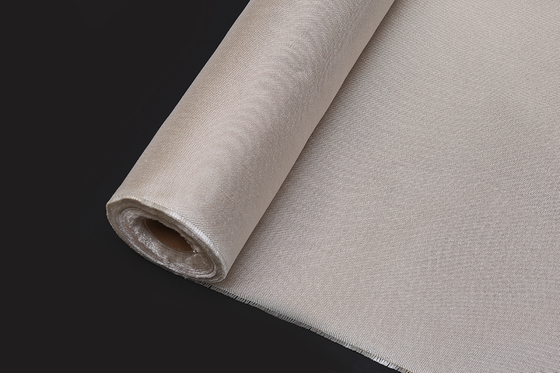

Detail Product Images
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the product quality and delivery time.
High-quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory test
Different Sized of materials can be provided according to customer needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
