Product Details:
|
| Product Name: | Textured Fiberglass Fabric Cloth | Weight: | 288-1100g/m2, 288g/m2--1100g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Alkali Contect: | Alkali Free |
| Material: | 100% E Fiberglass | Good Features: | High Temperature Resistance,low Thermal Conductivity |
| Color: | White Yellow | Main Application: | Thermal Insulation And Heat Protection |
| High Light: | Heat Insulation Texturized Fiberglass Cloth,Plain Woven fireproof fiberglass fabric,Alkali Free Texturized Fiberglass Cloth |
||

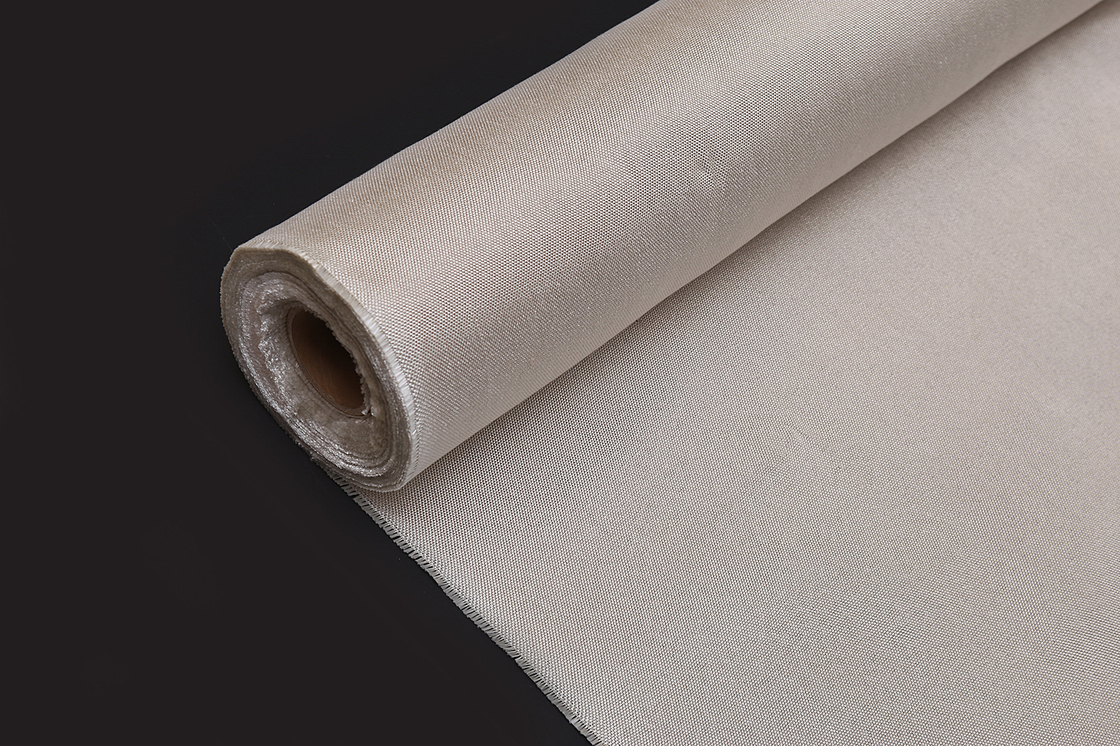

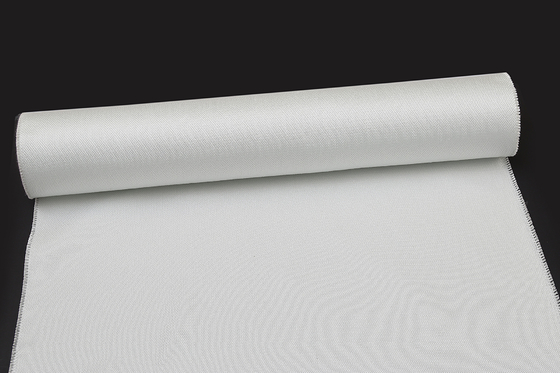

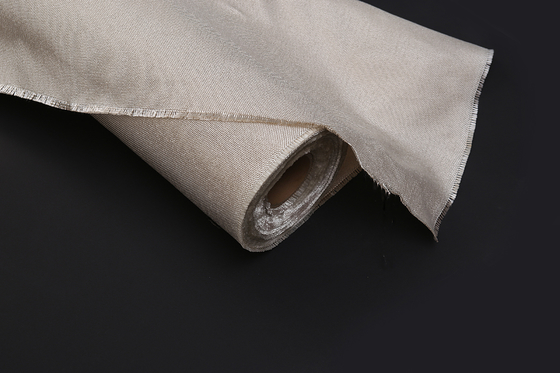

Heat Insulation High-Temperature Resistant Fireproof Fiberglass Fabric
Fiberglass Description
Texturized fiberglass fabric is made of continuous fiberglass yarns through a unique instrument with high pressure. Because of a lot of air in the yarns, so there are more heat preservation and heat insulation properties than untreated yarns.
Textured fiberglass fabrics have better heat insulation and filling-ability, this construction has the better capability for thermal conductivity, high dust accommodation, and the construction of the fabric influences high filterability and. It is valued over a wide range for heat production and safety fireproof of industry.
Technique Data Sheets
| Product Name | 2025 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 624gsm | ||
| Yarn Density Treads/cm | Warp Density | 8 | |
| Weft Density | 5.7 | ||
| Yarn Type | Warp | ET6-408 T 430 | |
| Weft | ET6-408 T 430 | ||
| Color | Light Yellow | ||
| Breaking Strength Threads/cm | Warp Density | 2125N | |
| Weft Density | 1820N | ||
Main Application
Thermal insulation and heat protection
Expansion joints and piping
Features
Resistant to ozone, oxygen, light, and climate change.
High strength, high modulus, low shrink, no deformation.
Incombustible. heat insulation, heat preservation.
Higher than working temperature, still keep residual strength.
Corrosion resistance.
Electrical insulation
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

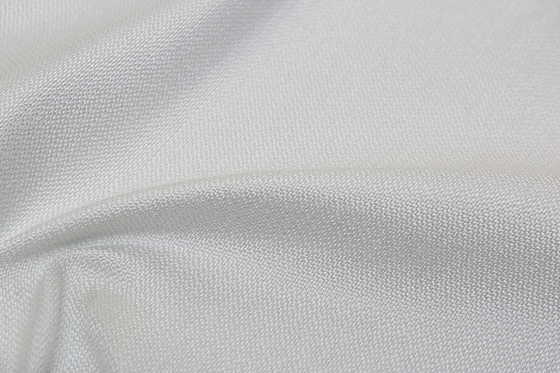

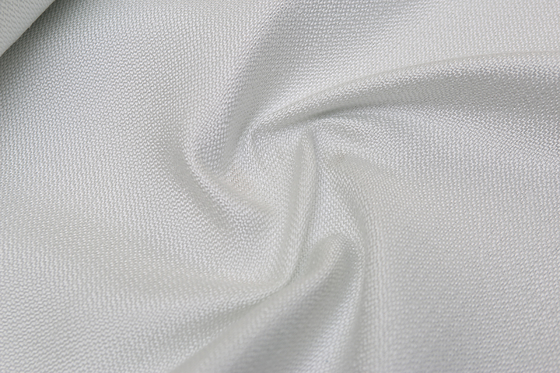

Detail Product Images
Packing
Why Choose Us?
Your inquiry will be replied to within 24hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
